Brakes	TEKTRO, MD-M280, Mechanical Disc Brake
Frame	26" 6061 alloy, MTB hardtail, O.L.D. 141, 160mm post mount
Drivetrain	SHIMANO, TOURNEY, RD-TY300, 7-speed
Shift levers	SHIMANO, ST-EF41-7R, EZ-FIRE PLUS
Front derailleur	SHIMANO, TOURNEY, FD-TY500-TS3, TOP-SWING, DUAL-PULL
Fork	SR SUNTOUR, XCE28 DS, 100mm
Bottom bracket	R RAYMON Components, JIS 4-square
Crankset	SHIMANO, FC-TY301, Length: 170mm, Size: 42x34x24T
Sprocket	SHIMANO, CS-HG200-7, 12-32T
Drive	KMC, HV-500
Headset	R RAYMON Components, headset, 1 1/8"
Handlebar	R RAYMON Components, Width: 680mm, Bar bore: Ø31.8mm
Grips	R RAYMON Components, Grips, Width: 132mm
Stem	R RAYMON Components, Alloy Stem, Length: 75mm, Angle: ±8°, BarBore: Ø31.8mm
Saddle	R RAYMON Components, Saddle
Seatpost	R RAYMON Components, Ridgid seatpost, Length: 300mm
Seat clamp	R RAYMON Components, Seatclamp, Ø34.9mm
Wheelset	RIM: RODI, AIRLINE 1, 26" (559x19C) HUB: SHIMANO, DH-3D32-QR, 6V 3.0W, HUB DYNAMO; RIM: RODI, AIRLINE 1, 26" (559x19C) HUB: R RAYMON Components, Alloy, Quick Release
Rims	RODI, AIRLINE 1, 26" (559x19C)
Tires	KENDA, ATB, Reflex, 26x2.0
Pedals	R RAYMON Components, Plastic Pedal
Front light	HERRMANS, MR GO Dynamo
Rear light	HERRMANS, H-Trace Mini, parking light, LED, StVZO-approved
Mudguards	R RAYMON Components, Fender Set

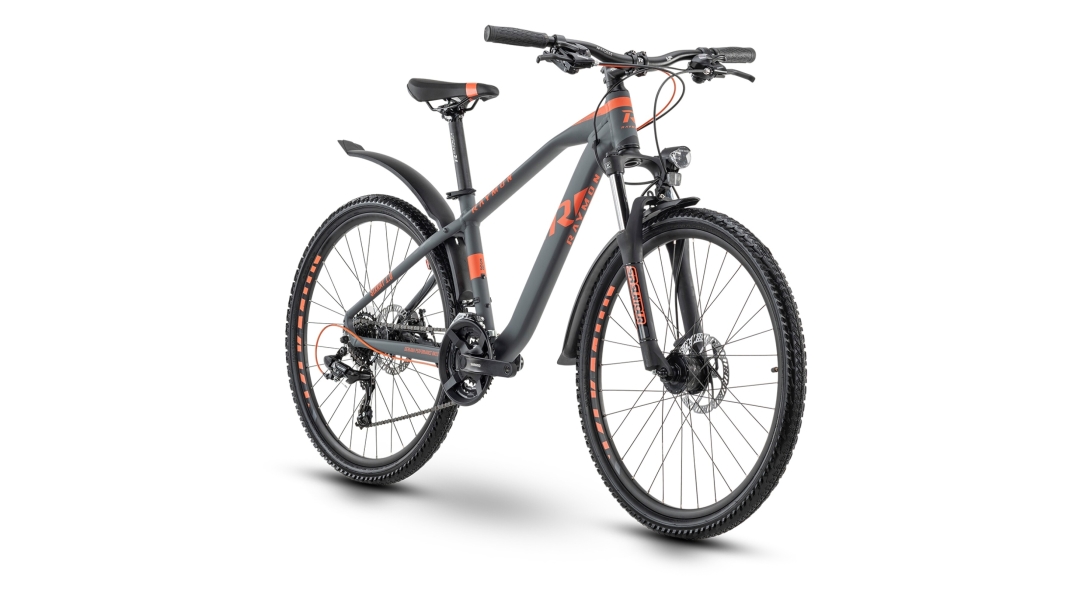

R Raymon SixRay 1.0 Street
