Rear brakes	Tektro HD-M275, 2-piston, hydraulic disc brake
Front brakes	Tektro HD-M275, 2-piston, hydraulic disc brake
Brakes	Front: Tektro HD-M275, 2-piston, hydraulic disc brake; Rear: Tektro HD-M275, 2-piston, hydraulic disc brake
Front brake disc	Tektro TR24, 160 mm, 6-hole
Rear brake disc	Tektro TR24, 160 mm, 6-hole
Frame	26", 6061 alloy
Drivetrain	Shimano Tourney TX, RD-TX800, 7-speed
Shift levers	Shimano SL-M315, Rapidfire Plus
Front derailleur	Shimano Tourney, FD-TY500, Top-Swing
Fork	SR SUNTOUR XCE28, suspension, 80 mm
Bottom bracket	Feimin, BSA68, JIS, 122.5 mm
Crankset	Shimano Tourney, FC-TY301, 42/34/24 T
Sprocket	Shimano CS-HG200, 12-32T
Drive	KMC HV-500
Headset	R Raymon ZS44/ZS44
Handlebar	R Raymon Riser 31.8 mm, 680 mm, Sweep: 6 °, Rise: 15 mm
Grips	R Raymon MTB, screw-on grips
Stem	R Raymon 31.8, 7 °, Ahead
Saddle	R Raymon MTB
Seat clamp	R Raymon 34.9, quick release
Wheelset	26"/559mm
Rims	Ryde Disc19, eyeleted
Tires	Kenda K832, 54-559, 26x2.1
Front hub	R Raymon DB600F, 6-hole, 100 mm, quick-release axle
Rear hub	R Raymon DB600R, 6-hole, 9x135 mm, quick-release axle, HG
Pedals	R Raymon, plastic

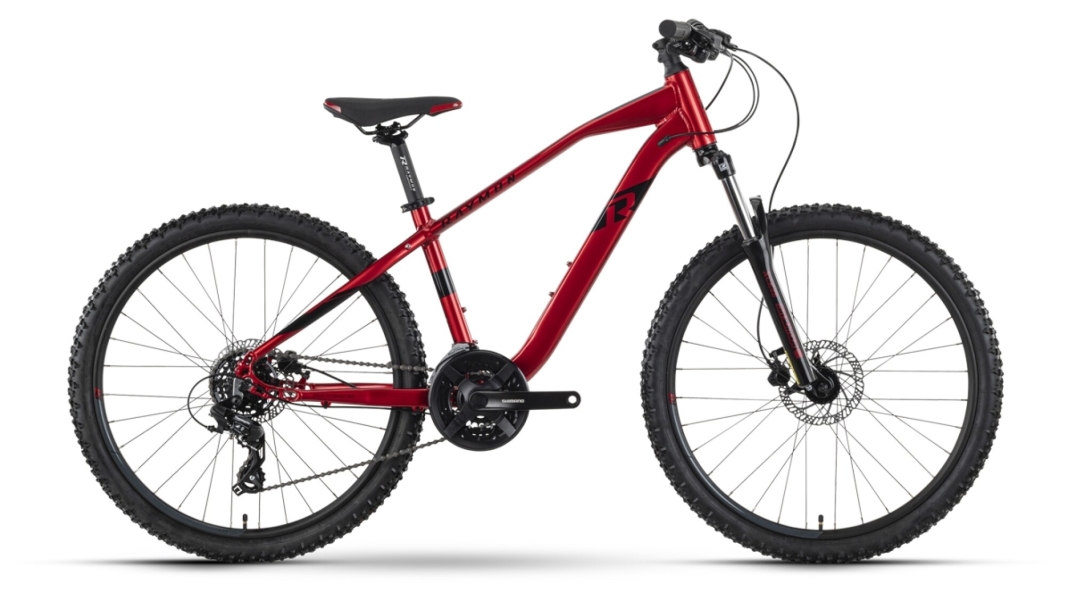

R Raymon HardRay 2.0 2022
