Brakes	SHIMANO, BL-MT501/BR-MT520, Hydraulic Disc Brake Set
Frame	27.5" 6061 alloy, all-mountain, full suspension 4-link, integrated battery, O.L.D. 148 Boost, 180mm post mount
Drivetrain	SRAM, NX EAGLE, 12-speed
Shift levers	SRAM, SX EAGLE, trigger shifter, single click
Fork	ROCK SHOX, 35 Gold, RL Crown Adjust, MXL LITE BOOST™ 15x110mm axle, DEBONAIR, E-MTB, 150mm
Rear shock	ROCK SHOX, Deluxe Select+, Debonair 2, 230×57.5
Crankset	FSA, CK-746-2/JIS, Alloy E-bike JIS Crank, Length: 165mm
Sprocket	SRAM, PG-1230 Eagle, 11-50T
Drive	SRAM, SX EAGLE
Headset	R RAYMON Components, Headset, 1-1/8"–1.5" TAPERED
Handlebar	R RAYMON Components, Width: 760mm, Rise: 30mm, Bar bore: Ø31.8mm
Grips	R RAYMON Components, Grips, Width: 132mm
Stem	R RAYMON Components, Alloy Stem, Length: 45mm, Angle: 0°, BarBore: Ø31.8mm
Saddle	R RAYMON Components, Saddle
Seatpost	R RAYMON Components, dropper post, length: 420 mm, travel: 125 mm
Seat clamp	R RAYMON Components, Seatclamp, Ø34.9mm
Wheelset	RIM: MACH1, TRUCKY 30, 27.5" (584x30C) HUB: R RAYMON Components, 110x15mm, thru-axle, Boost; RIM: MACH1, TRUCKY 30, 27.5" (584x30C) HUB: R RAYMON Components, Alloy, 12x48mm, Boost
Rims	MACH1, TRUCKY 30, 27.5" (584x30C)
Tires	SCHWALBE, NOBBY NIC, Performance Addix, 27.5x2.60 (65-584)
Pedals	R RAYMON Components, Pedal
Motor manufacturer / model	YAMAHA, PW-X2, 80 Nm
Display	YAMAHA, Display A, 1.7-inch LCD
Battery	Simplo, TP630, 630Wh, internal battery

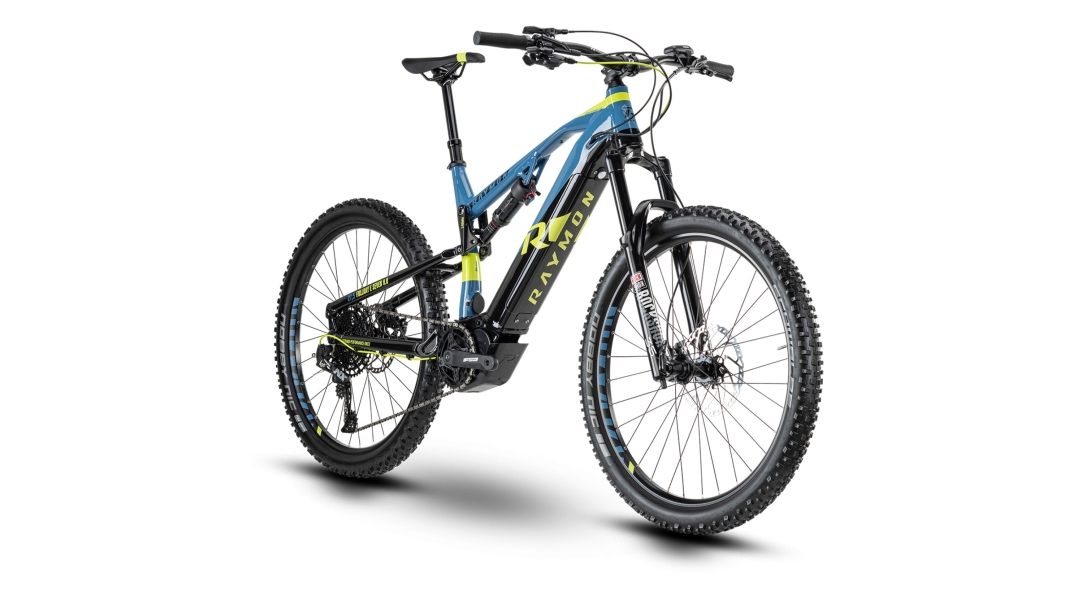

R Raymon FullRay E-Seven 9.0
