Brakes	v:TEKTRO, Gemini SL, HD-M520 set, 180 mm, hydraulic disc brake\|h:TEKTRO, Gemini SL, HD-M520 set, 180 mm, hydraulic disc brake
Frame	Material: 6061 aluminium, travel: 75 mm, wheel size: 27.5+"Material: 6061 aluminium, travel: 75 mm, wheel size: 27.5+"
Drivetrain	SRAM, RD-NX, 11-speed
Shift levers	SRAM, SL-NX-11SP-TRIGGER
Fork	SR Suntour, SF18 MOBIE25-AIR-LOR, thru-axle ø15-100, 75 mm, steerer tube 1 1/8" – 1 1/2" tapered, air, manual lockout
Crankset	FSA, CK-745, length: 170 mm
Sprocket	SRAM, PG-1130, 11-42T, gears: 11
Drive	SRAM, POWERCHAIN 1110
Headset	R RAYMON Components, Headset, 1-1/8"–1.5" TAPERED
Handlebar	R RAYMON Components Trekking Handlebar, rise: 24 mm, back sweep: 9°, up sweep: 5°, width: 710 mm
Grips	R RAYMON Components, Grips, Width: 132mm
Stem	R_Raymon Components Trekking Stem, Ahead, 8°, ⌀ 31.8 mm, length: 70 mm
Saddle	R RAYMON Components, Saddle
Seatpost	R_Raymon Components City Seatpost, Suspension, ⌀ 27.2 mm
Seat clamp	R_Raymon Components, quick-release skewers
Wheelset	Ryde TL35, Formula DC-511, Formula DC-2641
Tires	SCHWALBE, SUPER MOTO X, 62-584, 27.5+", puncture protection
Pedals	R RAYMON Components, Pedal
Front light	TRELOCK, Veo 50, 50 lux, LED, StVZO-approved
Rear light	AXA BASTA, Slim Steady, parking light, LED, StVZO-approved
Mudguards	RP, SP-60B-700C-END, 60 mm
Kickstand	Massload, TD1358A, side stand, adjustable
Rack	STANDWELL, SW-KM058S
Motor manufacturer / model	YAMAHA, PW-X, 80 Nm
Display	YAMAHA, Display A, 1.7-inch LCD
Battery	Simplo, Linkage, 500 Wh, internal battery

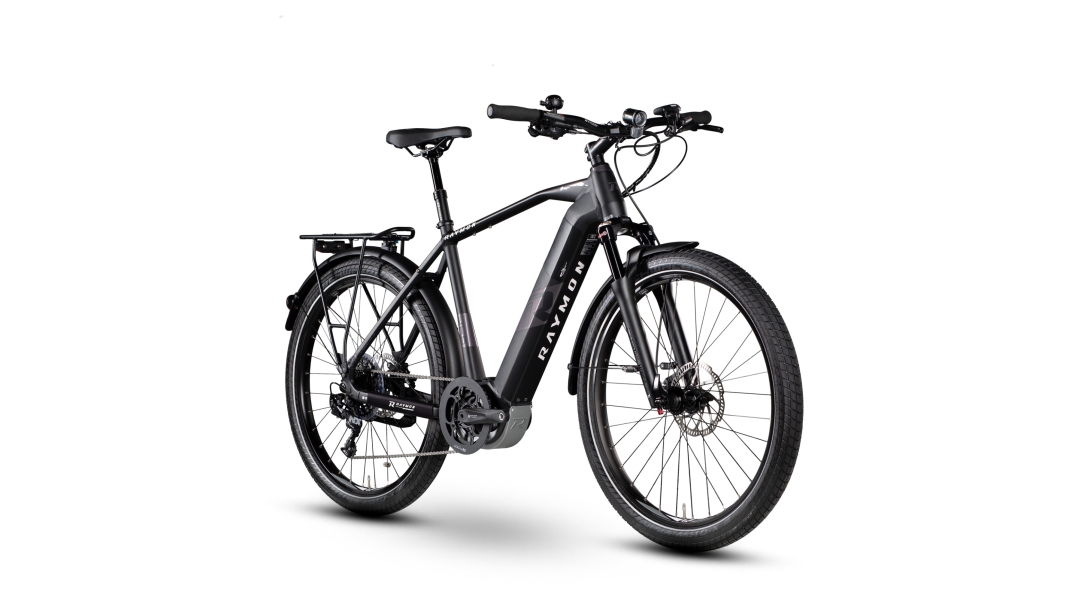

R Raymon E-TourRay LTD 1.0
