Brakes	TEKTRO, HD-M500, Hydraulic Disc Brake
Frame	27.5" 6061 alloy, Cross Wave, integrated battery, O.L.D 141, 180mm post mount
Drivetrain	SHIMANO, XT, RD-M8100, SGS, 12-speed
Shift levers	SHIMANO, SLX, SL-M7100-R, RAPIDFIRE PLUS
Fork	SR SUNTOUR, XCR34 AIR Boost, 80mm
Crankset	FSA, CK-220/JIS, Alloy E-bike JIS Crank, Length: 170mm
Sprocket	SHIMANO, SLX, CS-M7100-12, 10-51T
Drive	SHIMANO, SLX, CN-M7100
Headset	R RAYMON Components, Headset, 1-1/8"–1.5" TAPERED
Handlebar	R RAYMON Components, Width: 700mm, Rise: 18mm, Bar bore: Ø31.8mm
Grips	R RAYMON Components, Grips, Width: 138mm
Stem	R RAYMON Components, Alloy Stem, Length: 90mm, Angle: 0°, BarBore: Ø31.8mm
Saddle	R RAYMON Components, Saddle
Seatpost	R RAYMON Components, dropper post, length: 403mm, travel: 120mm
Seat clamp	R RAYMON Components, Seatclamp, Ø34.9mm
Wheelset	RIM: MACH1, TRUCKY 30, 27.5" (584x30C) HUB: SHIMANO, HB-MT400-B, 110x15mm Boost, thru-axle, Centre Lock; RIM: MACH1, TRUCKY 30, 27.5" (584x30C) HUB: SHIMANO, FH-MT500-B, Centre Lock, Microspline
Rims	MACH1, TRUCKY 30, 27.5" (584x30C)
Tires	SCHWALBE, SMART SAM K-GUARD, 27.5x2.25 (57-584)
Pedals	R RAYMON Components, Pedal
Front light	TRELOCK, VEO 20, 20LUX, LED, StVZO-approved
Rear light	HERRMANS, H-Cargo, Dynamo, LED, StVZO-approved
Mudguards	SKS, B-65, 28" (700C)
Kickstand	R RAYMON Components, Kickstand, 40mm, Adjustable
Rack	R RAYMON Components, Carrier, Spring Clamp, max. 25kg, CarryMore II
Motor manufacturer / model	YAMAHA, PW-ST, 70 Nm
Display	YAMAHA, Display C, Multifunction, 2.8" TFT, Bluetooth navigation via Komoot® and Wellfit e-Kit®
Battery	Simplo, TP630, 630Wh, internal battery

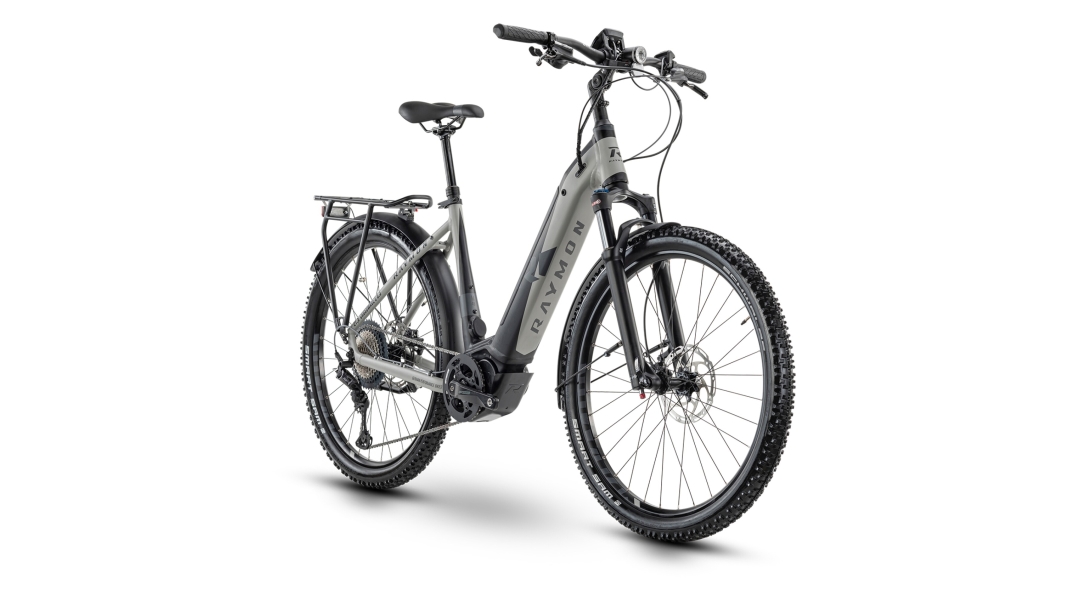

R Raymon CrossRay E 8.5 Street
