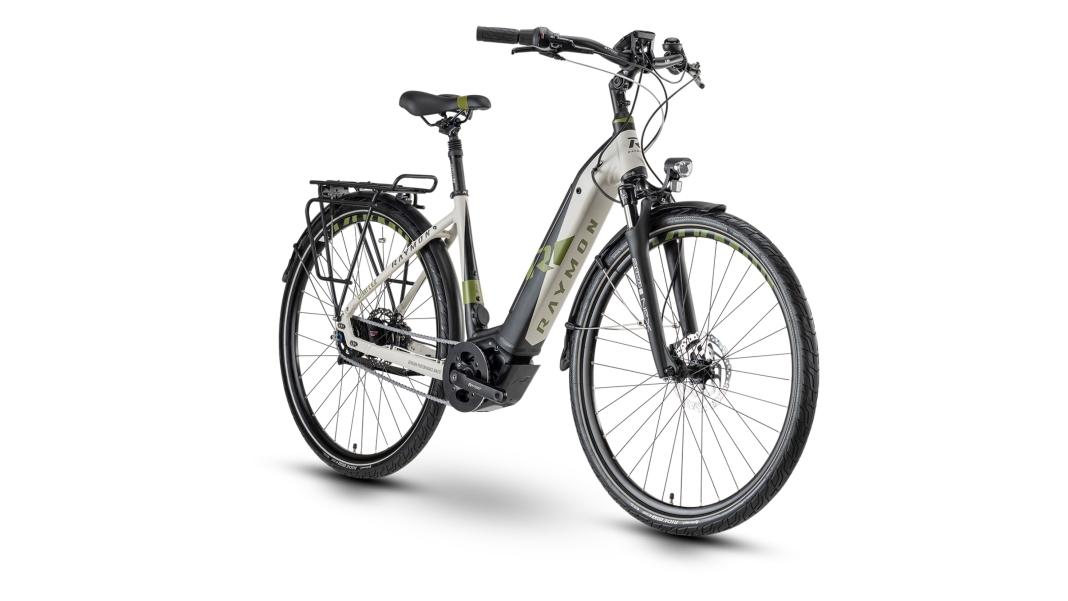

R Raymon CityRay E 6.0
Model: CityRay E 6.0
Model year: 2020
Price: 2.899,00 €
Category: Citybike
Weight: 26 kg
Permissible total weight: 130 kg
Tests & Reviews
Equipment
| Brakes | SHIMANO, BL-MT201/BR-MT200, Hydraulic Disc Brake Set |
| Frame | 28" 6061 alloy, Wave, integrated battery, O.L.D. 141, 160mm post mount |
| Drivetrain | SHIMANO, NEXUS, SG-C7000-5D, 5-speed |
| Shift levers | SHIMANO, NEXUS, SL-C7000-5, REVO SHIFTER |
| Fork | SR SUNTOUR, NEXE25 DS, 50mm |
| Crankset | R RAYMON Components, Alloy Crank, JIS, Length: 170mm |
| Sprocket | SHIMANO, SPROCKET FOR INTERNAL HUB, 19T |
| Drive | KMC, Z1wide EPT |
| Headset | R RAYMON Components, Headset, 1-1/8"–1.5" TAPERED |
| Handlebar | R RAYMON Components, Width: 640 mm, Rise: 44 mm, Bar bore: Ø31.8 mm |
| Grips | R RAYMON Components, Grips, Width: 138mm |
| Stem | R RAYMON Components, Alloy Stem, Length: 90mm, Angle: 0°, BarBore: Ø31.8mm |
| Saddle | R RAYMON Components, Saddle |
| Seatpost | R RAYMON Components, Suspension Seatpost, Length: 350mm |
| Seat clamp | R RAYMON Components, Seatclamp, Ø34.9mm |
| Wheelset | RIM: MACH1, MC40-E-BLK, 28" (622x25C) HUB: SHIMANO, HB-TX505, Centre Lock, 100x15mm, QR; RIM: MACH1, MC40-E-BLK, 28" (622x25C) HUB: SHIMANO, NEXUS, SG-C7000-5D, 5-speed |
| Rims | MACH1, MC40-E-BLK, 28" (622x25C) |
| Tires | CONTINENTAL, Ride City, Wire Reflex, PunctureProTection, 700Cx47 |
| Pedals | R RAYMON Components, Pedal |
| Front light | HERRMANS, MR-GO E-Bike Standard Bracket Front Light |
| Rear light | HERRMANS, H-Trace, LED, StVZO-approved |
| Mudguards | ORION, mudguard set, 28" |
| Kickstand | R RAYMON Components, Kickstand, 18mm, Adjustable |
| Rack | R RAYMON Components, Carrier, Spring Clamp, max. 25kg |
| Motor manufacturer / model | YAMAHA, PW-TE, 60 Nm |
| Display | YAMAHA, Display C, Multifunction, 2.8" TFT, Bluetooth navigation via Komoot® and Wellfit e-Kit® |
| Battery | YAMAHA, ML400, 400 Wh, internal battery |
