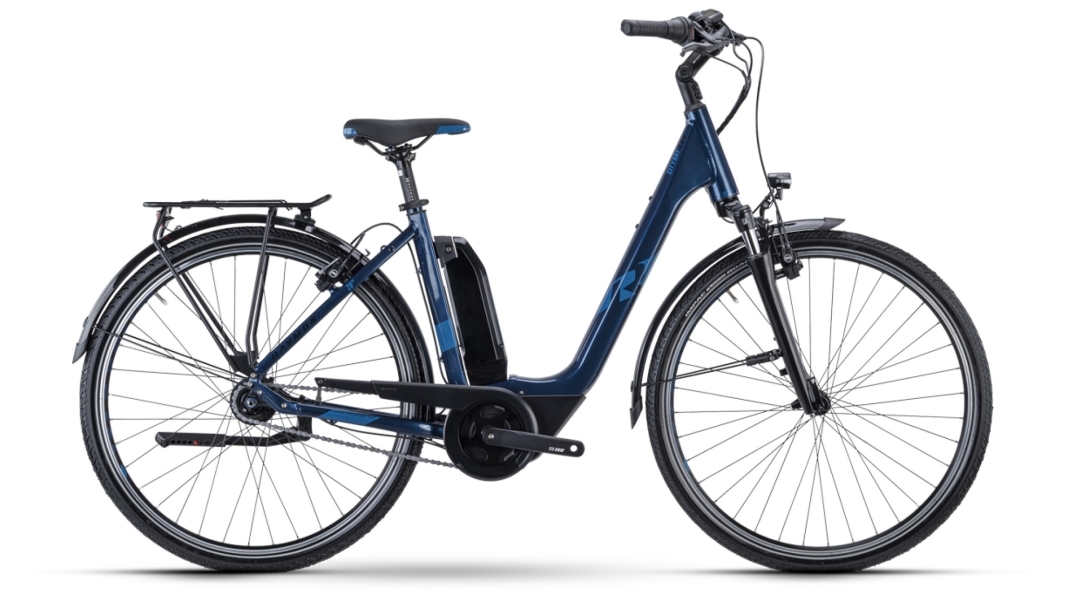

CityRay E 2.0 CB 500 2021/22


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Profile not fully set up

Comments

My Bookmarks

My Comments

My Profile

Which bike is right for me?

Helps us estimate the right stability and components.

How often do you ride?

A motor helps when you're riding long distances or tackling climbs.

Should a motor support you?

Helps us find bikes within your budget.

How much do you want to spend?

Tell us what you enjoy – we'll find the right bike.

Purpose – how do you want to ride?

Range determines battery size on e-bikes.

How long are your rides?

Affects tyres and geometry.

What terrain do you ride on?

Bikefinder: Which bike is right for you?

Rear brakes	Magura HS11 hydraulic disc brake, coaster brake
Front brakes	Magura HS11, hydraulic rim brake
Brakes	Magura HS11, hydraulic rim brake
Frame	28", 6061 alloy, external battery
Drivetrain	Shimano Nexus SG-C3001-7C, 7-S
Shift levers	Shimano Nexus, SL-C3000, Revoshift
Fork	SR SUNTOUR NEX-E25, suspension fork, 50 mm
Bottom bracket	R Raymon, 38 T
Crankset	Wheeltop, Alloy, JIS
Sprocket	Shimano SM-Gear-19 T
Drive	KMC Z1 Wide
Headset	R Raymon ZS44/ZS56
Handlebar	R Raymon Ergo 31.8 mm, 640 mm, sweep: 35°, rise: 25 mm
Grips	R Raymon Ergo, screw-type handles
Stem	R Raymon 31.8, adjustable
Saddle	R Raymon Ergo
Seatpost	R Raymon, 30.9 mm, 350 mm, patent
Seat clamp	R Raymon 34.9, quick release
Wheelset	28"/622mm, 28"/635mm
Rims	Mach1-670E, eyelets, tubeless
Tires	Impac Roadpac, 47-622, 28x1.75
Front hub	R Raymon MA612F, 9 x 100 mm
Rear hub	Shimano Nexus, SG-3001, SG-C6001-8
Pedals	R Raymon, aluminium
Front light	AXA Compactline 20, 20 lx
Rear light	AXA Blueline E
Mudguards	Eurofender Tempo
Kickstand	Ursus MOOI, rear kickstand KSA18, adjustable
Rack	R Raymon, spring flap
Motor manufacturer / model	Yamaha PW-CE, 250 W, 50 Nm
Display	Yamaha Display A, LCD display
Control unit	Integrated in the display
Battery	Yamaha EX500, 500 Wh, 36 V
Battery capacity (Wh)	500
Charger	Yamaha quick charger, 4 A
