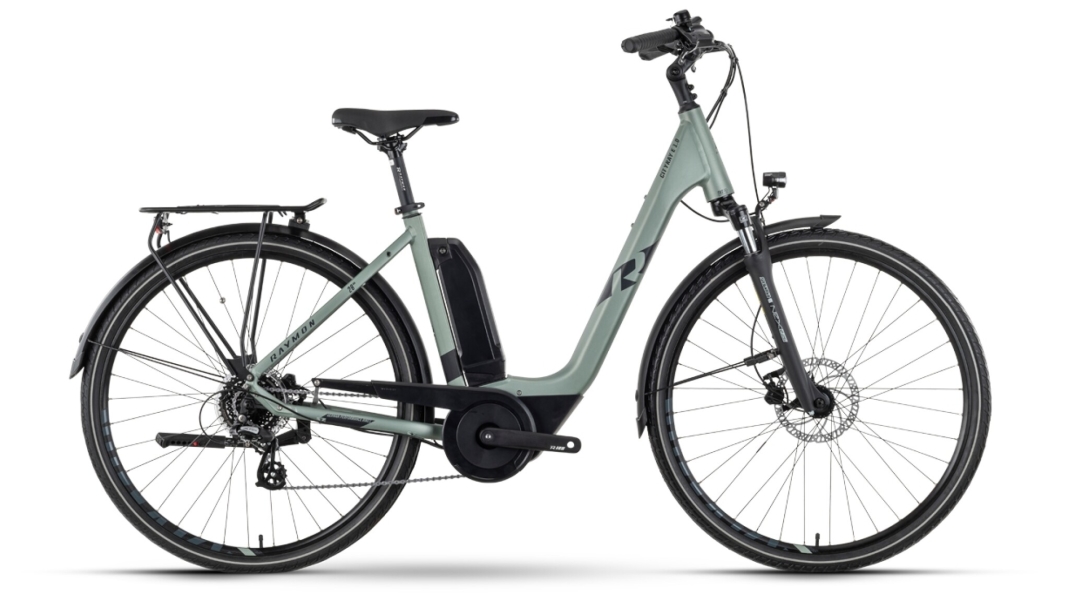

R Raymon CityRay E 1.0 400 2022
Model: CityRay E 1.0 400 2022
Model year: 2023
Price: 2.499,00 €
Category: Trekkingbike
Weight: 24 kg
Permissible total weight: 130 kg
Tests & Reviews
Equipment
| Rear brakes | Tektro HD-T275, 2-piston, hydraulic disc brake |
| Front brakes | Tektro HD-T275, 2-piston, hydraulic disc brake |
| Brakes | Front: Clarks M2, 2-piston, hydraulic disc brake; Rear: Clarks M2, 2-piston, hydraulic disc brake |
| Front brake disc | Tektro TR24, 160 mm, 6-hole |
| Rear brake disc | Tektro TR24, 160 mm, 6-hole |
| Frame | 28", 6061 alloy, external battery |
| Drivetrain | Shimano Altus, RD-M310, 8-speed |
| Shift levers | Shimano SL-M315, Rapidfire Plus |
| Fork | SR SUNTOUR NEX-E25, suspension fork, 50 mm |
| Bottom bracket | R Raymon, 38 T |
| Crankset | Wheeltop, forged aluminium, JIS |
| Sprocket | Shimano CS-HG31, 11-34 T |
| Drive | KMC X8 |
| Headset | R Raymon ZS44/ZS56 |
| Handlebar | R Raymon Ergo 31.8 mm, 640 mm, sweep: 35°, rise: 20 mm |
| Grips | R Raymon Ergo, screw-type handles |
| Stem | R Raymon 31.8, Ahead, adjustable |
| Saddle | R Raymon Ergo |
| Seatpost | R Raymon, 30.9 mm, 350 mm, patent |
| Seat clamp | R Raymon 35, quick-release |
| Wheelset | 28"/622mm, 28"/635mm |
| Rims | Mach 1 630E, eyeleted |
| Tires | Mitas Flash, Reflex, 47-622, 28x1.75 |
| Front hub | R Raymon JA159F, 6-hole, 100 mm, quick-release axle |
| Rear hub | R Raymon JA259R, 6-hole, quick-release axle, HG |
| Spokes | Mach1, stainless steel |
| Pedals | R Raymon, aluminium |
| Front light | AXA Compactline 20, 20 lx, parking light |
| Rear light | AXA Blueline E, parking light |
| Mudguards | Eurofender Tempo |
| Kickstand | Ursus MOOI, rear kickstand KSA18, adjustable |
| Rack | R Raymon |
| Motor manufacturer / model | Yamaha PW-CE, 250 W, 50 Nm |
| Display | Yamaha Display A, LCD display |
| Control unit | Integrated in the display |
| Battery | Yamaha EX400, 400 Wh, 36 V |
| Battery capacity (Wh) | 400 |
| Charger | Yamaha quick charger, 4 A |
