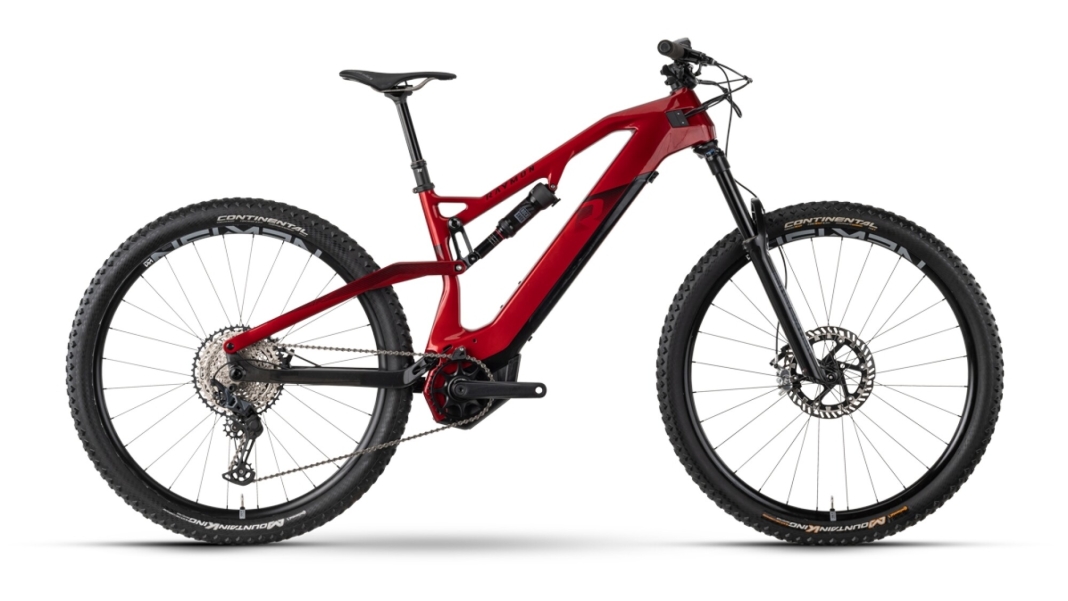

R Raymon AirRay 10.0 2022
Model: AirRay 10.0 2022
Model year: 2023
Price: 5.799,00 €
Category: Fully
Weight: 20 kg
Permissible total weight: 120 kg
Tests & Reviews
Equipment
| Rear brakes | Formula Cura, 2-piston, hydraulic disc brake |
| Front brakes | Formula Cura 4, 4-piston hydraulic disc brake |
| Brakes | Front: Formula Cura 4, 4-piston, hydraulic disc brake; Rear: Formula Cura, 2-piston, hydraulic disc brake |
| Front brake disc | Formula, 203 mm, 6-hole |
| Rear brake disc | Formula, 180 mm, 6-hole |
| Brake levers | Formula Cura X, adjustable brake lever, 2-finger |
| Frame | 29", carbon, integrated battery, Boost, 150 mm |
| Drivetrain | Shimano SLX, RD-M7100, Shadow Plus, 12-speed |
| Shift levers | Shimano SLX, SL-M7100, Rapidfire Plus |
| Fork | RockShox Revelation RC, DebonAir, air, 150 mm, tapered |
| Rear shock | RockShox Deluxe Select, air, 230x65 mm |
| Bottom bracket | R Raymon, Narrow Wide, 34 T |
| Crankset | R Raymon EC33, forged aluminium, JIS |
| Sprocket | Shimano 105 CS-R7000, 10–51T |
| Drive | KMC e12S |
| Headset | R Raymon ZS44/ZS56 |
| Handlebar | Race Face Turbine 35 mm, 780 mm, sweep: 8°, rise: 20 mm |
| Grips | R Raymon MTB Light |
| Stem | Race Face Affect 35 mm, 0°, Ahead |
| Saddle | Selle Italia SLR Boost, Titanium |
| Seatpost | R Raymon Pro, 31.6 mm, dropper post |
| Seat clamp | R Raymon 35, hexagon socket |
| Wheelset | NEWMEN Evolution A.30, tubeless-ready, 6-hole, 15x110/12x148 mm, thru-axle, 29"/622 mm |
| Tires | Continental Mountain King, 29x2.3 |
| Motor manufacturer / model | AIR DRIVE powered by Yamaha, 250 W, 50 Nm |
| Display | Yamaha Interface X, LED display, ANT, Bluetooth |
| Control unit | Yamaha X |
| Battery | Yamaha ML500, 500 Wh, 36 V |
| Battery capacity (Wh) | 500 |
| Charger | Yamaha quick charger, 4 A |
