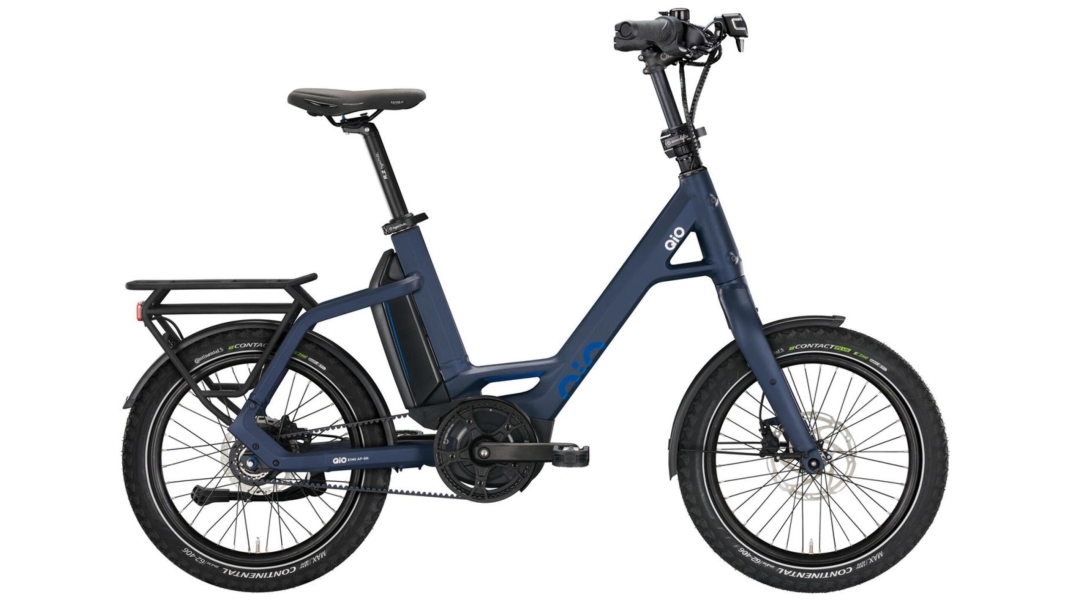

QiO EINS A-8R Unisex
Model: EINS A-8R Unisex
Model year: 2024
Price: 3.199,00 €
Category: Kompaktrad
Frame material: Aluminium
Weight: 25 kg
Permissible total weight: 180 kg
Wheel size: 20“/406mm
Tests & Reviews
Equipment
| Rear brakes | TRP "C1.8" HD-EU817, hydraulic, 2 pistons, for 1.8 mm brake discs |
| Front brakes | TRP "C1.8" HD-EU817, hydraulic, 2 pistons, post mount, for 1.8 mm brake discs |
| Brakes | TRP HD-EU817 |
| Front brake disc | TRP "TR-25", Ø 180 mm, centre lock, 1.8 mm thickness |
| Rear brake disc | TRP "TR-25", Ø 160 mm, Centre Lock, 1.8 mm thick |
| Brake levers | TRP HD-EU817 |
| Frame | QIO EINS, Bosch Gen. 3, BES2, aluminium, 48 cm, glossy forest green |
| Frame material | Aluminium |
| Drivetrain | 8-speed SHIMANO "Nexus" neutral gear |
| Shift levers | SHIMANO "Nexus, SL-C6000-8", 8-speed, Scandinavian version |
| Drivetrain type | Hub gear |
| Number of gears | 8 |
| Fork | QIO EINS 20", aluminium, tapered 1 1/4" – 1.5", 313.5 mm steerer tube, post mount, glossy forest green |
| Bottom bracket | BOSCH |
| Crankset | Stronglight "Mangan 3", 170 mm, for Bosch Gen. 3, BNI, aluminium, black |
| Sprocket | GATES "CDX", 55 teeth, Bosch Gen. 3, 5-arm, incl. spider and guard GATES "CDX", for Alfine / Nexus, 22 teeth |
| Drive | GATES "CDX", 122 teeth |
| Drive type | Strap |
| Headset | TOKEN "TK255E-HJ01", IS52/40 / IS52/44, 1 1/4" - 1.5" |
| Handlebar | ERGOTEC "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep, 16 mm height, level 4, black |
| Grips | HERRMANS "Clik Original DD37", 90/123 mm, handlebar clamp, black |
| Stem | BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamp, 70 mm long, angle 7°, black |
| Saddle | SELLE ROYAL "Nuvola 5060", Unisex, Relaxed, black |
| Seatpost | BY.SCHULZ "R.3 P-QR", aluminium, Ø 34.9 mm, 400 mm, 7 mm clamp, pull-out stop, anti-theft protection, black |
| Wheel size | 20“/406mm |
| Rims | SCHÜRMANN "YAK DISC 25", 25-406, 36-hole, disc brake, black |
| Front tire | KENDA "Kwick Drumlin Cargo", 62-406, K1216, K-Shield, 60 TPI, E-25, Reflex |
| Rear tire | KENDA "Kwick Drumlin Cargo", 62-406, K1216, K-Shield, 60 TPI, E-25, Reflex |
| Front hub | SHIMANO "Deore HB-M6000", Centre Lock, 36-hole, quick-release, black |
| Rear hub | SHIMANO "Nexus SG-C6061-8D", 8-speed, freewheel, Centre Lock, 36-hole, black |
| Spokes | Stainless steel, black |
| Pedals | UNION "SP-153", foldable |
| Front light | CONTEC "DLUX 80 E+", 80 lux, DC 12 V, universal bracket, SDS link |
| Rear light | CONTEC "TL-335 E-Stop", 50 mm screw spacing, stop light function |
| Mudguards | SKS "A 69 R", plastic, 65 mm, matt black |
| Kickstand | URSUS "R78 - King Mini", adjustable, 40 mm hole spacing, black |
| Rack | QIO "MIK HD", integrated, black |
| Motor manufacturer / model | BOSCH "Active Line", Gen. 3, BES2 |
| Motor type | up to 25 km/h |
| Display | BOSCH "Intuvia", 4-speed, remote control, push-assist |
| Battery | BOSCH "PowerPack 400", 400 Wh, BES2 |
| Battery capacity (Wh) | 400 |
| Battery type | Lithium-ion (Li-ion) |
| Charger | BOSCH 4 A, BES2 |
