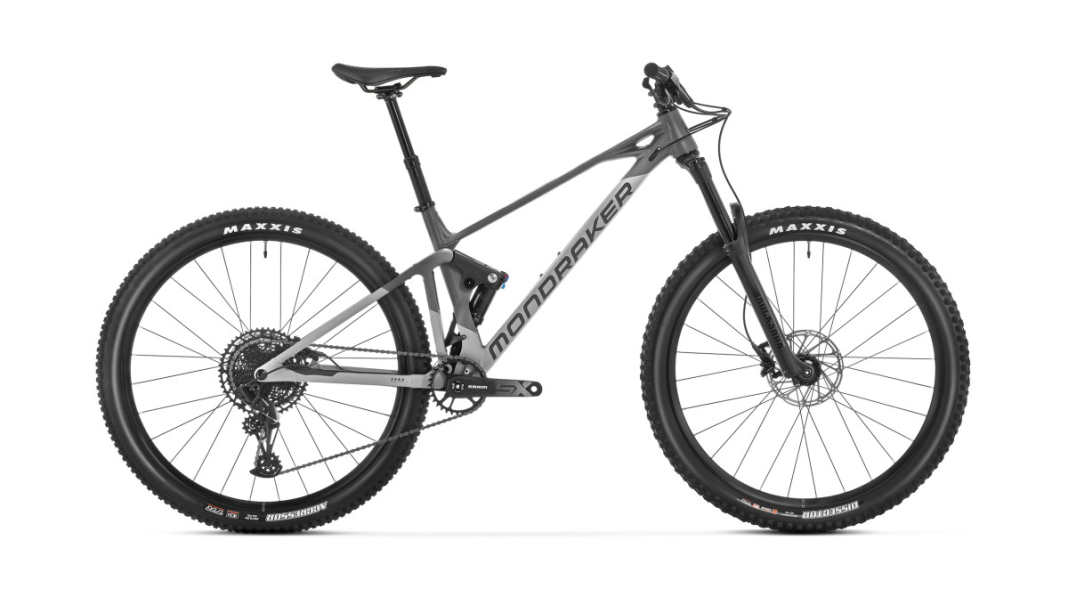

Mondraker RAZE
Model: RAZE
Model year: 2024
Price: 2.999,00 €
Category: Fully
Weight: 15.9 kg
Tests & Reviews
Equipment
| Rear brakes | SRAM Level T, two-piece brake caliper, one-piece 180 mm IS 6-hole centreline brake disc, organic brake pad with steel backing plate |
| Frame | Raze 29 6061 Alloy Stealth Evo, hydroformed tubeset, Zero Suspension System, 130 mm travel, Forward Geometry, one-piece upper rocker monoblock, 12 x 148 mm Boost rear axle, tapered head tube, 73 mm BSA bottom bracket, specific design for single drivetrains, telescopic seatpost with internally routed cable, sealed "MAX-Capacity" bearings, ISCG 05 |
| Drivetrain | SRAM SX Eagle, Roller Bearing Clutch Type 3, Cage Lock, long cage, 1x12-speed, X-Actuation 1:1 |
| Fork | RockShox 35 Gold 29 RL, 150 mm, Solo Air, konisches Steuerrohr, 15 x 110 mm Boost-Achse, 35 mm Stahlstandrohre, 44 mm Offset. Einstellungen: Low-Speed-Druckstufe bis Lock, Zugstufe, Luftvorspannung |
| Rear shock | Fox Float EVOL Performance, 205 x 57.5 mm. Settings: Compression adjustment with 2 modes (Open/Firm), rebound, air preload. Trunnion mount at the top, lower bushings: 25 x 8 mm |
| Bottom bracket | SRAM DUB BSA, sealed bearings, 73 mm |
| Grips | ONOFF Twin, single lock-on, 135 mm |
| Stem | ONOFF Sulfur FG 30 mm 0°, forged 6061 aluminium, 31.8 mm handlebar diameter |
| Saddle | Mondraker MDK series, SRX, steel strut |
| Rims | Mavic CrossRide, 29 Boost, 30 mm Innenbreite, Tubeless Ready, 28 Speichen |
| Rear tire | Maxxis Dissector 29 x 2.4 WT, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead |
| Front hub | Mavic Boost 15 x 110 mm, gedichtete Lager, IS 6-Loch |
