Rear brakes	SRAM DB8, extra large 4-piston brake caliper, one-piece 200 mm IS 6-hole centreline brake disc, sintered metal brake pads with steel backing plate
Frame	Stealth Air Full Carbon, e-bike-optimised Zero Suspension System, Mullet, 165 mm travel, Forward Geometry, integrated and removable battery, 12 x 148 mm Boost rear axle, tapered head tube, one-piece Monoblock upper rocker, internally routed cables and hoses (HHG), sealed ‘MAX-Capacity’ bearings, extra-large 15 mm axles, exclusive plastic motor covers.
Shift levers	SRAM Trigger NX Eagle, 12-speed, X-Actuation 1:1, Single Click
Fork	FOX 38 Float 3P Performance Grip, 170 mm, adapted for e-bikes, tapered head tube, 15 x 110 mm Boost axle, 44 mm offset. Settings: 3 positions with micro-adjustable compression, low-speed rebound, air preload
Rear shock	FOX Float X Performance EVOL, 205 x 65 mm. Adjustments: Compression damping with 2 modes (Open/Firm), rebound damping, air preload. Trunnion mount at the top, lower bushings: 30 x 8 mm
Grips	ONOFF Desert, single lock-on, 135 mm
Stem	ONOFF Krypton FG 30 mm, CNC, 31.8 mm handlebar diameter
Saddle	Fizik Terra Aidon Slim X5
Rims	e*thirteen Grappler Core, hookless, welded 6069 aluminium, 30 mm internal width, tubeless-ready, 28F spokes, 29" front, 27.5" rear
Rear tire	Maxxis Assegai 29 x 2.5 WT, Tubeless Ready, MaxxGrip rubber compound, EXO+ carcass, 60 TPI, folding bead
Front hub	e*thirteen Boost 15 x 110 mm, triple sealed, milled aluminium, IS 6-hole
Display	Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller

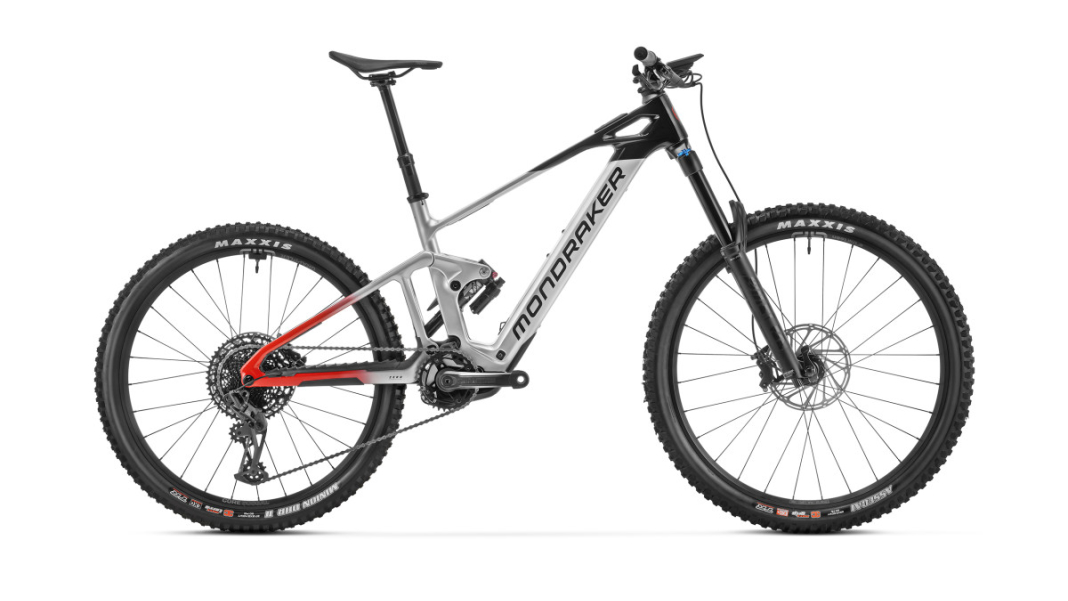

Mondraker DUNE R
