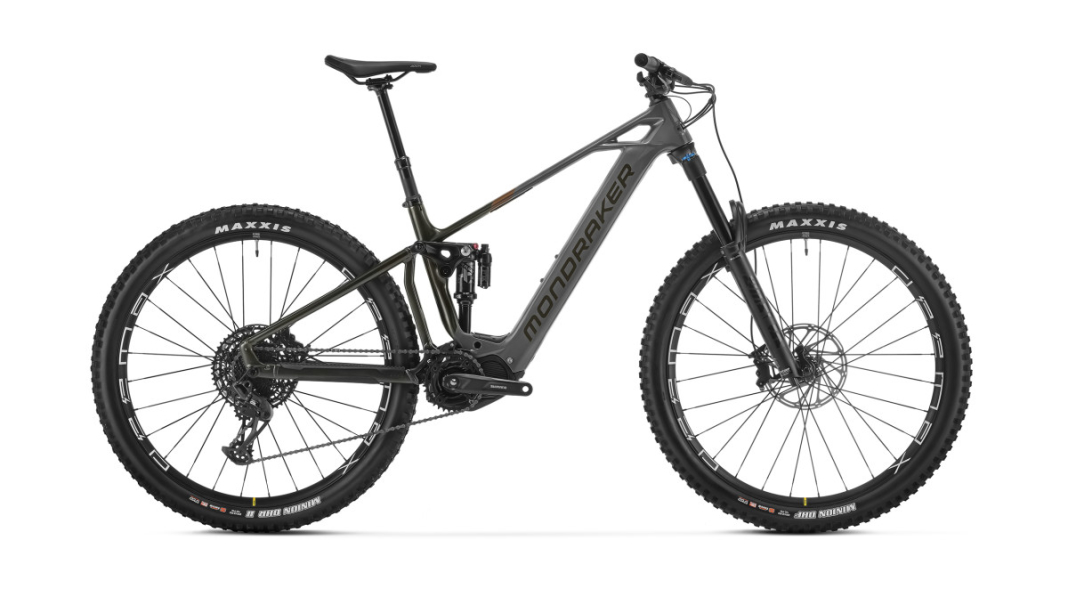

Mondraker CRUSHER
Model: CRUSHER
Model year: 2024
Price: 6.999,00 €
Category: Fully
Tests & Reviews
Equipment
| Rear brakes | SRAM DB8, 4-piston brake caliper, one-piece 200 mm IS 6-hole centreline brake disc, organic brake pads with steel backing plate |
| Frame | Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-bike-optimised Zero Suspension System, 150 mm travel, Forward Geometry, internally integrated, non-removable battery, 12 x 148 mm Boost rear axle, tapered head tube, one-piece Monoblock upper rocker, internally routed cables and hoses (HHG), sealed ‘MAX-Capacity’ bearings, extra-large 17 mm axles, speed sensor integrated into the dropout, exclusive plastic motor covers. |
| Shift levers | SRAM Trigger NX Eagle, 12-speed, X-Actuation 1:1, Single Click |
| Fork | Fox 38 29 Float FIT GRIP EVOL Performance, 160 mm, adapted for e-bikes, tapered steerer tube, 15 x 110 mm Boost axle, 44 mm offset. Settings: 3 positions with micro-adjustable compression, low-speed rebound, air preload |
| Rear shock | Fox Float-X LV Performance, 205 x 65 mm. Adjustments: compression via 2-way lever, low-speed rebound, air preload. Trunnion mount at the top, lower bushings: 25 x 10 mm |
| Grips | ONOFF Desert, single lock-on, 135 mm |
| Stem | ONOFF Sulfur FG 30 mm 0°, forged 6061 aluminium, 31.8 mm handlebar diameter |
| Saddle | FIZIK Terra Aidon X5 145 mm |
| Rims | Mavic E-Deemax 29, 30 mm internal width, welded, PFP, Tubeless Ready, 28 spokes |
| Rear tire | Maxxis Minion DHF 29 x 2.6, Tubeless Ready, 3C MaxxTerra rubber compound, EXO+ Protection, 120 TPI, folding bead |
| Front hub | Mavic, Boost 15 x 110 mm, IS 6-hole |
| Display | Shimano EN600 |
