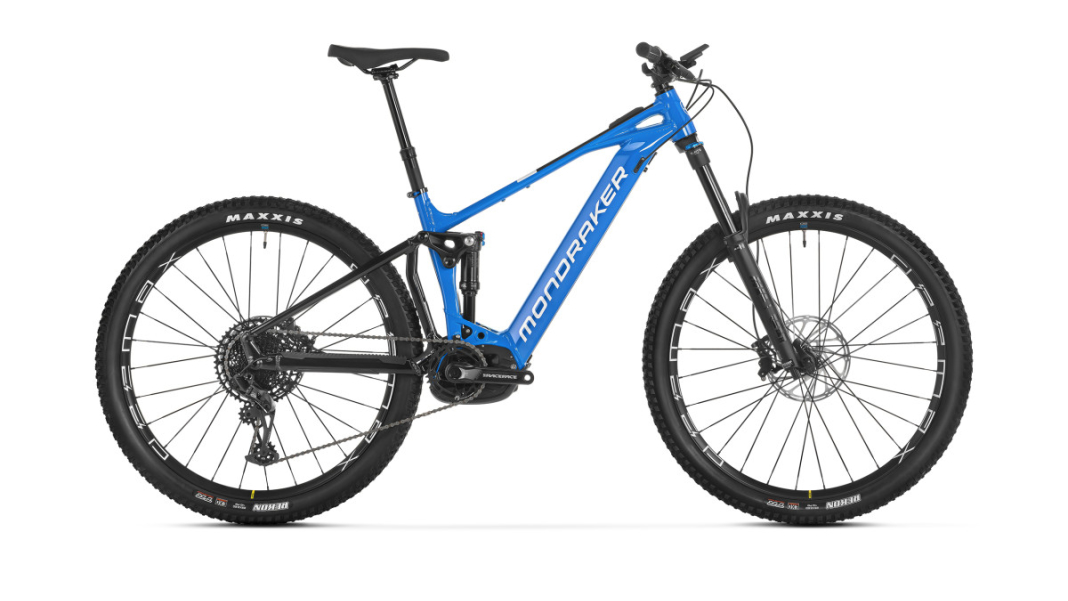

Mondraker CHASER R
Model: CHASER R
Model year: 2024
Price: 5.999,00 €
Category: Fully
Tests & Reviews
Equipment
| Rear brakes | SRAM DB8, 4-piston brake caliper, one-piece 200 mm IS 6-hole centreline brake disc, organic brake pads with steel backing plate |
| Frame | Chaser 6061 Alloy Stealth Evo, e-bike-optimised Zero Suspension System, 150 mm travel, Forward Geometry, integrated, non-removable battery, 12 x 148 mm Boost rear axle, tapered head tube, one-piece Monoblock upper rocker, internally routed cables and hoses (HHG), sealed ‘MAX-Capacity’ bearings, extra-large 17 mm axles, speed sensor integrated into the dropout, exclusive plastic motor covers, splash guard for the shock absorber. |
| Shift levers | SRAM Trigger SX Eagle, 12-speed, X-Actuation 1:1, Single Click |
| Fork | Fox 36 29 Float FIT GRIP EVOL Rhythm, 160 mm, adapted for e-bikes, tapered head tube, 15 x 110 mm Boost axle, 44 mm offset. Adjustments: Sweep Adjust compression, low-speed rebound, air preload |
| Rear shock | Fox Float EVOL Performance, 205 x 65 mm. Adjustments: Compression damping with 2 modes (Open/Firm), rebound damping, air preload. Trunnion mount at the top, lower bushings: 25 x 10 mm |
| Grips | ONOFF Twin, single lock-on, 135 mm |
| Stem | ONOFF Sulfur FG 30 mm 0°, forged 6061 aluminium, 31.8 mm handlebar diameter |
| Saddle | MDK e-bike black |
| Rims | Mavic E-Deemax 29, 30 mm internal width, welded, PFP, Tubeless Ready, 28 spokes |
| Rear tire | Maxxis Rekon 29 x 2.6, tubeless ready, dual rubber compound, EXO Protection, 60 TPI, folding bead |
| Front hub | Mavic, Boost 15 x 110 mm, IS 6-hole |
| Display | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
