KTM REVELATOR ALTO ELITE

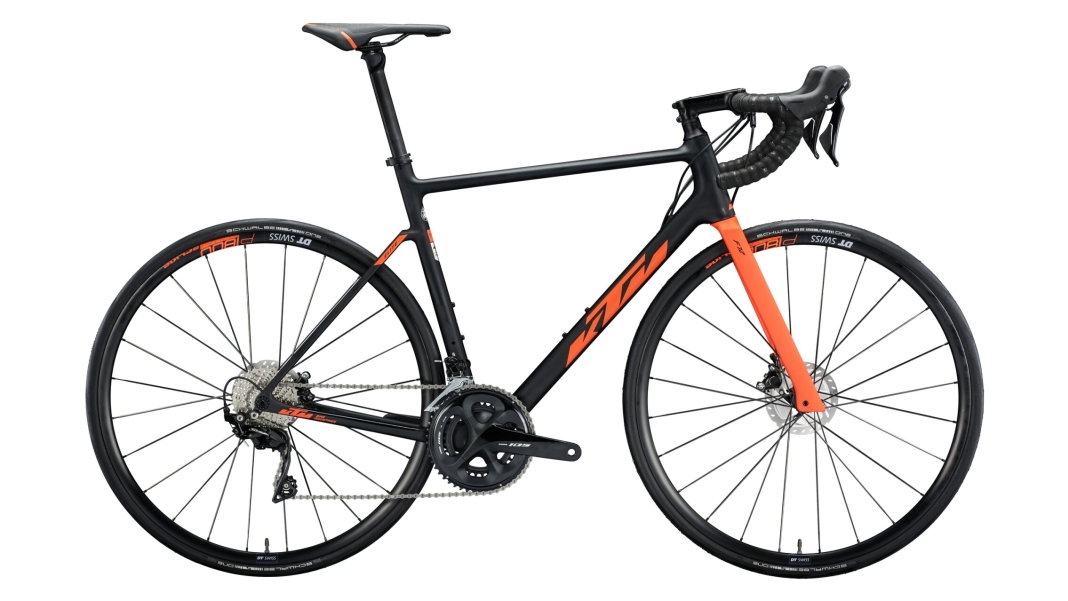

The 2020 KTM REVELATOR ALTO ELITE is a high-quality road bike that stands out thanks to its high-performance build and precision-engineered components. The bike’s frame is made from Revelator Alto Premium Carbon (R-9820), which gives the bike excellent stability and a low weight. The frame is complemented by the Revelator Alto Performance Carbon F12 fork, which ensures optimum suspension and steering precision.

The REVELATOR ALTO ELITE’s braking system consists of Shimano 105 R7070 2-piston flat-mount brakes, which deliver reliable and powerful braking performance. Gear changes are handled by the Shimano 105 R7000 GS system, which is renowned for precise and rapid gear changes. The shift levers are also by Shimano (105 R7020) and offer ergonomic operation.

The model’s front derailleur is a Shimano 105 R7, which further optimises shifting performance. The crankset is a Shimano 105 R7000 with a 50-34 tooth ratio, offering a good balance between speed and climbing ability. Power is transmitted via the Shimano HG601-11 chain, which is renowned for its durability and smoothness.

The bike’s handlebars are KTM Team Flare with an 8° angle, which, together with the KTM Tape grip tape, ensures a comfortable and secure grip. The stem is also from KTM and has an 8° angle, which promotes a sporty riding position.

The bike is fitted with Schwalbe One Perf. RaceGuard TLE tyres (25-622) at both the front and rear, which are known for their puncture resistance and good rolling characteristics. The wheelset consists of DT Swiss P 1800 Spline DB 23 CL 100-12TA / 622x18TC TLR, which ensures high stability and efficiency.

The REVELATOR ALTO ELITE is fitted with a Selle Italia X3 Flow saddle, which ensures comfort even over long distances. The seatpost is a KTM CompLink Zero Alloy Aero/400, which provides additional aerodynamics and stability.

Overall, the 2020 KTM REVELATOR ALTO ELITE offers an outstanding combination of high-quality materials and precision engineering, making it an excellent choice for ambitious road cyclists.
