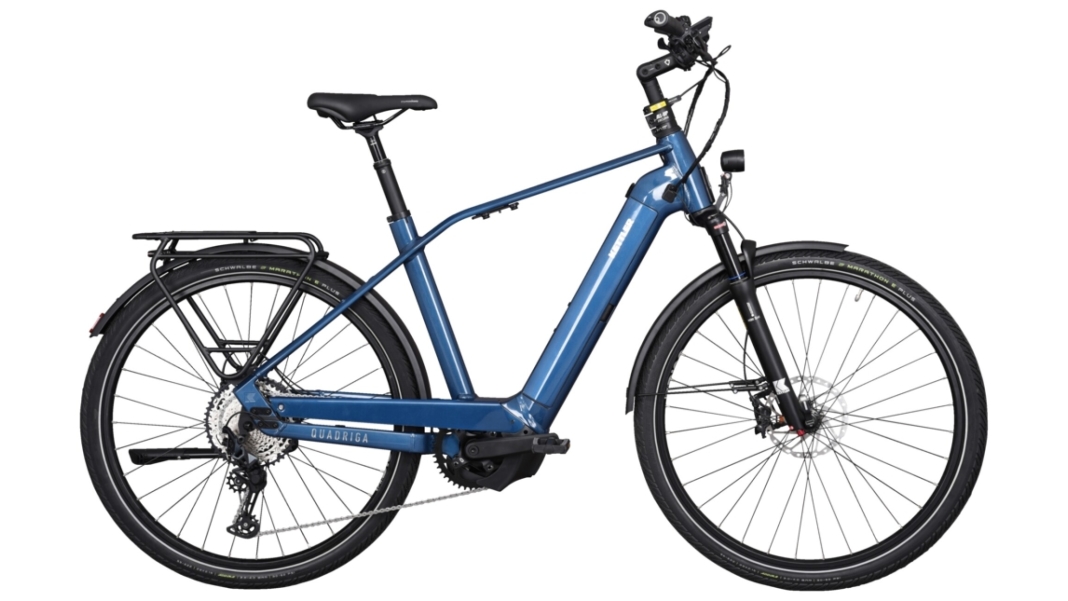

Kettler QUADRIGA PRO CX12 750

The "QUADRIGA PRO CX12 750" model from Kettler, released in 2022, is a high-quality e-bike designed for discerning users. It is available at a price of 4,699 EUR and offers a wide range of technical features suitable for both everyday use and longer rides.

The frame is made of aluminium and the maximum load capacity is 150 kg, whilst the bike’s own weight is 28 kg. The brakes consist of SHIMANO XT BR-M8120 at the front and SHIMANO XT BR-M8100 / 2-piston at the rear, controlled via SHIMANO XT BL-T8100 brake levers. The brake discs are SHIMANO SM-RT64 / 180 mm at the front and SHIMANO RT-64 / 180 mm at the rear.

The bike is fitted with a 12-speed drivetrain comprising the SHIMANO SLX RD-M7100 rear derailleur and SHIMANO Deore SL-M6100 shift levers. The fork is an SR SUNTOUR Mobie25 Air with 63 mm of travel. Optimal visibility is ensured by the FUXON FF-100 EB front light, with a luminous intensity of 100 lux, and the FUXON R-Glow EB rear light.

The model is fitted with ZECURE VP-658 pedals, a SAMOX crankset, and a SHIMANO SLX CS-M7100 cassette with a 10–51T range. The drivetrain is powered by a SHIMANO Deore CN-M6100 chain. The handlebars are Noir Mtb 35° blk, complemented by ERGON GC1 ergonomic grips and a SATORI All Up stem. The headset is a Headset for All Up, 1.5-inch.

The rims are Schürmann YAK Disc, fitted with SCHWALBE Marathon E-Plus tyres (55-622). The spokes are black (Spoke 2.0 blk) and the hubs are a SHIMANO Deore HB-M6010 at the front and a SHIMANO FH-MT500 at the rear. The saddle is a Comodoro XL, mounted on a LIMOTEC A3Z suspension dropper post (140x34.9mm), with a saddle clamp diameter of 38.6mm.

The e-bike is fitted with SKS Edge AL C66R mudguards and a Kettler Quadriga chain guard. The kickstand is an URSUS Wave model and the luggage rack is a MonkeyLoad Carrier. The bike is powered by a Bosch Performance Line CX motor (Smart System) with an output of 25/85 Nm. The battery is a Bosch PowerTube Vertical 750 with a capacity of 750 Wh, and the display is a Bosch KIOX 300.

In summary, the “QUADRIGA PRO CX12 750” from Kettler offers an impressive combination of high-performance technology, excellent build quality and comprehensive features, making it a reliable companion for a wide range of uses.
