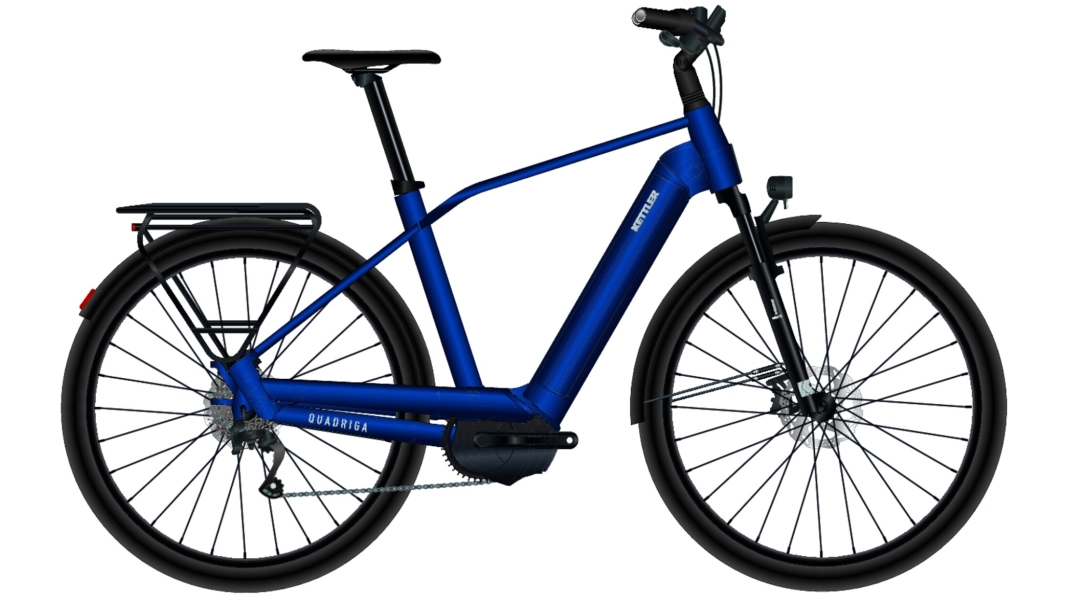

Kettler QUADRIGA PRO CX 11 LG

The "QUADRIGA PRO CX 11 LG" model from Kettler, released in 2023, is a high-quality e-bike characterised by its robust construction and extensive range of features. The frame is made of aluminium and contributes to a maximum load capacity of 145 kg, whilst the bike itself weighs 28 kg.

Safety is ensured by TEKTRO HD-T532 brakes at both the front and rear, each fitted with a 180 mm TEKTRO TR180 brake disc. The brake levers are also from TEKTRO and feature a 3-finger operation. Gear changes are handled by the SHIMANO Deore XT RD-M8130 system with 11 speeds, controlled by the SHIMANO Deore XT SL-M8130 shifter.

The SR SUNTOUR Mobie25 air fork, with 63 mm of travel, ensures a comfortable ride, even on uneven terrain. For optimum visibility on the road, the e-bike is fitted with a FUXON FF-100 front light (100 lux) and a FUXON R-Glow EB rear light.

The bike features ZECURE VP-658 pedals and a SAMOX crankset, whilst the cassette is a SHIMANO LinkGlide CS-LG600-11 with a gear ratio of 11-50T. Power is transmitted via the SHIMANO LinkGlide CN-LG500 chain.

The QUADRIGA PRO CX 11 LG’s handlebars are Noir MTB with a 35° angle, and the grips are ERGON GC-1, which provide extra comfort. The stem is a SATORI All Up model, and the headset is the Acros AIF-556 with a 1.5-inch thread. The tyres are SCHWALBE Marathon E-Plus (55-622) fitted to Schürmann YAK Disc rims, front and rear. The hubs are by SHIMANO: the Deore HB-M6010 model at the front and the Deore FH-M6000 model at the rear.

The saddle is a Comodoro XL, fitted to a LIMOTEC A3Z dropper seatpost measuring 34.9 x 140 mm, secured by a seat clamp with a diameter of 38.6 mm. For additional protection, SKS EDGE AL C66R mudguards are fitted, and the chain guard is a Kettler Quadriga model. The bike is also equipped with an URSUS Wave kickstand and a MonkeyLoad Carrier luggage rack.

Power is provided by a Bosch Performance Line CX motor (Smart System) with an output of 25/85 Nm, powered by a Bosch PowerTube Vertical battery with a capacity of 750 Wh. The display is a Bosch KIOX 300, which clearly shows all the necessary information.

The price for the QUADRIGA PRO CX 11 LG is 4,999 EUR, which represents excellent value for money given its extensive specification and high-quality components.
