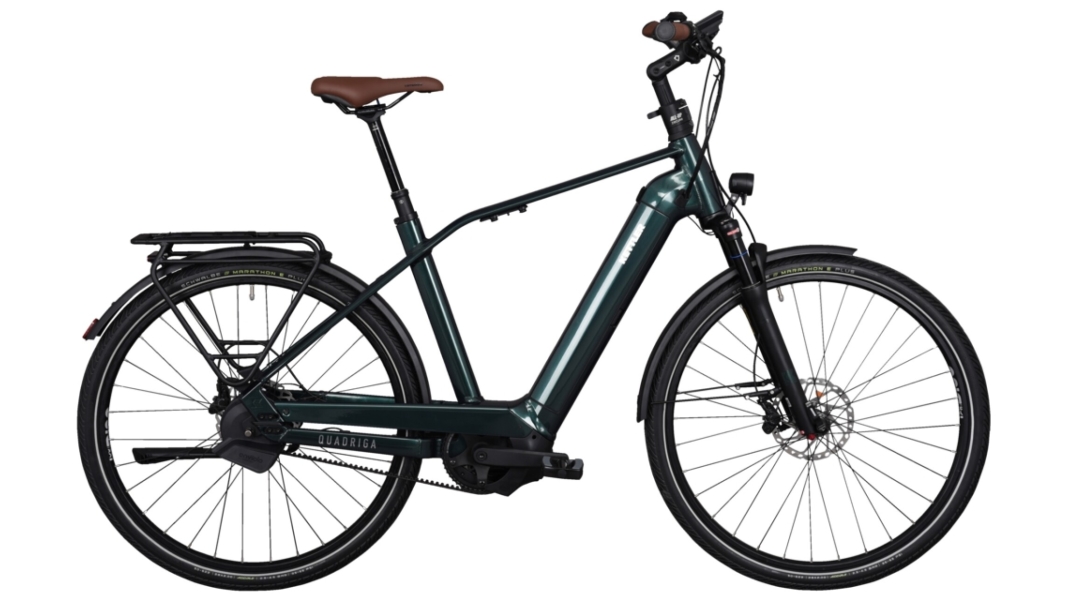

Kettler QUADRIGA PRO BELT AUTOMATIC

The "QUADRIGA PRO BELT AUTOMATIC" model from Kettler, released in 2022, is a high-quality e-bike available at a price of 5,199 EUR. The bike features a robust aluminium frame and has a total weight of 28 kg. It is designed for a maximum permissible weight of up to 150 kg, making it a stable and durable choice for a variety of riding conditions.

The QUADRIGA PRO BELT AUTOMATIC’s braking system consists of SHIMANO Deore BR-M6000 disc brakes at both the front and rear, each fitted with 180 mm brake discs. The brake levers are also from SHIMANO (BL-T6000), ensuring reliable braking performance. The Automatiq Controller Cliq Pro shifter ensures simple and precise gear changes.

The bike is fitted with an SR SUNTOUR Mobie25 air suspension fork, which offers 63 mm of travel and ensures a comfortable ride. Lighting is provided by a FUXON FF-100 EB front light with 100 lux and a FUXON R-Glow EB rear light, which ensure good visibility in low-light conditions.

Other features include ZECURE VP-658 pedals, a SAMOX crankset, a GATES CDXR22NU sprocket and a GATES CDX 125T black/black drivetrain. The handlebars are Noir Mtb 35° blk, complemented by Velo VLG-649 grips and a SATORI All Up stem. The headset is a Headset for All Up with a diameter of 1.5 inches.

The QUADRIGA PRO BELT AUTOMATIC features Schürmann YAK Disc rims and SCHWALBE Marathon E-Plus tyres (55-622). The spokes are Spoke 2.0 blk, and the hubs are a SHIMANO Deore HB-M6010 at the front and an ENVIOLO TRE at the rear. The saddle is a Comodoro XL, mounted on a LIMOTEC A3Z suspension dropper post (140x34.9mm). The saddle clamp has a diameter of 38.6 mm.

The bike is also fitted with SKS Edge AL C66R mudguards, a Kettler Quadriga chain guard, an URSUS Wave kickstand and a MonkeyLoad Carrier luggage rack. Power is provided by a Bosch Performance Line CX (Smart System) motor with an output of 25/85 Nm, powered by a Bosch PowerTube Vertical 750 battery with a capacity of 750 Wh. The display is a Bosch KIOX 300.

Overall, the QUADRIGA PRO BELT AUTOMATIC offers a combination of high-quality components and well-thought-out design, ensuring a comfortable and reliable ride.
