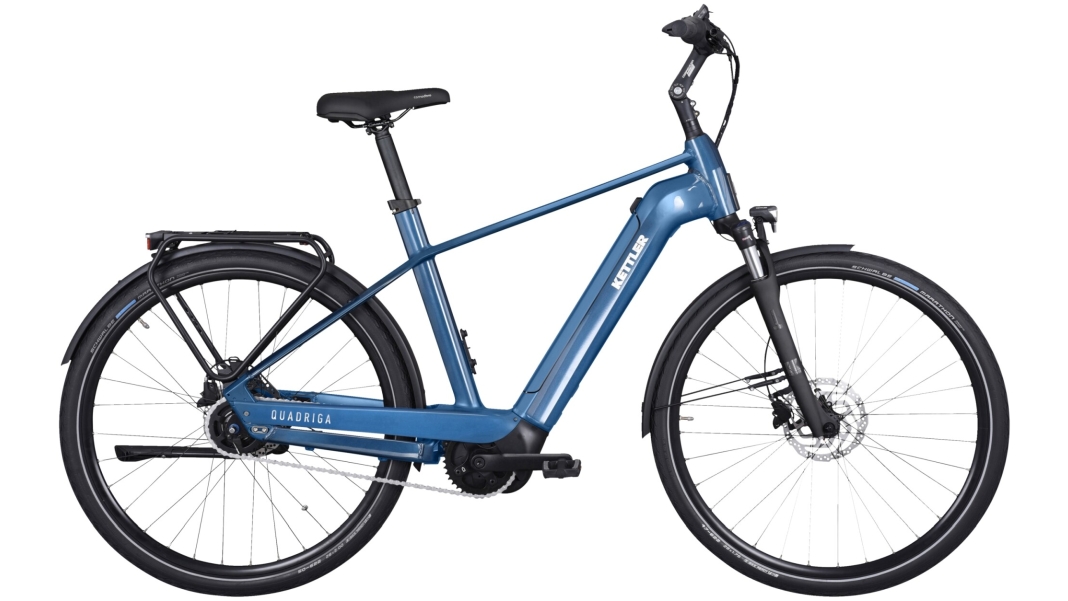

Kettler QUADRIGA P5 RT

The "QUADRIGA P5 RT" model from Kettler, launched in 2023, combines a robust design with well-thought-out features. The frame is made of aluminium, resulting in a total weight of 28 kg and a maximum load capacity of 145 kg. The bike is fitted with a Bosch Performance Line motor (Smart System), which delivers a top speed of 25 km/h and a torque of 75 Nm. The Bosch PowerTube Vertical battery has a capacity of 625 Wh and is controlled via the Bosch Intuvia 100 display.

Safety is ensured by TEKTRO HD-T280 brakes with a 2-piston system on the rear axle and TEKTRO 3-finger brake levers. The front brake discs have a diameter of 180 mm (TEKTRO TR180) and the rear ones 160 mm (TEKTRO TR160). The SR SUNTOUR NEX E25 fork, with 63 mm of travel, ensures a comfortable ride even on uneven terrain.

The bike is fitted with a SHIMANO Nexus SL-C7000-5 gear lever offering five gears, enabling precise gear changes. The chain is driven by the KMC Z610 Saltshaker drivetrain, whilst the 30-tooth SHIMANO Nexus CS-7000 sprocket ensures an optimal gear ratio. The crankset is from SAMOX.

The handlebars are a Competition SL Trekking model with ERGON GP1 grips, and the stem is also from Competition SL and is adjustable. The headset is an FSA NO. 55R with a diameter of 1.5 inches. The tyres are SCHWALBE Marathon GG HS420 (50-622), fitted to Schürmann YAK Disc rims. The front hub is a SHIMANO Alivio HB-M4050, whilst the rear hub is a SHIMANO Nexus SG-C7002-5CD.

The Comodoro M saddle is mounted on an SP216 seatpost, which measures 34.9 x 300 mm. A quick-release saddle clamp (38.6 mm) allows for easy adjustments. SKS PET A56R mudguards and a Kettler Quadriga chain guard provide additional protection against dirt and wet conditions. The URSUS Wave kickstand and the MonkeyLoad Carrier luggage rack complete the kit.

Lighting is provided by the FUXON FS-50 front light (50 lux) and the FUXON R-Glow EB rear light. The pedals are ZECURE VP-821s, which ensure a secure grip. The price for this model is 3,999 EUR, making it a high-quality option in the e-bike sector.
