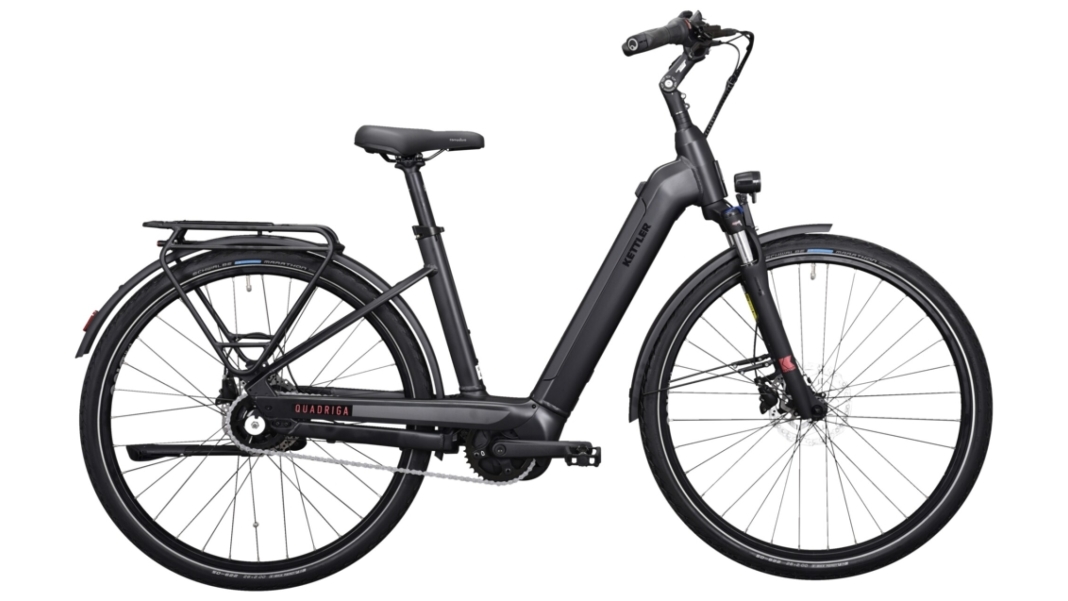

Kettler QUADRIGA P5 RT 26

The “QUADRIGA P5 RT 26” model from Kettler, released in 2022, is a versatile and robust e-bike available for 3299 EUR. The frame is made of aluminium and contributes to a total weight of 28 kg. The maximum load capacity is 145 kg, ensuring high load-bearing capacity.

The braking system comprises SHIMANO BR-MT200 brakes at the front and rear, featuring 2-piston calipers. The brake levers are also by SHIMANO (BL-MT200). The brake discs measure 180 mm each and are of the SHIMANO RT-10M type at the front and SHIMANO RT-10 at the rear.

The bike is fitted with a SHIMANO Nexus SL-C7000-5 gear lever, which enables 5-speed gear changing. The fork is an SR SUNTOUR NEX-E25 with 63 mm of travel, which ensures additional riding comfort.

Lighting is provided by the FUXON FS-50 EB front light (50 lux) and the FUXON R-Glow EB rear light, which ensure good visibility at night and in low-light conditions. The pedals are ZECURE VP-821s, whilst the crankset is from SAMOX. The sprocket is a SHIMANO Nexus CS-7000 with 30 teeth, and the drivetrain uses a KMC Z610 Saltshaker chain.

The handlebars are Competition SL Ergo, complemented by ERGON GC10-Nexus grips. The stem is adjustable and is also a Competition SL model. The headset is an ACROS AiX-322 R3. The rims are Schürmann YAK Disc, fitted with SCHWALBE Road Cruiser HS484 tyres (47-559), and the spokes are black Spoke 2.0.

The front hub is a SHIMANO Alivio HB-M4050, whilst the rear hub is a SHIMANO Nexus SG-C7002-5CD. The saddle is a comfortable Comodoro XL, mounted on an SP-216 seatpost with a diameter of 34.9 mm. The saddle is secured using a quick-release clamp (38.6 mm).

The bike is fitted with SKS PET A56R mudguards, a Kettler Quadriga chain guard and an URSUS Wave kickstand. The luggage rack is a MonkeyLoad Carrier, which provides additional storage space.

Power is provided by a Bosch Performance Line Cruise motor with 65 Nm of torque, supported by a Bosch PowerTube Horizontal 500 battery with a capacity of 500 Wh. The display is a Bosch Intuvia, which allows for simple and intuitive operation.

In summary, the QUADRIGA P5 RT 26 from Kettler offers a balanced combination of performance, comfort and functionality, ideal for both everyday use and longer rides.
