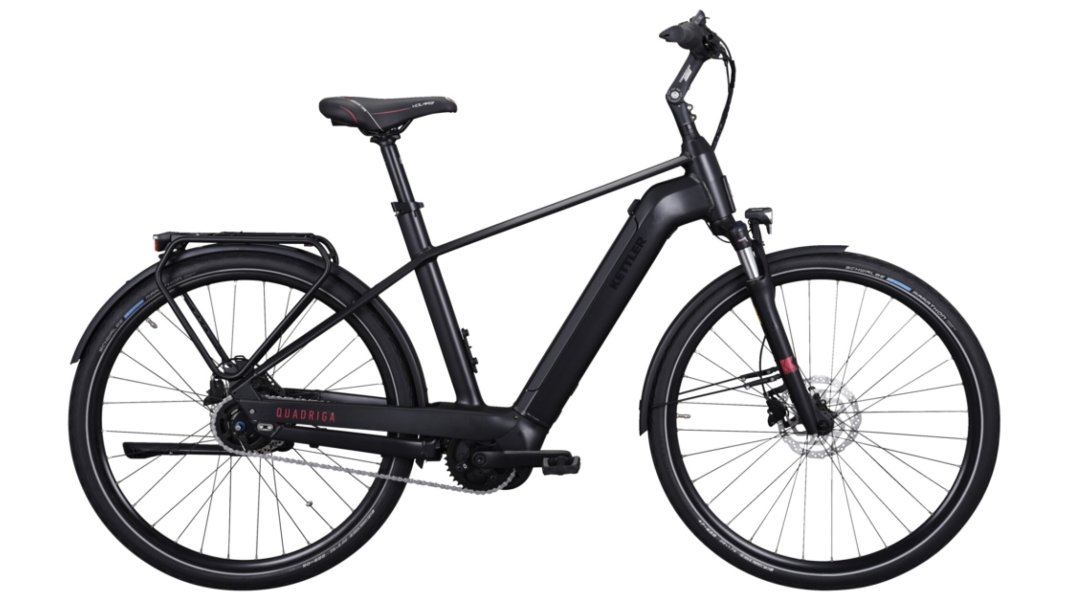

Kettler QUADRIGA P5 FL

The "QUADRIGA P5 FL" model from Kettler, released in 2022, is a high-quality e-bike characterised by its robust construction and comprehensive range of features. The price for this model is 3299 EUR. The frame is made of aluminium and offers high stability with a maximum permissible weight of 145 kg. The bike itself weighs 28 kg.

The braking system features the SHIMANO BR-MT200 system with 2-piston brakes at both the front and rear, operated by SHIMANO BL-MT200 brake levers. The brake discs are also from SHIMANO, measuring 180 mm at both the front (RT-10M) and rear (RT-10). The gear system consists of a SHIMANO Nexus SL-C7000-5 gear lever, which provides five gears.

The QUADRIGA P5 FL’s suspension is provided by the SR SUNTOUR NEX-E25 fork with 63 mm of travel. Lighting is provided by the FUXON FS-50 EB front light, with 50 lux, and the FUXON R-Glow EB rear light, which ensure optimum visibility in road traffic. The pedals are ZECURE VP-821.

The crankset is by SAMOX, whilst the sprocket is a SHIMANO Nexus CS-7000 with 30 teeth. Power is transmitted via a KMC Z610 Saltshaker chain. The handlebars are a Competition SL Trekking model, fitted with ERGON GP1 grips and an adjustable Competition SL stem. The headset is an ACROS AiX-322 R3.

The rims are Schürmann YAK Disc, combined with SCHWALBE Marathon GG HS420 tyres in size 50-622 and Spoke 2.0 blk spokes. The front hub is a SHIMANO Alivio HB-M4050, whilst the rear hub is a SHIMANO Nexus SG-C7000-5D.

The saddle is a Comodoro M, mounted on an SP-216 seatpost with a diameter of 34.9 mm and a 38.6 mm quick-release clamp. SKS PET A56R mudguards and a Kettler Quadriga chain guard provide additional protection against dirt and wet conditions. The kickstand is an URSUS Wave model, and the luggage rack is a MonkeyLoad Carrier.

Power is provided by a Bosch Performance Line Cruise motor with a top speed of 25 km/h and a torque of 65 Nm. The battery is a Bosch PowerTube Horizontal with a capacity of 500 Wh, controlled via the Bosch Intuvia display. This combination of motor and battery provides reliable and powerful assistance on longer journeys.
