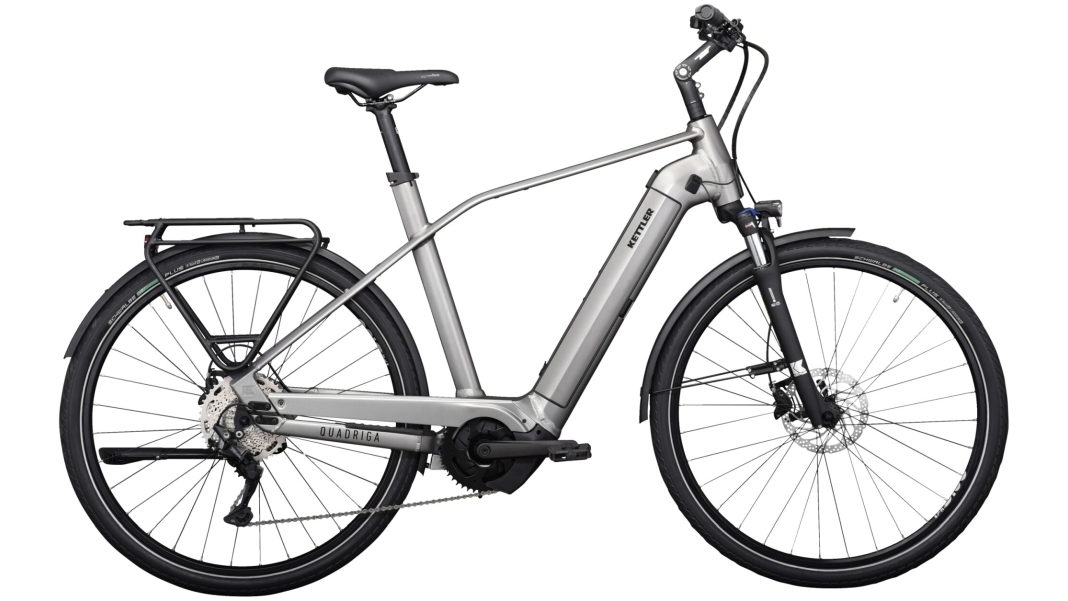

Kettler QUADRIGA P10

The "QUADRIGA P10" model from Kettler, launched in 2023, is a high-quality e-bike characterised by its robust construction and well-thought-out features. Priced at EUR 3,799, this bike offers excellent value for money.

The QUADRIGA P10’s frame is made of aluminium, which gives the bike high stability whilst keeping its weight down to a moderate 26 kg. The maximum load capacity is 145 kg, making it suitable for heavier loads too.

For the brakes, Kettler relies on the tried-and-tested SHIMANO BR-MT200 system, fitted to both the front and rear, each with 2-piston calipers and SHIMANO BL-MT200 brake levers. The brake discs are SHIMANO SM-RT30 with a diameter of 180 mm, ensuring reliable braking performance.

The derailleur is a SHIMANO Deore RD-M5120, which, together with the SHIMANO Deore SL-M4100 shifter, enables precise gear selection. The bike has a total of 10 gears. The crankset is from SAMOX and the cassette is a SHIMANO Deore CS-M4100-10 with a 11–46T range.

Suspension is provided by an SR SUNTOUR NEX E25 fork with 63 mm of travel, ensuring added comfort on uneven terrain. The lighting comprises a FUXON F130K front light and an RZ-100 EB rear light with an integrated reflector, ensuring good visibility in the dark.

The pedals are ZECURE VP-821 and the handlebars are a Competition SL Trekking model, fitted with Hermanns CLIK DD37 grips. The stem is also a Competition SL model and can be adjusted to allow for an optimal riding position. The headset is an FSA NO. 81, suitable for 1 1/8-inch to 1.5-inch steerer tubes.

The tyres are SCHWALBE Energizer Plus GG (50-622) fitted to Schürmann YAK Disc rims, which are connected at the front and rear to SHIMANO Acera hubs (HB-M3050 at the front and FH-M3050 at the rear). The saddle is a comfortable Comodoro M model, fitted to an SP216 seatpost (34.9 x 350 mm) with a quick-release clamp (seat clamp with quick release, 38.6 mm).

In addition, the QUADRIGA P10 features SKS PET A56R mudguards, a Kettler Quadriga chain guard, an URSUS Wave kickstand and a MonkeyLoad Carrier luggage rack.

The e-bike is powered by a Bosch Performance Line motor (Smart System) with 75 Nm of torque and a top speed of up to 25 km/h. The battery is a Bosch PowerTube Vertical with a capacity of 625 Wh, providing sufficient range for longer rides. The display is a BOSCH LED Remote, which clearly shows all the key information.

Overall, the Kettler QUADRIGA P10 offers a well-thought-out combination of high-quality components and powerful electric assistance, ideal for discerning riders who value quality and reliability.
