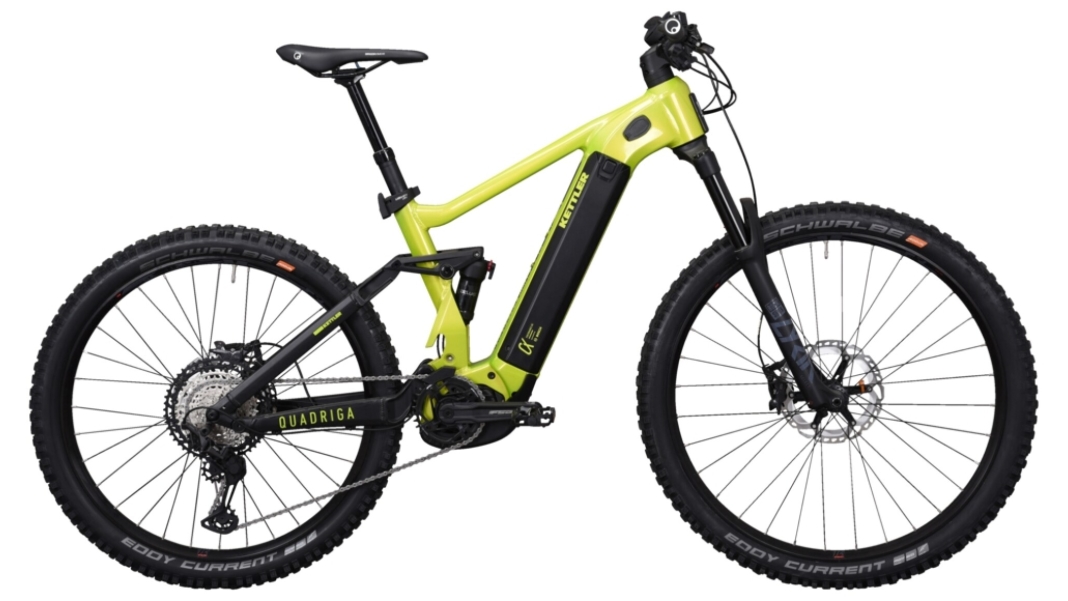

Kettler QUADRIGA DUO CX12 FS

The “QUADRIGA DUO CX12 FS” model from Kettler, released in 2022, is a high-quality e-bike characterised by its robust construction and high-performance features. Priced at 6,999 EUR, this bike offers a wide range of technical features suitable for both challenging tours and everyday use.

The frame of the QUADRIGA DUO CX12 FS is made of aluminium and contributes to a total weight of 26 kg. The maximum load capacity is 150 kg, providing ample scope for both the rider and luggage. The braking system is fitted with SHIMANO XT BR-M8120 calipers at both the front and rear, with the front brakes featuring a 203mm SHIMANO XT RT-MT800 brake disc, whilst the rear brakes are fitted with a 180mm SHIMANO XT RT-EM810 brake disc. The SHIMANO XT BL-T8100 brake levers ensure precise and reliable braking performance.

The gear system consists of a 12-speed SHIMANO XT RD-M8100 rear derailleur, controlled via the SHIMANO XT SL-M8100 shift lever. The bike’s fork is a RockShox ZEB Select Air with 150 mm of travel, complemented by a RockShox Deluxe Select rear shock, also with 150 mm of travel, ensuring excellent suspension and comfort. The drivetrain is supported by the FSA CK-762 crankset and the SHIMANO XT CN-M8100 cassette (10-51T).

The QUADRIGA DUO CX12 FS is fitted with ZECURE VPE-527 pedals, a SATORI Riser Bar 6066 handlebar and ERGON GA3 grips. The stem is a SATORI Custom with a length of 50mm, and the headset is an ACROS No.1B with a diameter of 1-1/8 inches. The RODI Tryp35 rims are fitted with SCHWALBE Eddy Current tyres (62-622 at the front and 65-584 at the rear) and are held together by Spoke 2.0 blk spokes. The hubs are SHIMANO XT HB-M8110 at the front and SHIMANO XT FH-M8110 at the rear.

The saddle is a ZECURE VL-3517, mounted on a LIMOTEC A1Z dropper post (150x34.9mm), which is secured by a seat clamp (38.6mm). The e-bike’s drive is provided by the Bosch Performance Line CX motor with 85Nm of torque, supported by two Bosch PowerTube 625 batteries with a total capacity of 1250 Wh. The Bosch KIOX display provides a clear overview of all relevant information.

Overall, the Kettler QUADRIGA DUO CX12 FS is a well-equipped e-bike that impresses with its high-quality components and powerful Bosch drive unit.
