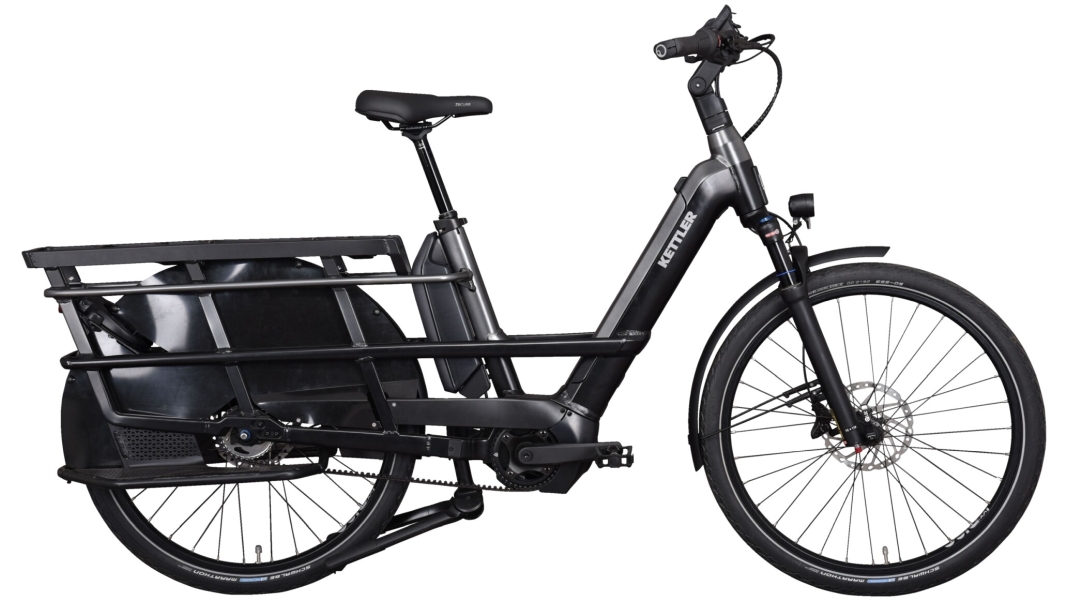

Kettler QUADRIGA CARGOLINE 5G BELT

The "QUADRIGA CARGOLINE 5G BELT" model from Kettler, released in 2023, is a high-quality and versatile e-bike designed specifically for transporting heavy loads. Priced at EUR 5,799, it offers a wide range of technical features and components that are suitable for both everyday use and demanding transport tasks.

The bike’s frame is made of robust aluminium and contributes to a maximum permissible weight of 180 kg, whilst the bike’s own weight is 39 kg. This enables even heavy loads to be transported safely and stably.

Braking performance is provided by SHIMANO BR-MT420 brakes at the front and SHIMANO BR-MT410 2-piston brakes at the rear, operated by SHIMANO BL-MT402-3A brake levers. The front brake discs are SHIMANO SM-RT64 with a diameter of 180 mm, and the rear discs are SHIMANO RT-EM600, also with a diameter of 180 mm, ensuring reliable and effective braking power.

The bike is fitted with a SHIMANO Nexus SL-C7000-5D gear lever offering a total of 5 gears. The fork is an SR SUNTOUR Zeron35-Boost Air with 80 mm of travel, providing additional comfort on uneven roads.

For lighting, the QUADRIGA CARGOLINE 5G BELT is fitted with a FUXON FF-100 front light (100 lux) and a FUXON RZ-100 EB rear light, ensuring good visibility and safety on the road. The pedals are ZECURE VP-658 models, which provide a secure grip.

The drivetrain consists of a black GATES CDX 137T belt and a GATES Pulley Inter 5 sprocket with 32 teeth. The crankset is from SAMOX. The handlebars are an HB-SM7 model with ERGON GC10-Nexus grips, which ensure ergonomic comfort. The stem is an adjustable KALLOY AS-SUV model.

The tyres are SCHWALBE Marathon GG HS420 (50-559), fitted to Schürmann YAK Disc rims and supported by SHIMANO HB-MT400-B hubs at the front and SHIMANO Nexus SG-C70000-5D hubs at the rear.

The saddle is a ZECURE XL VL-6485 model and the seatpost is a LIMOTEC A3Z suspension dropper post (140x34.9mm), which provides additional comfort. Other features include SKS PET A56 mudguards, a Kettler Quadriga chain guard, an URSUS Jumbo Evo kickstand, an ABUS lock and a MonkeyLoad Carrier luggage rack.

The e-bike is powered by a Bosch Cargo Line motor (Smart System) with a top speed of 25 km/h and a torque of 85 Nm. The battery is a Bosch PowerTube Horizontal 625 with a capacity of 625 Wh, managed via the Bosch Intuvia 100 display.

In summary, the QUADRIGA CARGOLINE 5G BELT is a powerful and well-equipped e-bike that is ideal for transporting heavy loads, whilst offering comfort, safety and reliability.
