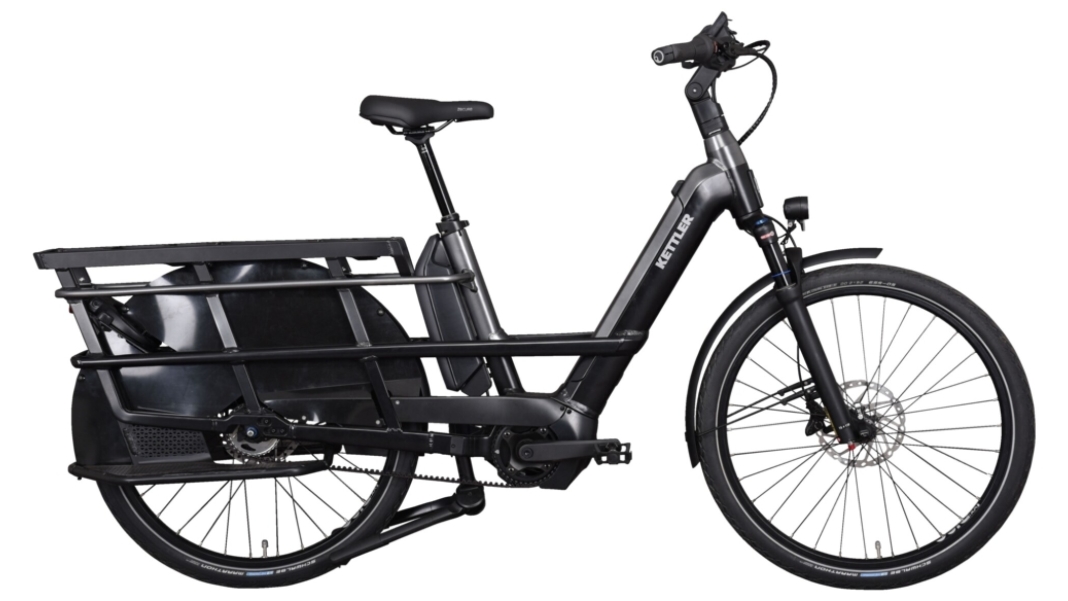

Kettler QUADRIGA CARGOLINE 5G BELT

The "QUADRIGA CARGOLINE 5G BELT" model from Kettler, launched in 2022, offers a wide range of technical features and specifications that make it a high-quality and versatile cargo bike. Priced at EUR 5,099, this model is aimed at discerning users who value quality and functionality.

The bike’s frame is made of aluminium and supports a maximum gross weight of up to 180 kg. This makes the QUADRIGA CARGOLINE 5G BELT ideal for transporting heavy loads. The braking system is fitted with high-quality components from SHIMANO. The SHIMANO BR-MT420 is used at the front and the SHIMANO BR-MT410 / 2-piston at the rear. Both brake levers are of the SHIMANO BL-MT402-3A type, ensuring consistent and reliable braking performance. The brake discs each measure 180 mm (front: SHIMANO SM-RT64, rear: SHIMANO RT-EM600).

The bike is fitted with a SHIMANO Nexus SL-C7000-5D gear lever and offers a total of 5 gears. The fork is an SR SUNTOUR Zeron35-Boost with 80 mm of travel, ensuring smooth suspension and a comfortable ride. Optimal visibility is ensured by the FUXON FF-100 EB / FFB-80 front light, with a luminous intensity of 100 lux, and the FUXON RZ-100 EB rear light.

The ZECURE VP-658 pedals and the SAMOX crankset are robust and durable. The drivetrain features the GATES® CDX system with a GATES® Pulley Inter 5, 32T sprocket and a GATES® CDX 137T belt in black. The HB-SM7 handlebars and ERGON GC10-Nexus grips offer ergonomic handling, whilst the KALLOY AS-SUV stem and FSA No. 55R (1.5-inch) headset ensure stability.

The Schürmann YAK Disc rims are fitted with SCHWALBE Marathon GG HS420 tyres (50-559), which are renowned for their durability and puncture resistance. The spokes are black (Spoke 2.0 blk). The hubs are also by SHIMANO (front: HB-MT400-B, rear: Nexus SG-C70000-5D).

The ZECURE XL VL-6485 saddle and the LIMOTEC A3Z suspension seatpost with height adjustment (140x34.9mm) offer a high level of comfort. The saddle is secured using a seat clamp (38.6mm). SKS PET A56 mudguards and a Kettler Quadriga chain guard protect against dirt and wet conditions. The URSUS Jumbo Evo kickstand ensures the bike stands securely.

An ABUS lock is integrated for added security. The IRack 2 luggage rack offers ample space for luggage or shopping. The model is powered by a Bosch Cargo Line Cruise motor with 85 Nm of torque and a Bosch PowerTube Vertical 625 battery with a capacity of 625 Wh. The Bosch KIOX display provides all the key information at a glance.

Overall, the QUADRIGA CARGOLINE 5G BELT represents a well-thought-out combination of performance, comfort and safety, making it an excellent choice for urban cargo transport.
