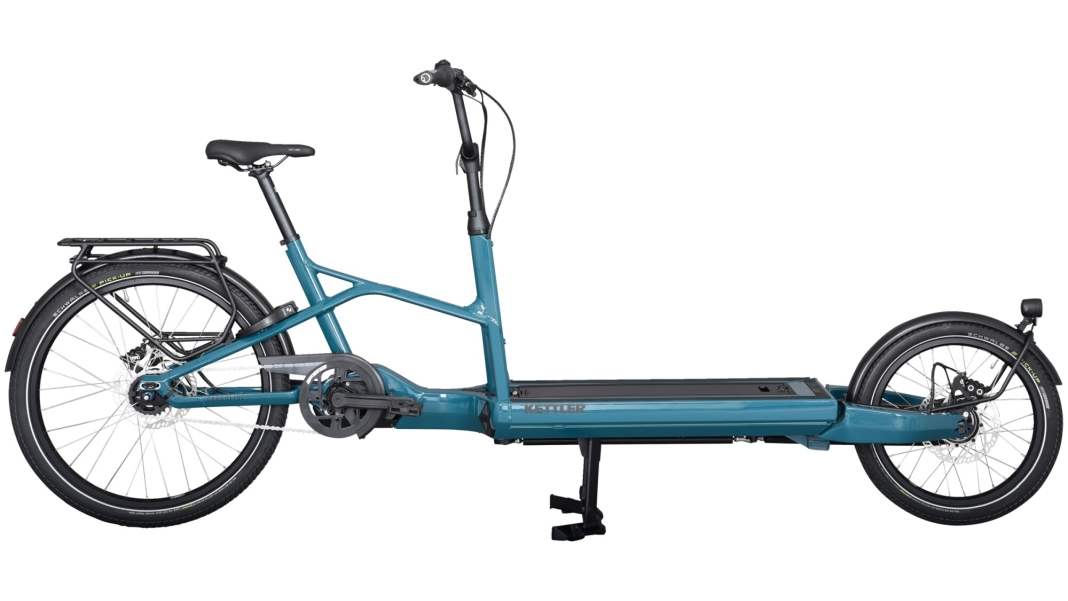

Kettler KETTLER CARGOLINE 5 800

The "KETTLER CARGOLINE 5 800" model from Kettler, released in 2023, is a high-quality cargo bike characterised by its robust construction and high-performance features. The price for this model is 7,499 EUR. The bike’s frame is made of aluminium and offers a maximum payload of up to 250 kg, whilst the bike’s own weight is 47 kg.

Reliable braking performance is provided by the MAGURA MT5 brakes at both the front and rear, each fitted with 4-piston calipers. The front brake disc is a MAGURA Elian Disc with a diameter of 220 mm, whilst the rear brake disc is a MAGURA MDR-C with a diameter of 180 mm. The brake levers are also by MAGURA and feature a 4-finger operation.

The bike is fitted with a SHIMANO Nexus SL-C7000-5 shifter and a 5-speed gear system. The bike’s fork, the Kettler Cargoline fork, features elastomer suspension with 45 mm of travel. Lighting is provided by the FUXON FF-100 front light (100 lux) and the FUXON R-Glow EB rear light.

The pedals are ZECURE VP-831P, and the crankset is an FSA CK-320. The sprocket is a SHIMANO Nexus CS-7000 with 30 teeth, and power is transmitted via a KMC chain. The handlebars and stem are from the Kettler Cargoline range and are fitted with ERGON GP1 grips. The headset is an FSA No. 7B Cargoline.

The tyres are SCHWALBE Pick-Up Performance (55-559 / 55-406), fitted to Ryde Andra 40 rims (20-inch front, 26-inch rear), with Spokes 2.0 blk spokes. The front hub is an Elian steering hub, whilst the rear hub is a SHIMANO Nexus SG-C7000-5D.

The saddle is a ZECURE L VL-6483, attached to an SP216 seatpost (34.9x350mm) and secured with a seat clamp (38.6mm). The bike is fitted with Curana Apollo 65 mudguards and a Horn Catena A08 Cargo chain guard. A Kettler Cargoline stand ensures stability when parking the bike, and an ABUS lock provides additional security.

The model’s luggage rack is specially designed for the Cargoline series. The bike is powered by a Bosch Cargo Line motor (Smart System) with an output of 25/85 Nm. The battery is a Bosch PowerTube Vertical with a capacity of 625 Wh, and the display is a Bosch LED Remote.

In summary, the KETTLER CARGOLINE 5 800 offers an impressive combination of stability, performance and practical features, making it an excellent choice for transporting heavy loads in urban environments.
