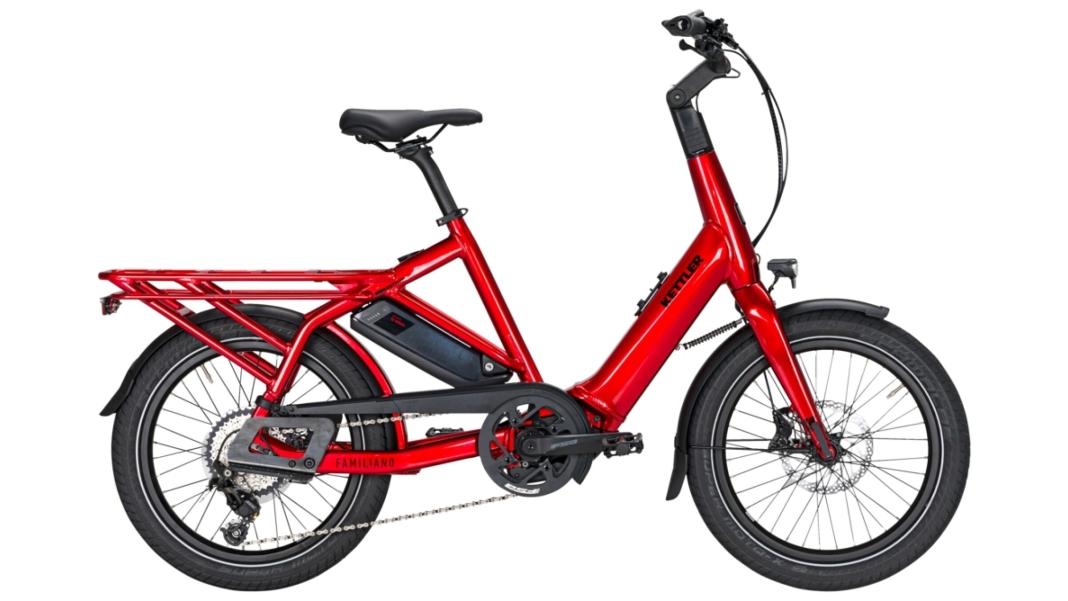

Kettler FAMILIANO C-10

The “FAMILIANO C-10” model from the “Kettler” brand, released in 2022, is a high-quality e-bike available for 4,299 EUR. It is fitted with a robust aluminium frame and has a maximum permissible weight of 180 kg, whilst the bike itself weighs 25 kg.

The FAMILIANO C-10’s braking system consists of a SHIMANO BR-MT420 brake at the front and a SHIMANO BR-MT400 2-piston brake at the rear. The brake levers for both wheels are SHIMANO BL-MT402-3A. The brake discs are also from SHIMANO, with an SM-RT30 180mm disc at the front and an RT-EM300 180mm disc at the rear.

Gear shifting is provided by a SHIMANO Saint RD-M820 10-speed system, controlled via the SHIMANO Deore SL-T6000 shifter. The bike is fitted with a rigid fork and features a FUXON F-130 EB front light with 30 lux and a FUXON RL-Mini EB rear light.

The pedals on this model are ZECURE VP-658, and the crankset is an FSA-CK200. The cassette is a SHIMANO CS-HG50 with 11-36T, and the drivetrain uses a KMC E10S chain. The handlebars are SATORI Alloy, and the grips are Velo VLG-1551-AD3. The stem is a SATORI Up2+, and the headset is an FSA No.83R0 with a diameter of 1.5 inches.

The bike is fitted with RYDE Andra 40/20 rims and SCHWALBE Super Moto-X GG tyres in size 62-406. The spokes are black (Spoke 2.0 blk), and the hubs are FORMULA CL-51QR at the front and FORMULA ECT-148S at the rear.

The saddle is a Selle Royale Look In, mounted on a KALLOY SP-HD001 seatpost with a diameter of 31.6 mm. The saddle is secured using a quick-release clamp (Seatclamp w. quick release) with a diameter of 34.9 mm.

Additional features include SKS CAB mudguards, a HEBIE chain guard, a StandWell SW-MA009B kickstand and an AXA Victory lock. The luggage rack is an IRack 2 model.

The FAMILIANO C-10 is powered by a Bosch Cargo Line Cruise motor with a top speed of 25 km/h and a torque of 85 Nm. The battery is a Bosch PowerPack with a capacity of 500 Wh, and the display is a Bosch Purion LCD.

In summary, the FAMILIANO C-10 offers a combination of robust design, high-quality components and powerful electric assistance, making it an excellent choice for discerning users.
