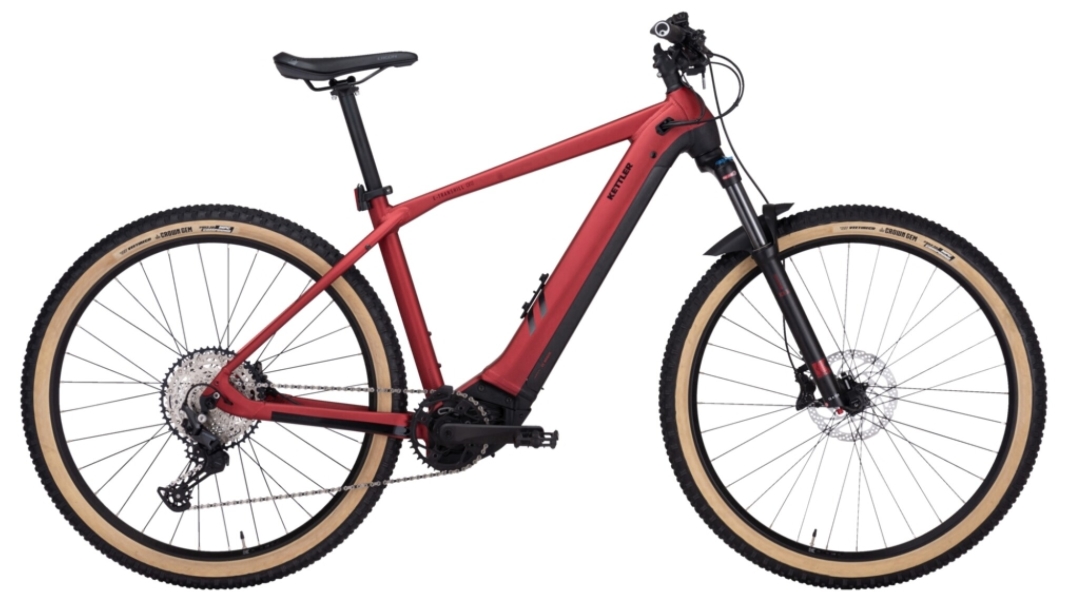

Kettler E-TRANSHILL CX12

The Kettler E-TRANSHILL CX12, launched in 2022, is a high-quality e-bike designed for discerning riders. Priced at EUR 4,399, it offers a wide range of technical features and specifications designed to deliver both performance and comfort.

The frame of the E-TRANSHILL CX12 is made of aluminium, which contributes to a sturdy yet lightweight construction. The maximum permissible weight is 130 kg, whilst the bike’s own weight is 25 kg. This combination ensures a robust and reliable ride.

The e-bike’s braking system is fitted with high-quality components from SHIMANO. A SHIMANO BR-MT420 brake is fitted at the front, whilst a SHIMANO BR-MT410 2-piston brake is used at the rear. Both brakes are operated using SHIMANO BL-MT402 brake levers. The front and rear brake discs have a diameter of 180 mm (SHIMANO SM-RT30 at the front and SHIMANO RT-EM300 at the rear), ensuring excellent braking performance.

The E-TRANSHILL CX12 is fitted with a 12-speed SHIMANO Deore RD-M6100 rear derailleur, controlled via the SHIMANO Deore SL-M6100 shift lever. This drivetrain offers precise and smooth gear changes, which are particularly advantageous on challenging terrain. The cassette is a SHIMANO SLX CS-M7100 with a 10–51T range, and power is transmitted via a KMC E12S chain.

Suspension is provided by an SR SUNTOUR XCR34 Air fork with 120 mm of travel, ensuring added comfort and control on uneven terrain. The pedals are Wellgo ZZE-01M, and the crankset is an FSA CK-220.

The handlebars are a KALLOY HB-RB12L-ENM model, complemented by ERGON GA30 grips for added comfort. The stem is a KALLOY AS-ZG4, and the headset is an FSA No. 57SC with a 1-1/8-inch thread. The rims are RYDE Disc 30, and the tyres are VeeRubber Crown Gem (66-584). The spokes are 2.0 blk, and the hubs are SHIMANO HB-MT400 at the front and SHIMANO FH-MT401 at the rear.

The saddle is an ERGON SME-Mountain Core Prime Women M/L, mounted on a KALLOY SP-368 seatpost with a diameter of 30.9 mm. The saddle is clamped in place using a KALLOY QR-ML3 with a diameter of 35 mm.

At the heart of the e-bike is the Bosch Performance Line CX motor (Smart System) with a torque of 25/85 Nm. The motor is powered by a Bosch PowerTube vertical battery with a capacity of 750 Wh. The display is a Bosch KIOX 300, which clearly shows all the key information.

In summary, the E-TRANSHILL CX12 from Kettler offers an impressive combination of performance, comfort and advanced technology, making it an excellent choice for discerning riders.
