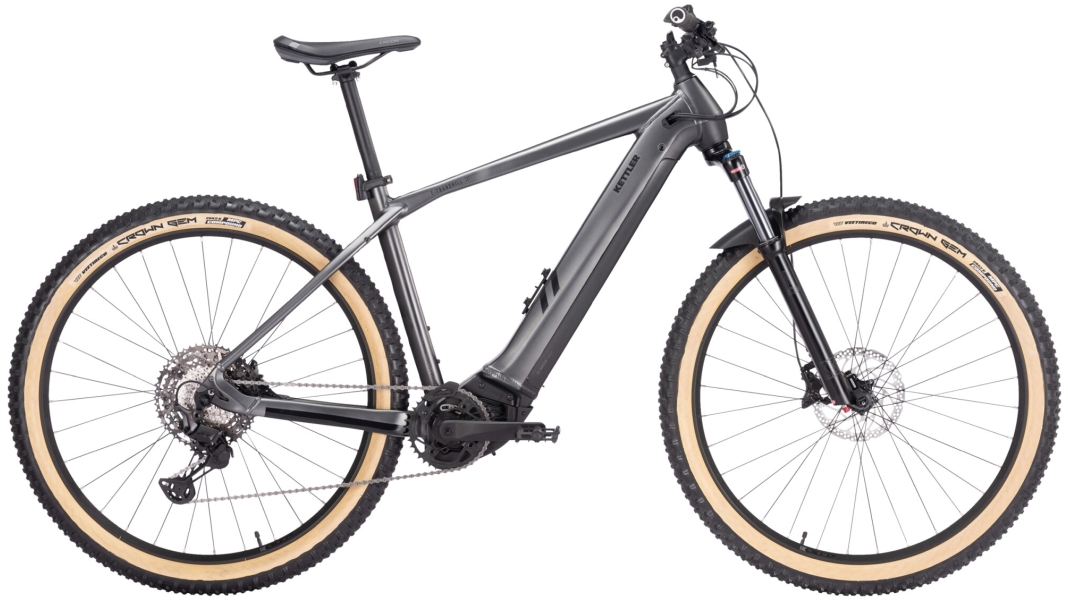

Kettler E-TRANSHILL CX11 LG

The "E-TRANSHILL CX11 LG" model from Kettler, released in 2023, is a high-quality e-bike that stands out for its robust technical specifications and features. The bike is priced at 4,799 EUR.

The frame of the E-TRANSHILL CX11 LG is made of aluminium, offering a good balance between stability and weight. With a maximum load capacity of 130 kg and a kerb weight of 25 kg, the bike is suitable for both everyday use and more demanding rides.

The bike’s braking system is fitted with SHIMANO BR-MT420 brakes at the front and SHIMANO BR-MT410 2-piston brakes at the rear. The brake levers for both wheels are SHIMANO BL-4100. The front brake discs are SHIMANO SM-RT30 with a diameter of 180 mm, and the rear discs are SHIMANO RT-EM300, also with a diameter of 180 mm.

The E-TRANSHILL CX11 LG’s gear system is based on the SHIMANO RD-M8130, controlled by the SHIMANO SL-M8130 shifter, and offers a total of 11 gears. The fork is an SR SUNTOUR XCR-34 Air with 120 mm of travel, ensuring a comfortable ride even on uneven terrain.

The bike is fitted with wellgo ZZE-01M pedals and an FSA CK-220 crankset. The cassette is a SHIMANO CS-LG600-11 with a range of 11–50T. Power is transmitted via the SHIMANO CN-LG500 chain.

The handlebars are KALLOY HB-RB12L-ENM, complemented by ERGON GA30-S grips and a KALLOY AS-ZG4 stem. The headset is an FSA NO. 57SC, which provides additional stability. The tyres are Veerubber Crown Gem (66-622), fitted to Ryde Disc 30 rims with Spoke 2.0 blk spokes. The front hub is a SHIMANO HB-MT400, whilst the rear hub is a Formula CL-2241QR.

The saddle is an ERGON Core Prime Men E-Mountain S/M, mounted on a KALLOY SP-368 seatpost with a 38.6 mm clamp.

Power is provided by a Bosch Performance Line CX (Smart System) motor with an output of 25/85 Nm, powered by a Bosch PowerTube Vertical 750 battery with a capacity of 750 Wh. The display is a BOSCH LED Remote, which allows for simple and intuitive control.

Overall, the Kettler E-TRANSHILL CX11 LG offers a comprehensive range of features, making it suitable for both leisure use and more demanding rides.
