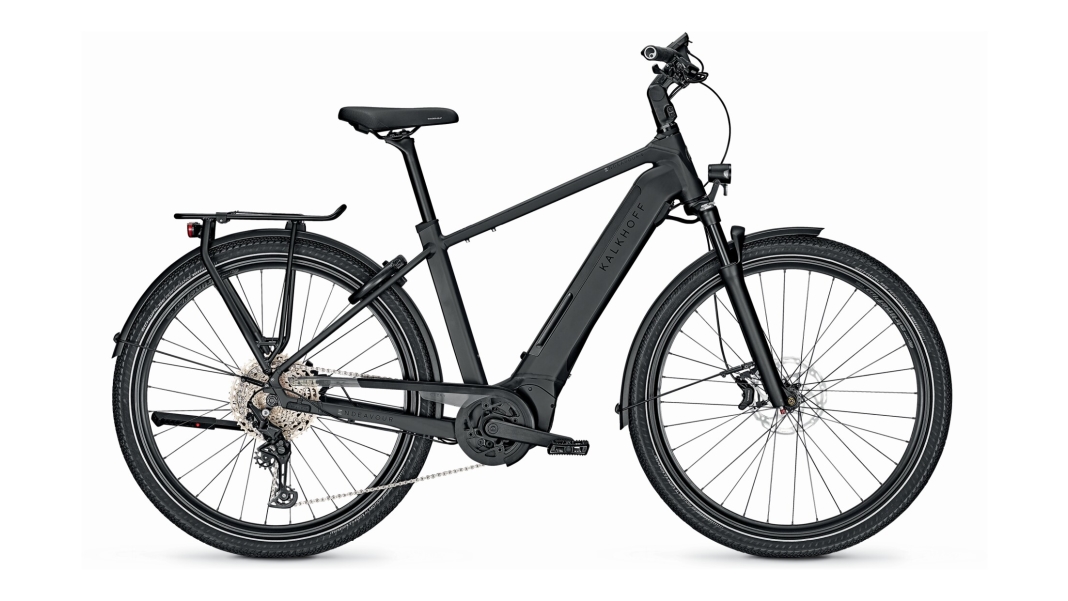

Kalkhoff ENDEAVOUR 5.B MOVE+

The 2022 Kalkhoff ENDEAVOUR 5.B MOVE+ is a high-quality e-bike designed for discerning riders. Priced at 4199 EUR, it offers a wide range of technical features that ensure both comfort and performance. The bike’s frame is made from IntegrAle 0.6 aluminium, ensuring a robust yet lightweight structure.

Braking performance is provided by Tektro M530 hydraulic disc brakes, featuring a 4-piston caliper at the front and a 2-piston caliper at the rear, along with 180 mm brake discs on both wheels. The drivetrain is a 10-speed Shimano Deore Linkglide, which enables precise and reliable gear selection. The shift lever is also from Shimano Deore, ensuring consistency and compatibility within the drivetrain.

The Suntour Mobie25 Air fork, featuring a lockout and a 15 mm thru-axle system, ensures smooth suspension and stability across a variety of terrains. The e-bike is lit by the Herrmans H-Black MR8 LED front light and the Trelock COB Line LED rear light, which ensure good visibility and safety on the road.

For added comfort, the pedals are fitted with an anti-slip coating and reflectors. The 170 mm aluminium crankset is complemented by the Shimano Deore sprocket and the Shimano CN-LG50 drivetrain. The Concept EX Ergo Riser handlebars and Ergon GA30 grips offer ergonomic handling, whilst the Concept EX adjustable stem allows for individual customisation.

The Road Airline Plus rims with eyelets and Schwalbe Marathon Almotion Performance tyres ensure a durable and reliable ride. The hubs are Shimano Alivio MT400 models with different axle dimensions at the front and rear, which further improves stability. Niro spokes contribute to the overall strength of the wheels.

The Selle Royal Essenza Plus saddle and the Concept EX aluminium seatpost offer comfort even on longer journeys. Plastic mudguards with edge protection and an aluminium luggage rack with the Snap-IT system round off the specification.

The bike is powered by a Bosch Performance Line CX motor rated at 36 V / 250 W / 85 Nm, controlled via the Bosch Intuvia LCD display with control panel and assist level selector. The bike’s geometry is characterised by dimensions such as a reach of 396 mm, a stack of 669 mm, a seat tube length of 480 mm and a top tube length of 601 mm, which enable a balanced riding position. Other dimensions include a head tube angle of 71 degrees, a seat tube angle of 73 degrees, a head tube length of 170 mm, a chainstay length of 494 mm, a bottom bracket drop of 65 mm, fork offset of 44 mm, standover height of 567 mm, fork installation height of 484 mm and a wheelbase of 1140 mm all contribute to stable riding dynamics.
