i:SY E5 ZR F

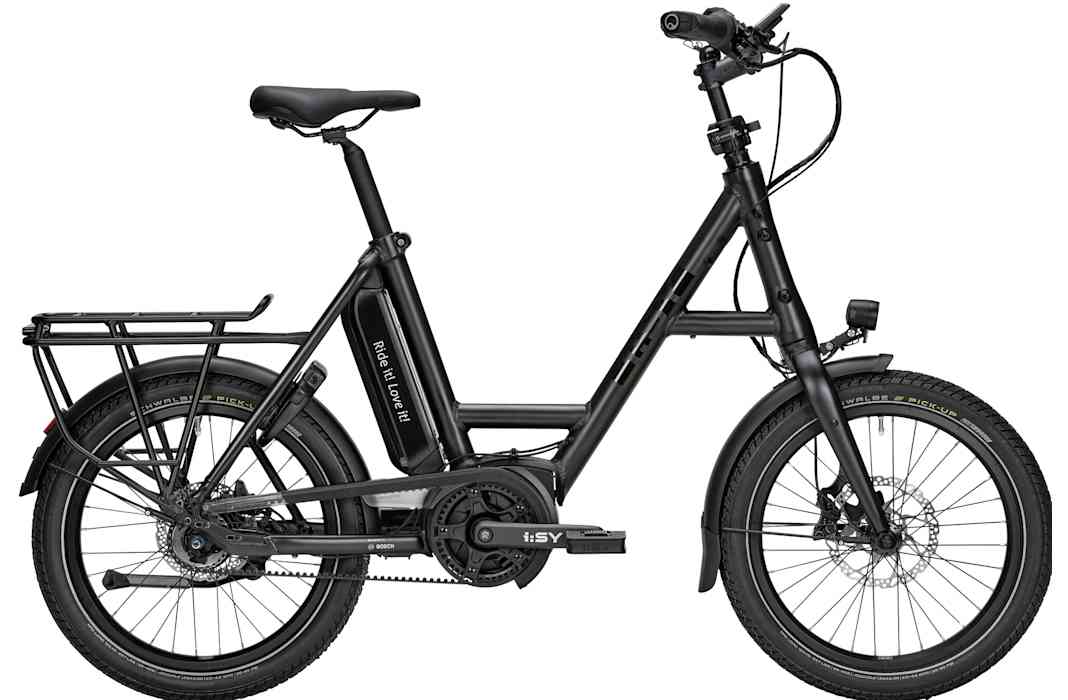

The “E5 ZR F” model from the i:SY brand, released in 2023, is a compact and versatile e-bike priced at 4,399 EUR. It features an original i:SY Compact 47 cm unisex frame, which supports a maximum permissible weight of 150 kg. The braking system consists of TEKTRO HD-T532 hydraulic 4-piston disc brakes with 3-finger brake levers; the front brake disc has a diameter of 180 mm and the rear one 160 mm.

The bike is fitted with a SHIMANO Nexus 5-speed gear system with a freewheel, operated via a SHIMANO Nexus Revo shifter. The fork is an original i:SY Kompakt rigid fork, which ensures stability. For lighting, the e-bike is fitted with a FUXON FF-100HB front light, which offers a 100 lux LED with high beam, and a FUXON R-Glow S LED rear light.

The i:SY anti-slip folding pedals and the i:SY e-bike 160 mm crankset with a 28T chainring ensure efficient power transfer. Power is transmitted via a Gates CDX Centretrack toothed belt. The handlebars have a 30° angle and are fitted with ERGON GC10 ergonomic grips. The stem measures 70 mm and the headset is also from i:SY.

The RYDE Andra 40 Disc rims, featuring 32 Niro 2.0 mm spokes, are fitted with SCHWALBE Pick Up Super Defense tyres in size 60-406. The hubs are SHIMANO Deore HB-M6000 models with Centre Lock. The saddle is a ZECURE Trekking model with Hydro Foam in size L, mounted on an i:SY seatpost with a length of 415 mm and a diameter of 34.9 mm.

SKS Bluemels 20-inch mudguards, 65 mm wide, protect against splashes, whilst the HORN Catena chain guard covers the drivetrain. A PLETSCHER Kickstand Comp40 Flex kickstand ensures the bike stands securely, and an ABUS 4750L NR frame lock provides additional theft protection. The i:SY Carrier luggage rack is MonkeyLoad-ready and offers flexible transport options.

The e-bike is powered by a BOSCH Performance Line motor with an output of 36V / 250 W, which is powered by a BOSCH PowerPack 545 battery with a capacity of 545 Wh. The BOSCH Intuvia 100 display offers a user-friendly interface for controlling the system, and the BOSCH Standard Charger 4 A ensures efficient battery charging. This model combines technical sophistication with practical features and is ideal for both everyday use and longer rides.
