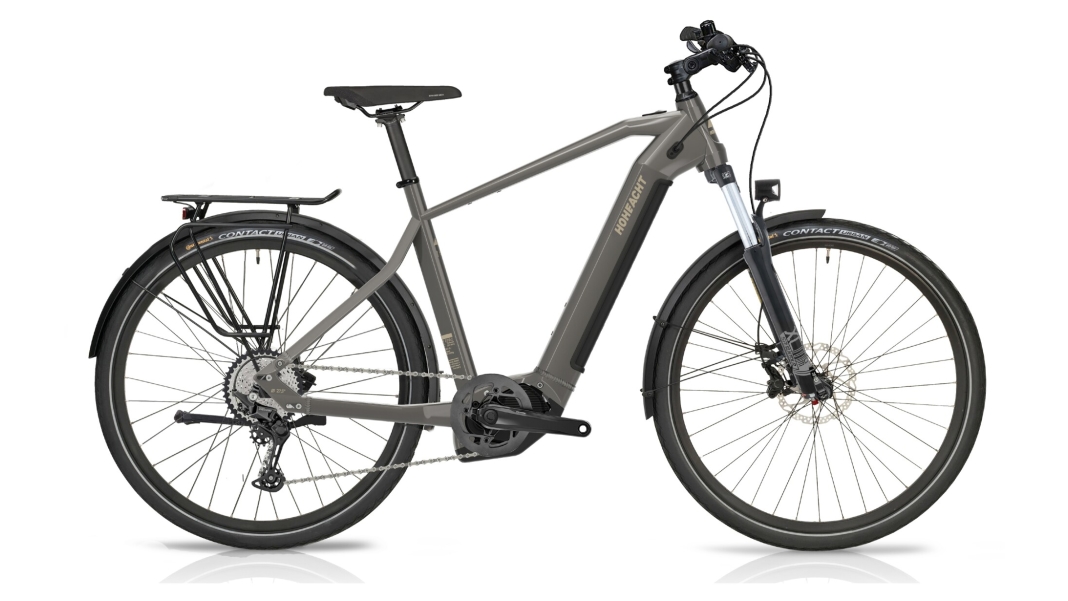

HoheAcht Pasio Terra Eifelmoos

The “Pasio Terra Eifelmoos” model from the “HoheAcht” brand, released in 2021, is a well-equipped e-bike priced at 3,599 euros. The frame is an aluminium diamond frame, which ensures stability and durability. The braking system comprises Shimano BR-MT200 brakes at the front and rear, each with two pistons, which ensure reliable braking performance. The drivetrain is a Shimano Deore 10-speed system, which, in combination with the Shimano Deore SL-M6000 shift lever, enables precise and smooth gear changes.

Lighting is provided by a Herrmans H-Black MR8 E front light with an output of 180 lumens, operating at 6–12 V, and a Herrmans H-Cargo e-bike rear light with an integrated reflector. The pedals are Marwi SP-880 models with a non-slip surface, ensuring a secure grip. The crankset consists of a Shimano Steps FC-EM600 with a length of 170 mm and is combined with a Shimano Steps EP8 motor with 38 teeth. The cassette is a Shimano Deore CS-M4100 with a range of 11–42 teeth, whilst power is transmitted via a KMC e10 EPT chain.

The handlebars are made from H8 aluminium, have a diameter of 31.8 mm and a width of 700 mm. The grips are Herrmans Line DD36 models, which ensure comfort on longer rides. The stem is also made from H8 aluminium, measures 95 mm and is adjustable by 60°, allowing for individual adjustment of the riding position. The headset is an Acros with industrial-grade bearings, ensuring precise steering.

The rims are Mach1 Trucky 30 models in 27.5” size, and the tyres are Continental Ruban, sized 58-584, with reflective strips for improved visibility. The hubs are Formula Disc models with Centre Lock systems, measuring 15x100 mm at the front and 12x148 mm at the rear, each with 32 holes. The saddle is a Selle Royal Essenza Plus model, mounted on an H8 aluminium seatpost measuring 31.6 mm x 350 mm.

Additional features include SKS A 69 R mudguards in black, an Atran Velo Rex HV kickstand with a 40 mm mounting, and an Atran Velo Tour 365 H-Cargo luggage rack, which can carry a load of up to 27 kg. At the heart of the drive system is the Shimano EP8 motor with a torque of 85 Nm, supported by a powerful battery with a capacity of 630 Wh, which ensures an extended range.
