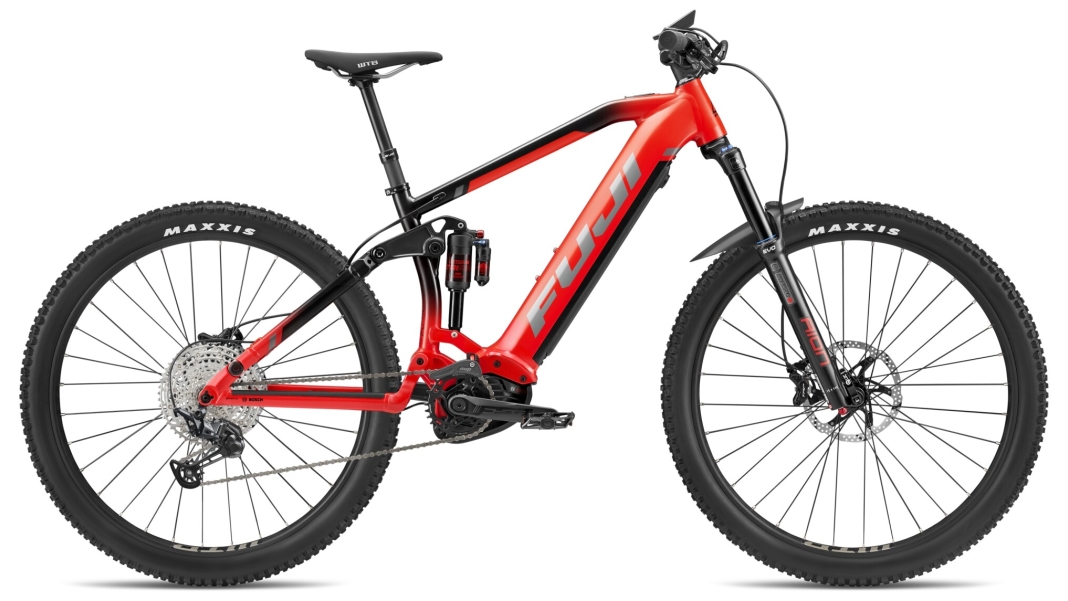

Fuji BLACKHILL EVO 29 1.3
Note: This text is a service for our readers and was automatically generated from the data in our bike database.
The "BLACKHILL EVO 29 1.3" model from Fuji, released in 2021, is a high-performance e-mountain bike designed for demanding off-road adventures. Priced at 4799 EUR, it offers an impressive combination of advanced technology and robust features. The frame is made from Fuji A6-SL aluminium and is designed to accommodate a Bosch Power Tube battery with a capacity of 625Wh. The frame is fitted with a 4-bar suspension system and features a tapered head tube design and a Boost 148x12mm thru-axle.
The braking system consists of TRP Slate-T4 hydraulic disc brakes with 4-piston calipers and 203mm rotors, ensuring powerful and reliable braking performance. The drivetrain is provided by Shimano SLX components, whilst the shift lever is from the Shimano Deore range, enabling precise and smooth gear changes. The SR Sun Tour Aion Air RC-PCS fork, with its 130mm travel and adjustable damping settings, offers excellent control on uneven terrain. The Suntour TriAir 3-CR shock absorber with lockout function completes the suspension system.
The drivetrain is powered by a fourth-generation Bosch Performance Line CX motor, which delivers powerful assistance with 250W of power and 85Nm of torque. Power is supplied by the Bosch Power Tube battery with a capacity of 625Wh, which is controlled via a Bosch Kiox display featuring Gorilla Glass. The display also offers a USB charging function.
The Oval Concepts 205 handlebars and WTB Waffle grips offer comfort and control, whilst the KS LEV-SI dropper seatpost with remote control allows for variable saddle height. The Maxxis Minion DHF and DHR II tyres are tubeless-compatible and offer excellent grip on a variety of surfaces. The wheelset consists of robust Formula e-MTB hubs and WTB ST i35 TCS 2.0 rims.
All in all, the BLACKHILL EVO 29 1.3 is a well-equipped e-mountain bike that is suitable for both experienced riders and beginners looking for a reliable and high-performance companion for their off-road adventures.
Tests & Reviews
Equipment
| Brakes | TRP Slate-T4, 4-piston hydraulic disc brakes, 203mm rotors |
| Brake levers | TRP Slate-T4, 2-finger lever |
| Frame | Fuji A6-SL with a down tube for an integrated Bosch Power Tube 625–500 Wh battery, Bosch Gen.4 motor cover, 4-bar suspension system, tapered 1 1/8'' – 1.5'' head tube, post disc mount, Boost 148x12mm cold-forged dropout and replaceable hanger |
| Drivetrain | Shimano SLX |
| Shift levers | Shimano Deore |
| Fork | SR Sun Tour Aion Air RC-PCS 29, low-speed compression and rebound adjustment, tapered alloy steerer, Boost 110 x 15 mm thru-axle, 130 mm travel, 35 mm stanchions |
| Rear shock | Suntour TriAir 3-CR, lockout |
| Crankset | FSA CK-745/IS, Bosch Gen. 4, 32T, with chain guard, for Boost |
| Drive | Shimano Deore with QuickLink, 12-speed |
| Headset | FSA NO.57B, 1 1/8” – 1.5”, ACB bearings |
| Handlebar | Oval Concepts 205 flat bar, 6061 alloy, +/- 5mm rise, 9-degree sweep, 31.8mm clamp, width: 760m |
| Grips | WTB Waffle, single LO, dual-density Kraton |
| Stem | Oval Concepts 600AM, 3D-forged 6061 alloy, 0 degrees, 31.8mm clamp, length: 17”, 19” – 35mm, 21” – 45mm |
| Saddle | WTB High Tail Trail, Comp, e-bike-specific saddle, steel rail |
| Seatpost | KS LEV-SI dropper post, 30.9 mm, remote, tubeless-ready: 17”, 19” – 125 mm, 21” – 150 mm |
| Wheelset | Formula e-MTB 32H CL hubs, 14/15g stainless steel spokes, WTB ST i35 TCS 2.0 double-wall 27.5” tubeless-compatible rims |
| Tires | Maxxis Minion DHF (front), Minion DHR II (rear), 27.5” x 2.8”, 60 TPI, EXO, tubeless-ready |
| Motor manufacturer / model | Bosch Performance Line CX, 4th-generation mid-drive motor, 250W rated power, 85Nm of torque, maximum assist of 25km/h |
| Display | Bosch Kiox LED display, USB charging port, Gorilla Glass |
| Battery | Bosch Power Tube 625Wh with 4A charger |
