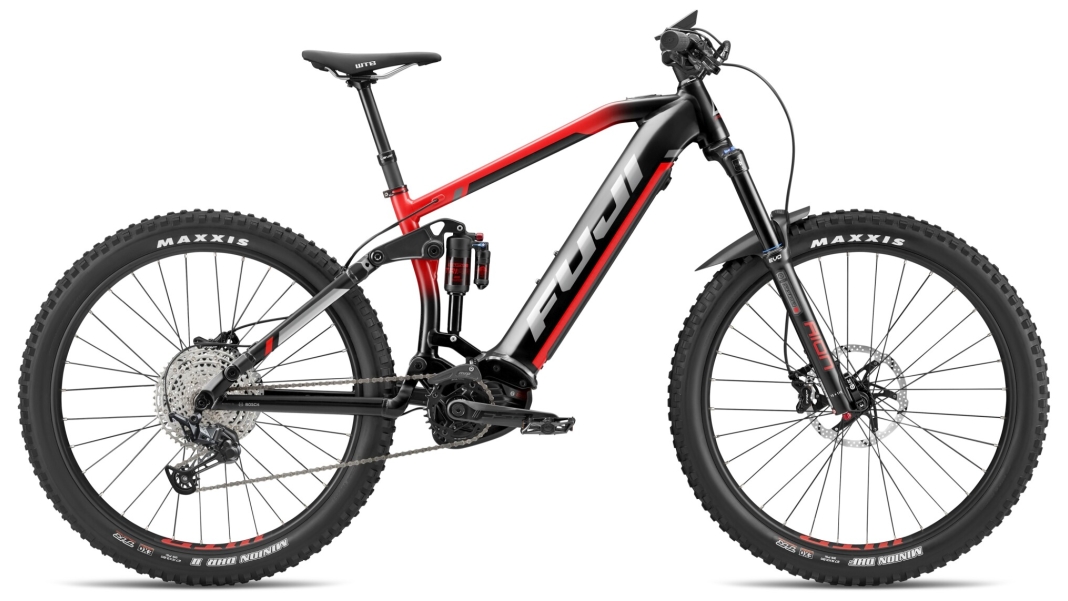

Fuji BLACKHILL EVO 27,5+ 1.3
Note: This text is a service for our readers and was automatically generated from the data in our bike database.
The 2021 "BLACKHILL EVO 27.5+ 1.3" model from Fuji is a high-quality e-mountain bike that stands out for its technical features and well-thought-out design. The price for this model is 4,799 EUR. The frame is made from Fuji A6-SL aluminium and is specifically designed to accommodate a Bosch Power Tube battery with a capacity of 625–500 Wh. The design features a 4-bar suspension system, a tapered head tube and Boost 148x12mm dropouts with a replaceable derailleur hanger.
Braking power is provided by TRP Slate-T4 hydraulic disc brakes with 4 pistons and 203mm rotors, controlled via TRP Slate-T4 brake levers with two-finger operation. Gear changes are handled by a Shimano SLX system, with shifting carried out via Shimano Deore shifters. The SR Suntour Aion Air RC-PCS fork offers 150mm of travel and allows for adjustments to the low-speed compression and rebound damping. The Suntour TriAir 3-CR rear shock features a lockout function for more efficient riding across different terrains.
The drivetrain is supported by an FSA crankset with a 32-tooth chainring, and the Shimano Deore 12-speed drivetrain ensures precise power transfer. The handlebars are Oval Concepts 205 flat handlebars made from 6061 aluminium, fitted with WTB Waffle grips. The Oval Concepts stem is also made from robust 6061 aluminium.
The tyres are Maxxis Minion DHF and Minion DHR II, each measuring 27.5” x 2.8” and tubeless-compatible. The wheelset features Formula e-MTB hubs and WTB ST i35 TCS 2.0 rims, which are renowned for their stability and tubeless compatibility. The saddle is a WTB High Tail Trail model with steel struts, specially developed for e-bikes, whilst the seatpost is a KS LEV-SI dropper post with remote control.
The bike is powered by the powerful fourth-generation Bosch Performance Line CX motor, which delivers a rated power output of 250W and a maximum torque of 85Nm. The Bosch Power Tube battery, with a capacity of 625Wh, combined with a Bosch Kiox display, ensures user-friendly control and monitoring of the system. The display features Gorilla Glass and a USB charging port. With these features, the BLACKHILL EVO 27.5+ 1.3 is ideally suited to demanding off-road rides and offers an excellent combination of performance and comfort.
Tests & Reviews
Equipment
| Brakes | TRP Slate-T4, 4-piston hydraulic disc brakes, 203mm rotors |
| Brake levers | TRP Slate-T4, 2-finger lever |
| Frame | Fuji A6-SL with a down tube for an integrated Bosch Power Tube 625–500 Wh battery, Bosch Gen.4 motor cover, 4-bar suspension system, tapered 1 1/8'' – 1.5'' head tube, post disc mount, Boost 148x12mm cold-forged dropout and replaceable hanger |
| Drivetrain | Shimano SLX |
| Shift levers | Shimano Deore |
| Fork | SR Suntour Aion Air RC-PCS 27.5+, low-speed compression and rebound adjustment, tapered alloy steerer tube, Boost 110 x 15 mm thru-axle, 150 mm travel, 35 mm stanchions |
| Rear shock | Suntour TriAir 3-CR, lockout |
| Crankset | FSA CK-745/IS, Bosch Gen. 4, 32T, with chain guard, for Boost |
| Drive | Shimano Deore with QuickLink, 12-speed |
| Headset | FSA NO.57B, 1 1/8” – 1.5”, ACB bearings |
| Handlebar | Oval Concepts 205 flat bar, 6061 alloy, +/- 5mm rise, 9-degree sweep, 31.8mm clamp, width: 760mm |
| Grips | WTB Waffle, single LO, dual-density Kraton |
| Stem | Oval Concepts 600AM, 3D-forged 6061 alloy, 0 degrees, 31.8mm clamp, length: 17”, 19” – 35mm, 21” – 45mm |
| Saddle | WTB High Tail Trail, Comp, e-bike-specific saddle, steel rail |
| Seatpost | KS LEV-SI dropper post, 30.9 mm, remote, travel: 17”, 19” – 125 mm, 21” – 150 mm |
| Wheelset | Formula e-MTB 32H CL hubs, 14/15g stainless steel spokes, WTB ST i35 TCS 2.0 double-wall 27.5” tubeless-compatible rims |
| Tires | Maxxis Minion DHF (front), Minion DHR II (rear), 27.5” x 2.8”, 60 TPI, EXO, tubeless-ready |
| Motor manufacturer / model | Bosch Performance Line CX, 4th-generation mid-drive motor, 250W rated power, 85Nm of torque, maximum assist of 25km/h |
| Display | Bosch Kiox LED display, USB charging port, Gorilla Glass |
| Battery | Bosch Power Tube 625Wh with 4A charger |
