Focus JAM² 6.7
Note: This text is a service for our readers and was automatically generated from the data in our bike database.

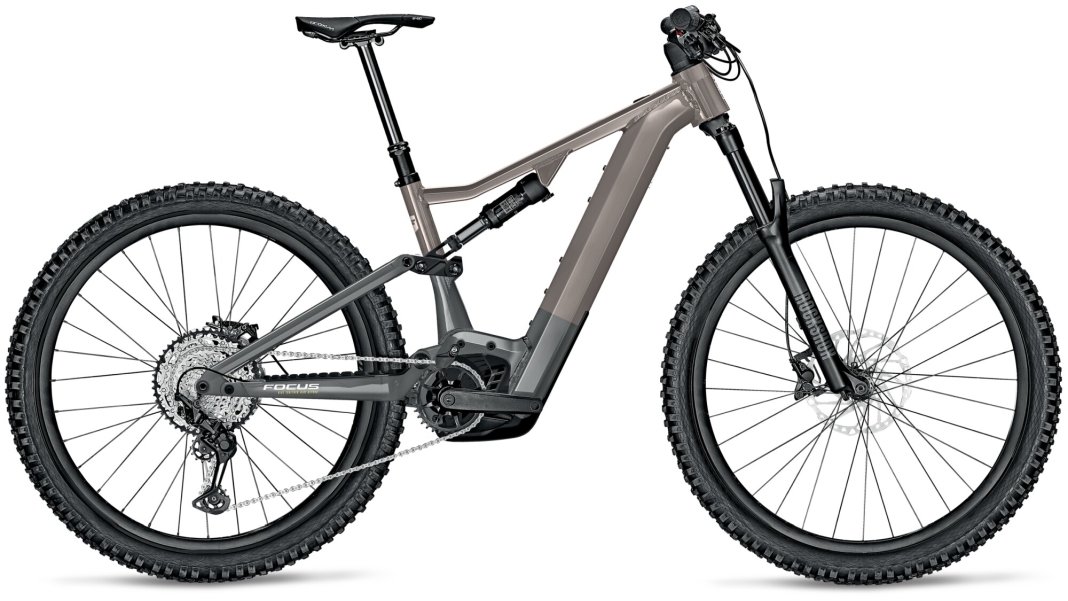

The Focus JAM² 6.7, released in 2023, is a versatile e-mountain bike characterised by its robust construction and high-quality components. The frame is made from 7005 hydroformed aluminium with 3D forging and offers 150 mm of suspension travel (F.O.L.D.), ensuring optimum damping. With a maximum load capacity of 150 kg, the bike is designed for challenging trails.
The JAM² 6.7’s braking system comprises Shimano MT520 hydraulic disc brakes, fitted with 203 mm rotors at both the front and rear. Gear changes are handled by a Shimano Deore RD-M5100 system with 12 speeds, controlled by the Shimano Deore M6100 shifter, enabling precise and smooth gear changes.
Suspension is provided by the DVO Diamant E3 fork with 160 mm of travel and the Rock Shox Deluxe Select rear shock with 150 mm of travel. This combination offers excellent control and comfort on rough terrain. The drivetrain is supported by the Samox EC40 ISIS crankset and the Shimano Deore CS-M6100 cassette, whilst the Shimano CN-LG50 chain ensures efficient power transfer.
The aluminium handlebars are 800 mm wide with a 30 mm rise and a 9° backsweep, enabling comfortable and controlled steering. The stem is an integrated FOCUS C.I.S. model made of aluminium, with a length of 50 mm.
The wheelsets consist of RODI TRYP30 rims fitted with Maxxis Minion DHF tyres, which provide excellent grip and stability. The hubs are Shimano MT410 models, with a 15x110 mm spacing at the front and 12x148 mm at the rear.
For added comfort, the bike is fitted with a Post Moderne Dropper Post seatpost, which allows for easy adjustment of the saddle height. The Selle Royal Groove saddle ensures a comfortable ride even on long journeys.
The e-bike’s drivetrain is powered by a Bosch Performance CX Gen4 motor with an output of 85 Nm and 250 W. The integrated Li-Ion downtube battery has a capacity of 625 Wh, providing sufficient power for long rides. The Bosch LED remote display offers simple operation and control over the bike’s electronics.
Priced at EUR 5,499, the Focus JAM² 6.7 offers excellent value for money for anyone looking for a powerful and well-equipped e-mountain bike.
Tests & Reviews
Equipment
| Brakes | Shimano MT520, hydraulic disc brake |
| Front brake disc | 203 |
| Rear brake disc | 203 |
| Brake levers | Shimano MT520, 4-piston, hydraulic disc brake |
| Frame | 7005 hydroformed aluminium, 3D forging, 150 mm F.O.L.D. kinematics, 148x12 mm thru-axle, internal cable routing, post-mount 203 mm |
| Drivetrain | Shimano Deore RD-M5100, 11-speed |
| Shift levers | Shimano Deore M6100, 12-speed |
| Number of gears | 12 |
| Fork | DVO Diamant E3, 110 x 15 mm, 44 mm rake |
| Rear shock | Rock Shox Deluxe Select, 210/55 mm, hardware: 25.0 x 25.0 mm |
| Fork travel (mm) | 160 |
| Rear shock travel (mm) | 150 |
| Crankset | Samox EC40 ISIS |
| Sprocket | Shimano Deore CS-M6100, 12-speed |
| Drive | Shimano CN-LG50 |
| Handlebar | Aluminium, 800 mm, rise: 30 mm, backsweep: 9° |
| Stem | FOCUS C.I.S. integrated, 50 mm, 0°, 35 mm, aluminium |
| Saddle | Selle Royal Groove |
| Seatpost | Post Modern dropper post PM-214, 34.9 mm |
| Rims | RODI TRYP30, 30-622 |
| Tires | Maxxis Minion DHF, EXO, 63-622 |
| Front hub | Shimano MT410, 15x110 mm |
| Rear hub | Shimano MT410, 12x148 mm |
| Spokes | Niro, black |
| Pedals | MTB, with reflector |
| Mudguards | plastic |
| Motor manufacturer / model | Bosch Performance CX Gen4, 85 Nm, 250 W |
| Display | Bosch LED Remote |
| Battery | Li-ion downtube, integrated, 36 V, 625 Wh, 17.4 Ah |
| Battery capacity (Wh) | 625 |
