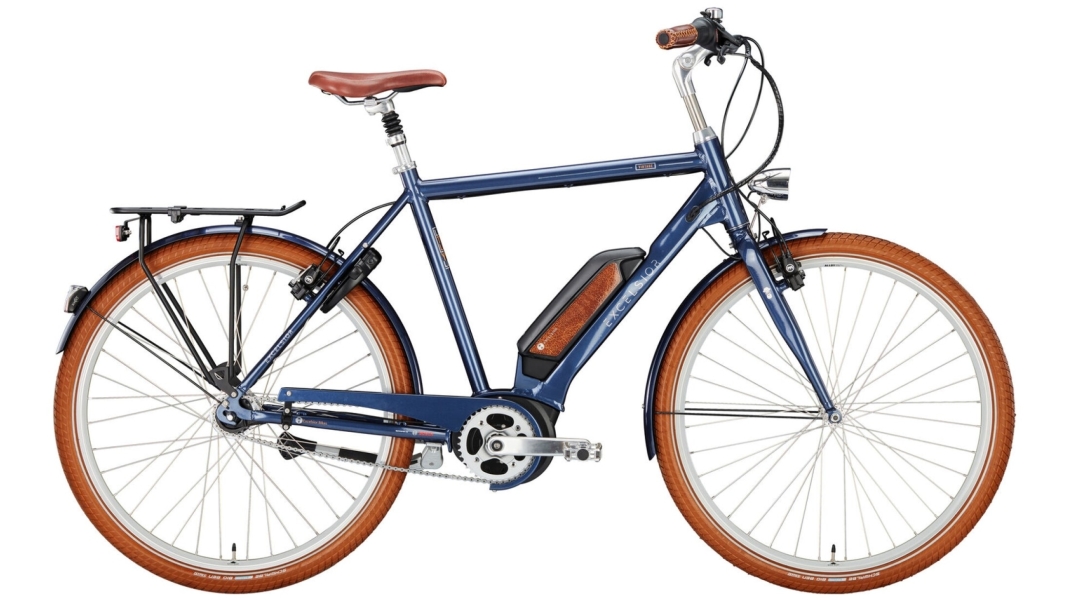

The “Vintage E Diamant” model from Excelsior, launched in 2024, offers a successful combination of classic design and modern technology. Priced at 2,699 EUR, it is aimed at users who value quality and style. The diamond-shaped aluminium frame measures 58 cm, ensuring stability and a comfortable ride. The maximum load capacity is 140 kg, whilst the bike itself weighs 24 kg.
The model is fitted with a MAGURA ‘HS-11’ braking system, which ensures reliable stopping power at both the front and rear. The 7-speed SHIMANO “Nexus” gear system allows for easy adaptation to different riding conditions. The gear lever is also by SHIMANO and offers precise gear selection.
Power is provided by a third-generation BOSCH “Active Line PLUS” mid-drive motor with an output of 250 W. This is supported by a BOSCH “Powerpack 400” lithium-ion battery with a capacity of 400 Wh. The BOSCH “Purion” display offers four assistance levels and a push-assist function, which enhances riding comfort.
The bike is fitted with an aluminium fork, ERGOTEC “Lady Town” handlebars and an adjustable ERGOTEC “Octopus 2” stem. The VELO “VLG-519” grips ensure a comfortable grip. The ABUS 4750 BOSCH FRAME lock provides additional security.
Lighting is provided by the CONTEC “Retro Classic E+” LED front light and the SPANNINGA “Pixeo” rear light. The SCHWALBE “Big Ben” tyres with reflective strips offer optimum grip and visibility in low-light conditions.
The bike is also fitted with a MASSLOAD “CL-648” luggage rack, including the MIK system, which is ideal for carrying items. Other features include the URSUS “King 2” kickstand, a painted aluminium chain guard and mudguards, which round off the overall look.
Overall, the Excelsior “Vintage E Diamant” offers a well-balanced combination of classic style and modern technology, making it suitable for both everyday use and longer trips.
| Front brakes | MAGURA "HS-11" |
| Brakes | MAGURA "HS-11" |
| Brake levers | MAGURA "HS-11" |
| Frame | Alu Diamant 58 cm |
| Frame material | Aluminium |
| Drivetrain | 7-speed SHIMANO "Nexus" LL |
| Shift levers | SHIMANO "Nexus", 7-speed |
| Drivetrain type | Hub gear |
| Number of gears | 7 |
| Fork | Alu |
| Bottom bracket | BOSCH |
| Crankset | 170 mm |
| Sprocket | 38 teeth SHIMANO, 19 teeth |
| Drive | KMC "E1 EPT" |
| Drive type | Chain |
| Handlebar | ERGOTEC "Lady Town", 620 mm, Ø 31.8 mm |
| Grips | VELO "VLG-519" |
| Stem | ERGOTEC "Octopus 2", adjustable, Ø 31.8 mm |
| Saddle | VELO "VL-6396" |
| Seatpost | ERGOTEC ‘Glide’ patent, Ø 27.2 x 300 mm, aluminium |
| Wheel size | 28"/622mm |
| Rims | Hollow chamber, aluminium, painted |
| Tires | SCHWALBE "Big Ben", 50-622, Reflex |
| Front tire | SCHWALBE "Big Ben", 50-622, Reflex |
| Rear tire | SCHWALBE "Big Ben", 50-622, Reflex |
| Front hub | SHIMANO "HB-TX500" |
| Rear hub | SHIMANO "Nexus" 7-speed LL |
| Spokes | Niro |
| Pedals | VP- 658 |
| Front light | CONTEC "Retro Classic E+", LED |
| Rear light | SPANNINGA "Pixeo" |
| Mudguards | Aluminium, painted |
| Kickstand | URSUS "King 2" |
| Rack | MASSLOAD "CL-648", aluminium, incl. MIK system |
| Motor manufacturer / model | BOSCH Gen. 3 "Active Line PLUS" mid-drive motor, 36 V, 250 W |
| Motor type | up to 25 km/h |
| Display | BOSCH "Purion", 4-stage, push assistance |
| Battery | BOSCH "Powerpack 400", lithium-ion with BMS, 400 Wh |
| Battery capacity (Wh) | 400 |
| Battery mount | Ontube |
| Battery type | Lithium-ion (Li-ion) |
| Battery voltage (V) | 36V |
| Charger | Bosch 2 Ah |
