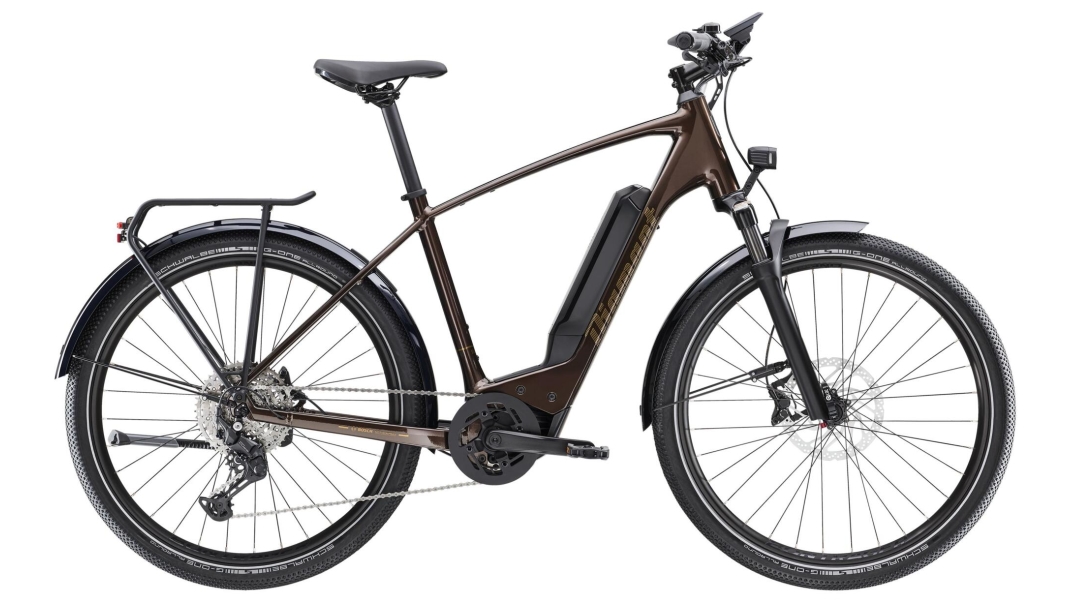

Diamant Zing Deluxe Gen 2
Model: Zing Deluxe Gen 2
Model year: 2024
Price: 3.749,00 €
Category: Trekkingbike
Frame material: Aluminium
Weight: 22 kg
Permissible total weight: 136 kg
Wheel size: 27.5“/584mm
Tests & Reviews
Equipment
| Rear brakes | Shimano hydraulic 4-piston disc brake, MT401 brake lever, MT420 brake caliper // Shimano MT401/MT420 hydraulic disc brake Shimano RT30, Centre Lock, 203 mm // Shimano EM300, Centre Lock disc mount, 180 mm |
| Front brakes | Shimano hydraulic 4-piston disc brake, MT401 brake lever, MT420 brake caliper // Shimano MT401/MT420 hydraulic disc brake Shimano RT30, Centre Lock, 203 mm // Shimano EM300, Centre Lock disc mount, 180 mm |
| Frame | High-performance aluminium frame with hydroformed tubes, internal cable routing, external battery mount, post-mount disc brake mounts, 135 x 5 mm quick-release axle |
| Frame material | Aluminium |
| Drivetrain | Shimano CUES U6000 GS |
| Shift levers | Shimano CUES U6000 with optical gear indicator, 10-speed |
| Drivetrain type | Derailleur |
| Number of gears | 1 |
| Fork | SR Suntour Mobie 34, air suspension, adjustable rebound and compression damping, 100mm thru-axle, 60mm travel |
| Crankset | ProWheel, aluminium, 175 mm crank arm length |
| Sprocket | Shimano CUES LG400, LINKGLIDE, 11-48 teeth, 10-speed |
| Drive | Shimano Ultegra HG701, 11-speed |
| Drive type | Chain |
| Handlebar | Aluminium low-rise handlebars, 31.8 mm, 25 mm rise, 11-degree bend, 690 mm width |
| Grips | Bontrager Satellite Elite, aluminium clamp |
| Stem | Bontrager Comp, 31 8 mm, Blendr compatible, 7 degrees, 90 mm length |
| Saddle | Selle Royal Vivo Moderate Ergo |
| Seatpost | Bontrager made of aluminium, 31.6 mm, 12 mm offset, 400 mm length |
| Wheelset | Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve Bontrager, sealed bearings, 32-hole, 15 mm aluminium thru-axle Shimano QC400, 32-hole, CentreLock, 135x5 mm |
| Wheel size | 27.5“/584mm |
| Tires | Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584 |
| Pedals | non-slip aluminium pedals with reflectors |
| Front light | Herrmans Nordic MR9-E, 190 lumens, LED // Spanninga Pimento XE rear light |
| Mudguards | SKS, plastic, rear // SKS, plastic, front |
| Kickstand | Pletscher Comp Flex 18 |
| Rack | MIK-compatible rear carrier made of aluminium, max. load 25 kg |
| Motor manufacturer / model | Bosch Performance Line CX, 25 km/h |
| Motor type | up to 25 km/h |
| Display | Bosch Kiox 500, smart system |
| Battery | 400 Wh |
| Battery capacity (Wh) | 400 |
| Battery mount | Gepäckträger |
| Charger | Bosch standard charger 4 A, 230 V, Smart System |
