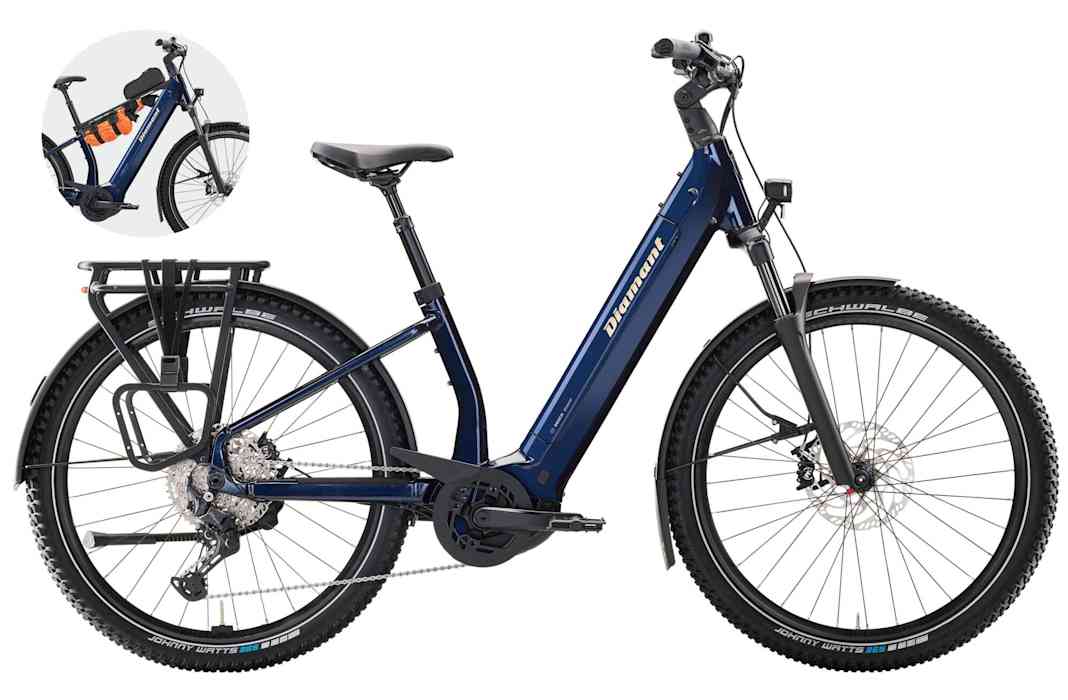

Diamant Suvea Trip Plus
2 Images
Model: Suvea Trip Plus
Model year: 2026
Price: 4.999,00 €
Category: Trekkingbike
Frame material: Aluminium
Weight: 28 kg
Permissible total weight: 160 kg
Wheel size: 27.5“/584mm
Tests & Reviews
Equipment
| Rear brakes | Hydraulic 4-piston disc brake, Magura MT Thirty // Hydraulic 4-piston disc brake, Magura MT Thirty Magura MDR-C, 203mm |
| Front brakes | Hydraulic 4-piston disc brake, Magura MT Thirty // Hydraulic 4-piston disc brake, Magura MT Thirty Magura MDR-C, 203mm |
| Frame | High-performance hydroformed aluminium tubes, smart cable routing, UDH dropouts, suitable for belt drives, ring lock mount // High-performance hydroformed aluminium tubes, smart cable routing, UDH dropouts, suitable for belt drives, R |
| Frame material | Aluminium |
| Drivetrain | Shimano CUES U6000 GS |
| Shift levers | Shimano CUES U6000 with optical gear indicator, 10-speed |
| Drivetrain type | Derailleur |
| Number of gears | 1 |
| Fork | SR Suntour Mobie 34 Boost, air suspension, lockout, 100mm travel |
| Crankset | ProWheel, aluminium, 170 mm crank arm length |
| Sprocket | Shimano CUES LG400, LINKGLIDE, 11-48 teeth, 10-speed |
| Drive | Shimano LG500 |
| Drive type | Chain |
| Handlebar | Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16° bend |
| Grips | Ergotec EG Active Flex, with clamp, with adjustable damping |
| Stem | Aluminium, adjustable, 31.8 mm, Blendr-compatible, with display mount |
| Saddle | Selle Royal Vivo Moderate Ergo with Royalgel |
| Seatpost | Spring-loaded, aluminium, 350 mm long with adjustable spring tension |
| Wheelset | Bontrager Kovee, hollow-wall rim, tubeless-ready, 32-hole, 23 mm inner width, Presta valve Shimano TC500, aluminium, Centre Lock disc mount, 110 x 15 mm thru-axle Shimano TC500 aluminium, Centre Lock, 148 x 12 mm thru-axle |
| Wheel size | 27.5“/584mm |
| Tires | Schwalbe Johnny Watts 365, with reflective strip, puncture protection, 65-584 |
| Pedals | VP-536, nylon platform |
| Front light | Herrmans Nordic MR5-E, 140 lumens, LED // Spanninga Pimento Large, with integrated brake light // Herrmans H-Black MR5-E, 140 lumens, 40 lux, LED, headlight |
| Mudguards | SKS, plastic, rear |
| Kickstand | Pletscher Comp Flex 40 |
| Rack | MIK-compatible aluminium rear carrier |
| Motor manufacturer / model | Bosch Smart System Performance Line CX BDU38, 250 watts, 85 Nm, up to 32 km/h (max. support up to 25 km/h in EU and APAC) |
| Motor type | up to 25 km/h |
| Display | Bosch Kiox 500, smart system |
| Battery | Bosch PowerPack 800 Wh, Smart System |
| Battery capacity (Wh) | 800 |
| Battery mount | Gepäckträger |
| Charger | Bosch standard charger 4 A, 230 V, Smart System |
