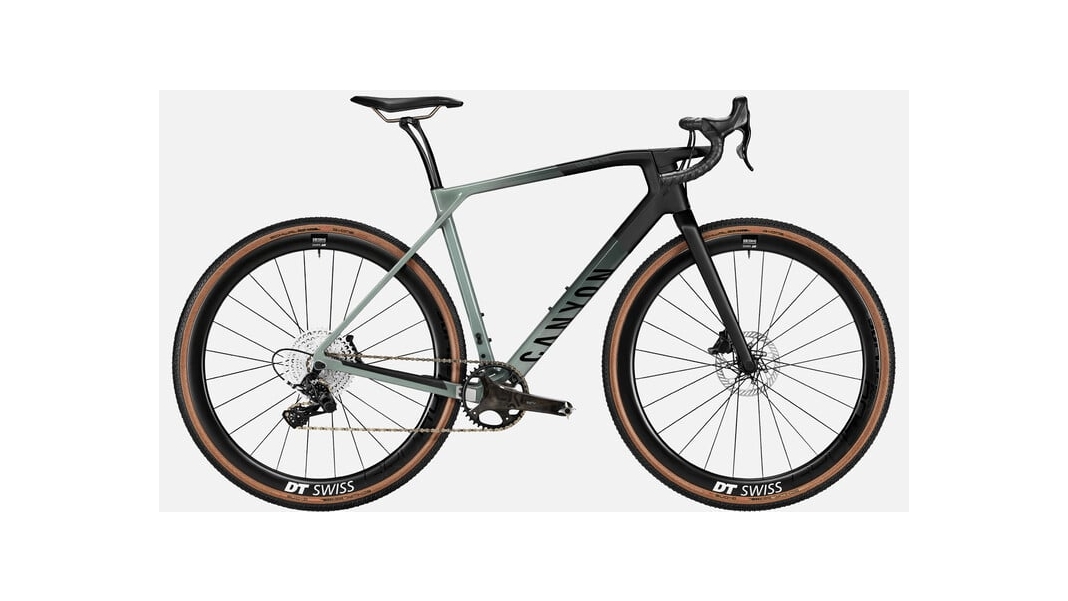

Canyon Grail CF SLX 8 1by

The "Grail CF SLX 8 1by" model from Canyon is a state-of-the-art gravel bike, priced at 4,299 EUR. The bike’s frame, designated FR GRL CF SLX R061-01 ME M P09, is made from lightweight and robust carbon fibre. With a total weight of just 8.32 kg, the bike is ideally suited to both challenging off-road routes and long rides.

The Grail CF SLX 8 1by is fitted with high-quality components such as the Campagnolo Ekar Ergopower brake levers and the Campagnolo Ekar front brake disc, which accommodate a maximum brake disc size of 160 mm. Gear changes are handled by the Campagnolo Ekar 13-speed system, which also includes the shifter and the crankset, fitted with a 40T chainring.

The bike’s fork is the Canyon FK0070 CF Disc, which provides additional stability and comfort. For road safety, a reflector set is included as a front light. Pedals are not included and must be purchased separately. The bottom bracket is a Campagnolo Pro-Tech Pressfit, which ensures efficient power transfer.

The cockpit of the Grail CF SLX 8 1by consists of the Canyon CP07 Gravel Cockpit CF handlebar, fitted with Canyon Ergospeed Gel handlebar tape to enhance riding comfort. The tyres are Schwalbe G-One R with a width of 40 mm, fitted to the DT Swiss GRC 1400 Spline db wheelset with a wheel size of 27"/630 mm.

The bike’s saddle is the Fizik Argo Terra X3, mounted on the Canyon S15 VCLS 2.0 CF seatpost, which is 350 mm long. Additional features include a Canyon Organza Bag, instructions for the H31 cockpit clamping system, a Canyon Starter Box and a Quick Start Guide for the cockpit.

The frame geometry offers a balanced riding position: the reach is 404 mm, the stack 595 mm, the seat tube length 432 mm and the top tube length 513 mm. The seat tube angle is 72 degrees, the head tube length is 70 mm and the spacers are 15 mm. The standover height is 753 mm and the crank length is 170 mm. The bike’s wheelbase measures 988 mm in total.

With these technical specifications and features, the Canyon Grail CF SLX 8 1by offers first-class performance and versatility for gravel enthusiasts.
