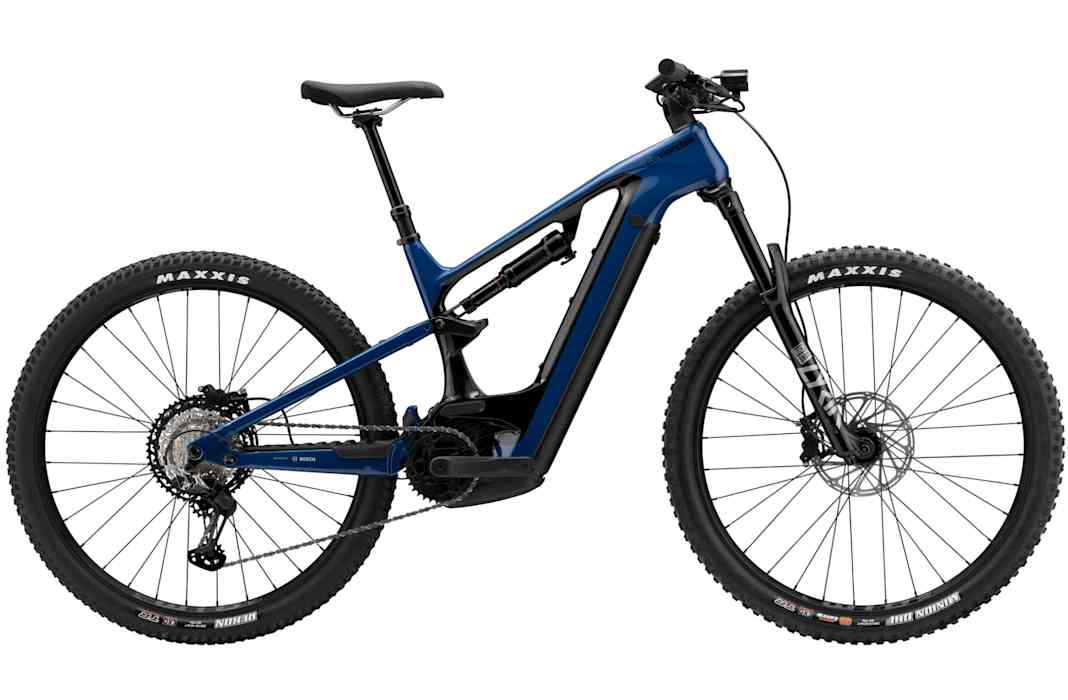

Cannondale Moterra Neo Carbon 1 C25152U

The Cannondale Moterra Neo Carbon 1 C25152U from 2024 is a state-of-the-art e-mountain bike that is characterised by its first-class equipment and innovative technology. The frame consists of a Moterra Neo Carbon Front Triangle and a SmartForm C1 Alloy swing arm, which offers 150 mm of suspension travel. The Proportional Response Tuned Suspension ensures optimum adjustment of the suspension to different body sizes, while the removable downtube battery allows for easy handling.

For the brakes, Cannondale relies on Shimano XT 8120 4-piston hydraulic disc brakes with 203 mm RT76 rotors front and rear, which in combination with the Shimano XT hydraulic brake levers ensure excellent braking performance. The drivetrain consists of a Shimano XTR groupset combined with a Shimano XT 12-speed shifter and a Shimano XT cassette with 10-51 teeth.

The RockShox Lyrik Select+ fork with 150 mm travel and DebonAir technology and the RockShox Deluxe Select+ shock with 150 mm travel also offer excellent damping properties and ensure smooth handling on demanding terrain. The FSA Bosch e-bike crankset with 34 teeth and a chainline of 55 mm rounds off the drive system.

The bike is equipped with a HollowGram SAVE riser handlebar made of carbon, which has a width of 780 mm, a rise of 30 mm and a backsweep of 8 degrees. The Cannondale 2 stem construction made of 6061 aluminium measures 35 mm in length and offers an angle of 0 degrees. The Acros integrated headset ensures precise steering.

The wheels consist of WTB KOM Trail i30 TCS rims, which are tubeless ready and fitted with Maxxis Minion DHF tyres in size 29x2.6" at the front and Maxxis Rekon tyres in size 29x2.6" (27.5x2.6" for size Small) at the rear. The hubs are from Formula (front) and DT Swiss (rear), complemented by DT Swiss Champion spokes.

The saddle is a Fabric Scoop Shallow Elite with Cro-Mo rails, while the Cannondale DownLow Dropper seatpost offers internal cable routing and an adjustment range of up to 170 mm, depending on the frame size.

The Moterra Neo Carbon 1 is powered by a Bosch Performance Line CX motor with 250W output and a Bosch PowerTube battery with a capacity of 750 Wh. The Bosch Kiox 300 display with LED remote control provides all important information at a glance. The charger is a Bosch 4A model.

The bike weighs a total of 71 kg and offers a geometry designed for maximum control and comfort: a reach of 520 mm, a stack of 644 mm, a seat tube length of 490 mm, a top tube length of 669 mm, a head tube angle of 65 degrees, a seat tube angle of 77 degrees, a head tube length of 135 mm, a chainstay length of 455 mm, a fork pre-bend of 44 mm, a standover height of 770 mm and a wheelbase of 1309 mm.

The price for this high-quality e-mountainbike is EUR 7999.
