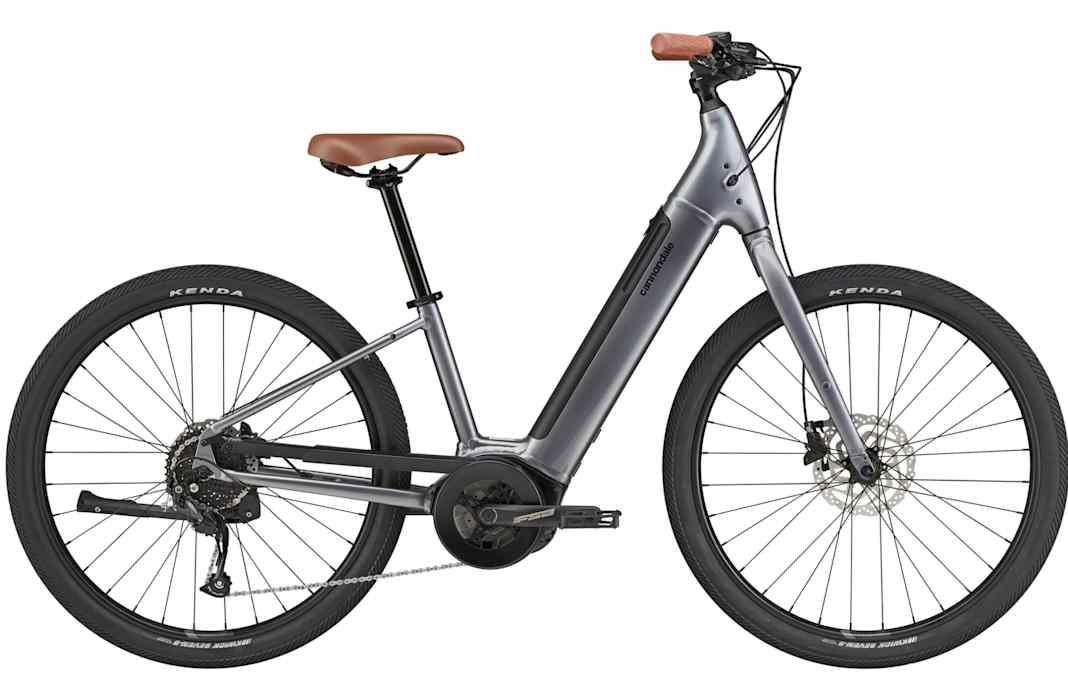

Cannondale Adventure Neo 4
Note: This text is a service for our readers and was automatically generated from the data in our bike database.
The "Adventure Neo 4" model from Cannondale from 2024 is a versatile e-bike that is available for the price of EUR 2299. The frame is made of SmartForm C3 Alloy and has a step-thru design, which makes it easier to get on. In addition, the frame is equipped with a removable downtube battery and enables fully internal cable routing. It also offers post-mount disc brakes and mounts for two water bottles on the head tube.
The braking system of the Adventure Neo 4 consists of Riderever hydraulic disc brakes with 180 mm and 160 mm rotors, which ensure reliable braking performance. Shifting is provided by a microSHIFT M46L system with 9 gears, whereby the shift lever is a microSHIFT M859. The crankset comes from FSA and is specially designed for Bosch e-bikes, equipped with a 38T chainring. The sprocket is also from microSHIFT and offers a range of 11-36 teeth.
The bike's fork is made of SmartForm C3 Alloy with a 1-1/8" headset and offers mounting options for pannier racks and mudguards, as well as a holder on the crown for additional accessories. The pedals are Cannondale Fitness pedals, which provide good grip. The handlebars are Cannondale E-Series Alloy with ergonomic backsweep and a width of 680 mm, complemented by Cannondale Comfort grips. The stem is a Cannondale 3 with Intellimount and is made of aluminium.
The bike is fitted with Cannondale 2 double-wall rims mounted on 27.5x2.20" Kenda Kwick Seven.5 tyres. The hubs are from Formula (DC-1420 front and DC-1422 rear) and the spokes are made of stainless steel with a thickness of 14g. The saddle is a Cannondale Ergo Comfort model, mounted on a Cannondale 4 seatpost made of 6061 aluminium with the dimensions 31.6x350 mm.
The Adventure Neo 4 is powered by a Bosch Active Line motor, which is operated in combination with a Bosch PowerTube battery with a capacity of 400 Wh. The display is a Bosch Purion, which clearly displays all the important information. A Bosch 2A charger is used to charge the battery. The total weight of the bike is 66000 g.
Overall, the Adventure Neo 4 offers a balanced mix of comfort, performance and versatility, ideal for everyday use as well as longer trips.
Tests & Reviews
Equipment
| Brakes | Riderever hydraulic disc, 180/160mm rotors |
| Brake levers | Riderever hydraulic disc |
| Frame | SmartForm C3 Alloy step-thru frame, removable downtube battery, fully internal cable routing, post mount disc, dual waterbottle headtube mount |
| Drivetrain | microSHIFT M46L |
| Shift levers | microSHIFT M859, 9-speed |
| Number of gears | 9 |
| Fork | SmartForm C3 Alloy blades, 1-1/8" steerer, post mount disc, mid-blade rack/fender mounts, crown accessory mount, 45mm offset |
| Crankset | FSA Bosch E-Bike, 38T |
| Sprocket | microSHIFT, 11-36, 9-speed |
| Drive | KMC Z9, 9-speed |
| Headset | Semi Integrated, 1-1/8" |
| Handlebar | Cannondale E-Series Alloy, ergo backsweep, 680mm |
| Grips | Cannondale Comfort |
| Stem | Cannondale 3 with Intellimount, Alloy, 31.8mm clamp |
| Saddle | Cannondale Ergo Comfort |
| Seatpost | Cannondale 4, 6061 Alloy, 31.6x350mm |
| Rims | Cannondale 2, double wall |
| Tires | Kenda Kwick Seven.5, 27.5x2.20" |
| Spokes | Stainless steel, 14g |
| Pedals | Cannondale Fitness |
| Motor manufacturer / model | Bosch Active Line |
| Display | Bosch Purion |
| Battery | Bosch PowerTube, 400Wh |
| Battery capacity (Wh) | 400 |
| Charger | Bosch 2A |
