Name: Brennabor T-32e Diamant
Brand: Brennabor
Price: 2999 EUR

Bidex

Brennabor

Brennabor T-32e Diamant 2025 Pedelec > Trekking > Trekkingbike

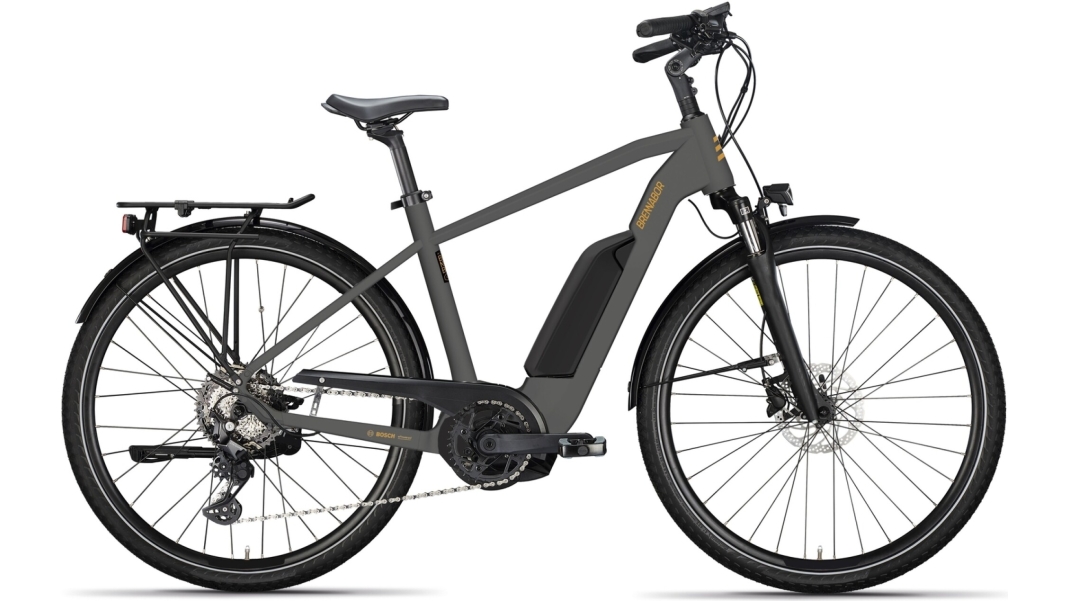

T-32e Diamant

BRENNABOR RAD E-TREKK. T-32E 28/55 HE. 9GG GREY/YELLOW MATT + BOSCH "Active Line Plus", 36 V, 250 W + BOSCH "PowerPack 545", 545 Wh, smart system

BRENNABOR T-32e Diamant grey / yellow matt

RAD E-TREKK. T-32E 28/55 HE. 9GG GREY/YELLOW MATT +BOSCH 545,0 Wh


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Rear brakes	SHIMANO "BR-MT200", hydraulic, Post Mount
Front brakes	SHIMANO "BR-MT200", hydraulic, Post Mount, adapter for 180 mm
Front brake disc	SHIMANO "SM-RT30", Ø 180 mm, Centre Lock
Rear brake disc	SHIMANO "SM-RT30", Ø 160 mm, Centre Lock
Brake levers	SHIMANO "BL-MT200"
Frame	Brennabor E-Trekking Bosch Gen. 3, aluminium, diamond frame, 55 cm diamond frame 55 cm
Drivetrain	SHIMANO "Cues"
Shift levers	SHIMANO "Cues SL-U4010-9R", 9-speed
Number of gears	9
Fork	SR SUNTOUR "NCX32-D LO", 28", 75mm travel, tapered, Post Mount, matt black
Fork travel (mm)	75
Crankset	STRONGLIGHT "Mangan 3", 170 mm, black
Sprocket	STRONGLIGHT, 38T, for BOSCH Gen. 3, Direct Mount SHIMANO "CS-LG400-9", LINKGLIDE, 9-speed, 11-41T
Drive	SHIMANO "CN-LG500", LINKGLIDE
Headset	PRESTINE IS52/28.6 / ZS56/40, 1 1/8" – 1.5"
Handlebar	SATORI "Vienna", 31.8 mm, 680 mm, rise 20 mm, backsweep 15 degrees (Wave: 35 degrees)
Grips	VELO "VLG-1891" 130 mm, black
Stem	SATORI "Hatchback" adjustable, 31.8 mm, 90 mm, black, SP connect
Saddle	SELLE ROYAL "4531" black
Seatpost	ZOOM "SP-178" Ø 34.9 mm, 350 mm, adapter for 40 mm, black
Rims	MACH1 "Karma 21" 21-622, 36-hole, disc, eyelets, black
Front tire	SCHWALBE "Road Cruiser Plus" 55-622, Reflex
Rear tire	SCHWALBE "Road Cruiser Plus" 55-622, Reflex
Front hub	SHIMANO "HB-QC300", Centre Lock, 36-hole, quick-release, black
Rear hub	SHIMANO "FH-QC300-HM" Centre Lock, 8/9/10/11-speed, 36-hole, quick-release, black
Spokes	Stainless steel, black
Pedals	MARWI "SP-827"
Front light	HERRMANS "Nordic MR5" 40 lux
Rear light	integrated
Mudguards	Wingee
Kickstand	URSUS "King Evo Rear", adjustable length, black, KSA40
Rack	RACKTIME, custom T-3Xe, black
Motor manufacturer / model	BOSCH "Active Line Plus", 36 V, 250 W
Display	BOSCH, "Intuvia 100", 4 settings, slide assist
Battery	BOSCH "PowerPack 545", 545 Wh, smart system
Battery capacity (Wh)	545
Charger	BOSCH 2 A

Brennabor T-32e Diamant
