Name: Brennabor T-31Xe Diamant
Brand: Brennabor
Price: 2999 EUR

Bidex

Brennabor

Brennabor T-31Xe Diamant 2025 Pedelec > City > Citybike

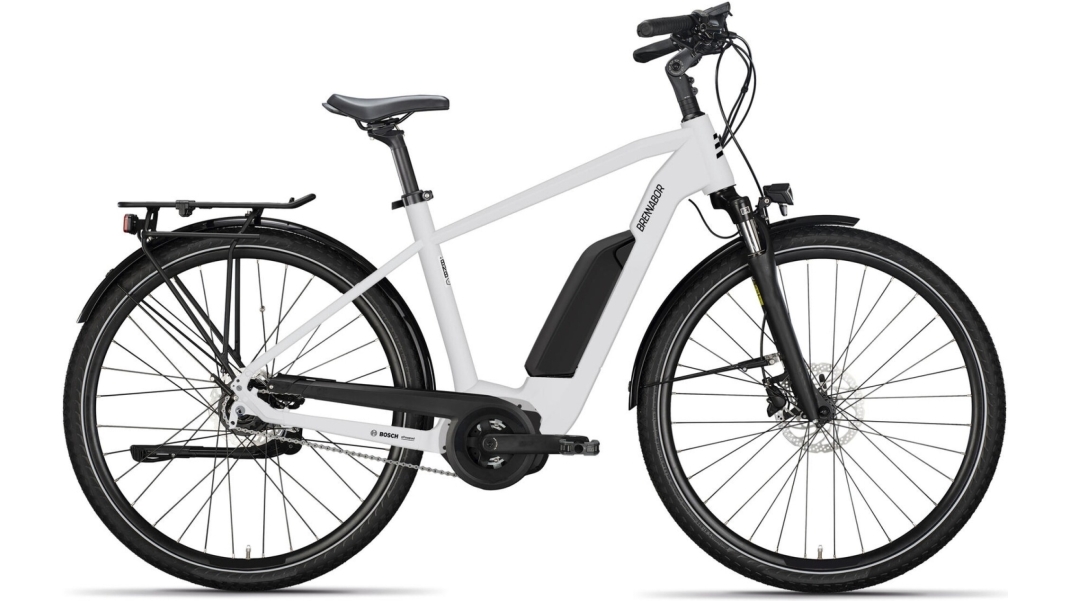

T-31Xe Diamant

BRENNABOR RAD E-TREKK. T-31XE 28/55 HE. 8GG WHITE/BLACK + BOSCH "Active Line Plus", 36 V, 250 W + BOSCH "PowerPack 545", 545 Wh, smart system

RAD E-TREKK. T-31XE 28/55 HE. 8GG WHITE/BLACK +BOSCH 545,0 Wh


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Rear brakes	SHIMANO "BR-MT200", hydraulic, Post Mount
Front brakes	SHIMANO "BR-MT200", hydraulic, Post Mount, adapter for 180 mm
Front brake disc	SHIMANO "SM-RT30", Ø 180 mm, Centre Lock
Rear brake disc	SHIMANO "SM-RTC60", Ø 160 mm, 5-bolt
Brake levers	SHIMANO "BL-MT200"
Frame	Brennabor E-Trekking Bosch Gen. 3, aluminium, diamond frame, 55 cm diamond frame 55 cm
Drivetrain	8-speed SHIMANO "Nexus" coaster brake
Shift levers	SHIMANO "Nexus SL-C6000-8", 8-speed
Number of gears	8
Fork	SR SUNTOUR "NCX32-D LO", 28", 75mm travel, tapered, Post Mount, glossy white
Fork travel (mm)	75
Crankset	STRONGLIGHT "Mangan 3", 170 mm, black
Sprocket	STRONGLIGHT, 38T, for BOSCH Gen. 3, Direct Mount SHIMANO 20T
Drive	KMC "e1"
Headset	PRESTINE IS52/28.6 / ZS56/40, 1 1/8" – 1.5"
Handlebar	SATORI "Vienna", 31.8 mm, 680 mm, rise 20 mm, backsweep 15 degrees (Wave: 35 degrees)
Grips	HERRMANS "Nucore Town Peak" 90/130 mm, black
Stem	SATORI "Hatchback" adjustable, 31.8 mm, 90 mm, black, SP connect
Saddle	SELLE ROYAL "4531" black
Seatpost	ZOOM "SP-178" Ø 34.9 mm, 350 mm, adapter for 40 mm, black
Rims	MACH1 "Karma 21" 21-622, 36-hole, disc, eyelets, black
Front tire	SCHWALBE "Road Cruiser Plus" 55-622, Reflex
Rear tire	SCHWALBE "Road Cruiser Plus" 55-622, Reflex
Front hub	SHIMANO "HB-QC300", Centre Lock, 36-hole, quick-release, black
Rear hub	SHIMANO "Nexus SG-C6001-8CD", 8-speed, coaster brake / 5-bolt rim, 36 holes, black
Spokes	Stainless steel, black
Pedals	MARWI "SP-827"
Front light	HERRMANS "Nordic MR5" 40 lux
Rear light	integrated
Mudguards	Wingee
Kickstand	URSUS "King Evo Rear", adjustable length, black, KSA40
Rack	RACKTIME, custom T-3Xe, black
Motor manufacturer / model	BOSCH "Active Line Plus", 36 V, 250 W
Display	BOSCH, "Intuvia 100", 4 settings, slide assist
Battery	BOSCH "PowerPack 545", 545 Wh, smart system
Battery capacity (Wh)	545
Charger	BOSCH 2 A

Brennabor T-31Xe Diamant
