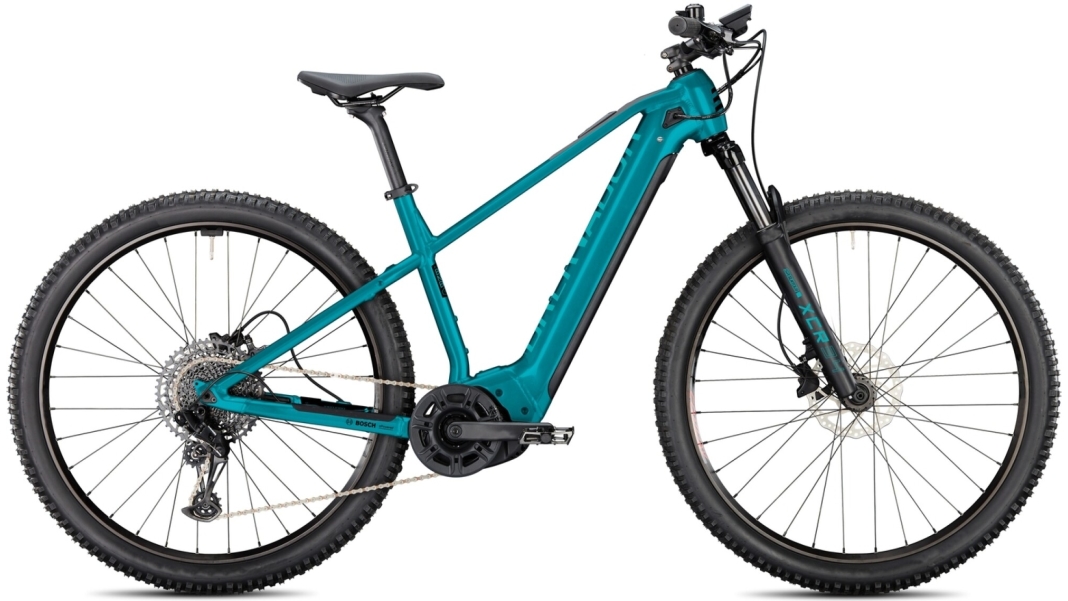

Name: Brennabor M-66Xe Diamant
Brand: Brennabor
Price: 3999 EUR

Bidex

Brennabor

Brennabor M-66Xe Diamant 2025 Pedelec > MTB > Hardtail

M-66Xe Diamant

BRENNABOR RAD E-MTB M-66XE 29/57 HE. 12GG PETROL/CYAN + BOSCH "Performance CX", 36 V, 250 W + BOSCH "PowerTube 625", 625 Wh, smart system

RAD E-MTB M-66XE 29/57 HE. 12GG PETROL/CYAN +BOSCH 625,0 Wh


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | BIKE

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Comment anonymously?

A unique username is required to fully use the commenting feature.

Rear brakes	MAGURA "MT-Thirty", 2-piston, hydraulic, Post Mount
Front brakes	MAGURA "MT-Thirty", 4-piston, hydraulic, Post Mount, adapter for 203 mm
Front brake disc	MAGURA "MDR-C CL" Ø 203 mm, Centre Lock
Rear brake disc	MAGURA "MDR-C CL" Ø 180 mm, Centre Lock
Brake levers	MAGURA "MT-Thirty"
Frame	Brennabor E-Mountain Bosch Gen. 4, aluminium, diamond frame, 57 cm diamond frame 57 cm
Drivetrain	SHIMANO "Deore"
Shift levers	SHIMANO "Deore SL-M6100-R", 12-speed
Number of gears	12
Fork	SR SUNTOUR "XCR34-X-Air", 29", 120mm travel, tapered, Post Mount, matt black
Fork travel (mm)	120
Crankset	FSA "CK-762/IS", 165 mm, black
Sprocket	FSA, 36T, for BOSCH Gen. 4, Spider and SHIMANO "Deore CS-M6100-12" chainring, 12-speed, 10-51T
Drive	KMC "e12 Sport", EPT
Headset	ACROS ZS56/28.6 / ZS56/40, 1 1/8" – 1.5" with BlockLock
Handlebar	ERGOTEC "Low Riser Bar", 31.8 mm, 780 mm, rise 15 mm, backsweep 12 degrees
Grips	HERRMANS "Nucore Trail Peak" 130 mm, black
Stem	SATORI "Ursa" Ahead, 0 degrees, 31.8 mm, 50 mm, black, SP connect
Saddle	FIZIK "Terra Aidon X5" 145 mm
Seatpost	LIMOTEC "A1" Ø 31.6 mm, drop 125 mm, black
Rims	RODI "BlackJack Ready 30" 30-622, 32 holes, disc, eyelets, black
Front tire	SCHWALBE "Nobby Nic", Performance, 65-622
Rear tire	SCHWALBE "Nobby Nic", Performance, 65-622
Front hub	SHIMANO "HB-TC500-15-B", Centre Lock, 32-hole, Boost, thru-axle, black
Rear hub	SHIMANO "FH-TC500-MS-B" Centre Lock, 12-speed, 32-hole, Boost, thru-axle, black
Spokes	Stainless steel, black
Pedals	VP "VP-506"
Kickstand	URSUS "King Evo Rear", adjustable length, black, KSA40
Motor manufacturer / model	BOSCH "Performance CX", 36 V, 250 W
Battery	BOSCH "PowerTube 625", 625 Wh, smart system
Battery capacity (Wh)	625
Charger	BOSCH 4 A
