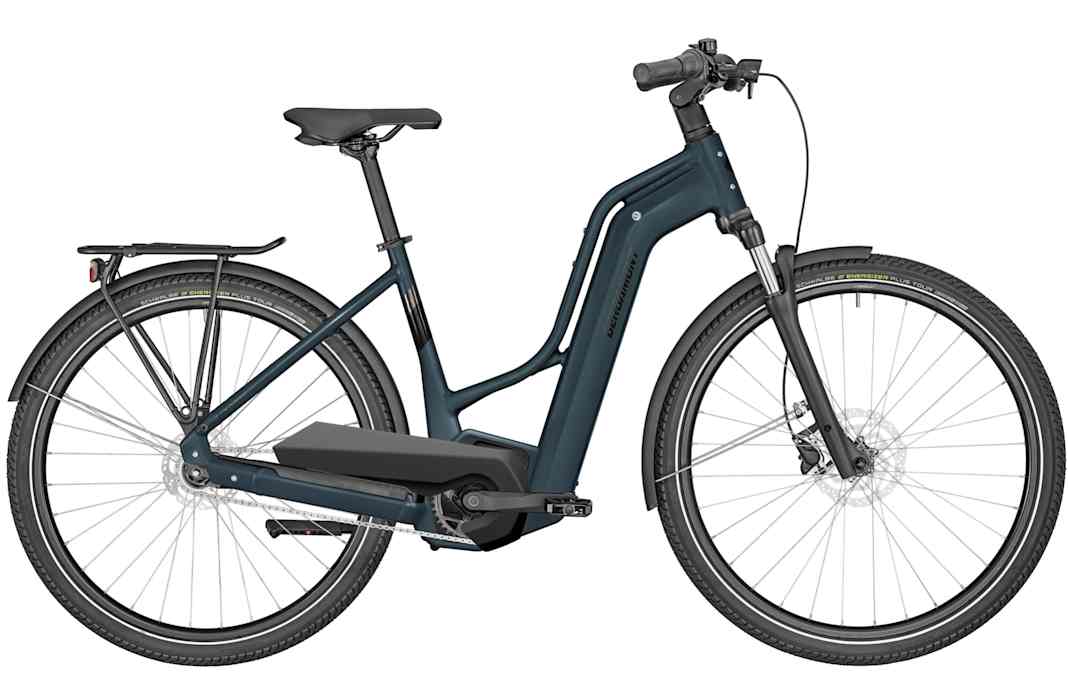

Bergamont E-Horizon N5e FH Amsterdam

The "E-Horizon N5e FH Amsterdam" model from Bergamont from 2024 is a versatile e-bike that is equally suitable for urban use and trekking tours. With a price tag of EUR 3499, it offers a wide range of technical features and high-quality components. The frame consists of a super lightweight AL-6061 tube set with a 28-inch construction, which ensures stability and low weight. The integrated Bosch PowerTube battery with a capacity of 500 Wh is elegantly housed in the frame and provides a range that is more than sufficient for daily use in the city. The permissible total weight is 130 kg, while the bike itself weighs 28 kg.

Safety is ensured by hydraulic disc brakes from Shimano (BR-MT200) at both the front and rear, combined with 180 mm brake discs (SM-RT10). The Suntour NVX30 DS fork with a suspension travel of 75 mm offers sufficient comfort on uneven roads and paths. The bike is equipped with a 5-speed Shimano Nexus rear derailleur, which is operated via twist shifters (SL-C7000), enabling simple and reliable gear selection.

The lighting consists of a B&M Dopp front light with 35 lux and a B&M Toplight 2 C rear light, both in LED design, which ensures good visibility and safety on the road. The pedals are made of robust aluminium and the crankset is from FSA (CK-200) with a 38-tooth chainring. The sprocket has 27 teeth and the drive is provided by a KMC Z1eHX Wide EPT chain.

The handlebar is a BGM Pro Riser handlebar with a 15-degree bend and a height of 5 mm, while the grips are ergonomically shaped and double-sealed. The stem is also from BGM Pro and is adjustable, allowing you to customise your riding position. The headset system is a semi-integrated Acros A-Headset with integrated cable routing.

The rims are Ryde Rival 23 Disc models fitted with Sapim Leader spokes. The tyres are Schwalbe Energizer Plus Tour with Greenguard and Reflex stripes in size 55-622, which provide excellent grip and puncture protection. The hubs are from Shimano, with the front hub having a quick release and the rear hub being a freehub (SG-C7000-5).

The saddle is a Syncros Capilano Trekking Memory Foam model, which ensures a high level of comfort, supported by a BGM Pro seatpost. Curana Apollo mudguards with stainless steel struts protect against dirt and moisture. The integrated chain guard in the motor cover and a Syncros kickstand round off the equipment. The pannier rack is a Racktime/BGM Trekking Pro model with Snapit 2.0 system and integrated mudguard mount.

The third-generation Bosch Performance Line motor delivers 250 W of power at 36 V and provides support up to a speed of 25 km/h. The display is a Bosch LED Remote. The display is a Bosch LED Remote with Intuvia 100 display, which clearly shows all the important information. The battery is charged with a Bosch Standard Charger with 4A.

The geometry of the frame offers a comfortable riding position with a seat tube length of 415 mm and a top tube length of 605 mm. The head tube angle is 69 degrees, the seat tube angle 73 degrees, which enables balanced riding dynamics. Other dimensions such as the chainstay length (505 mm), bottom bracket drop (60 mm), fork pre-bend (44 mm), standover height (493 mm), fork height (508 mm), crank length (170 mm), wheelbase (1181 mm) and bottom bracket height (295 mm) contribute to stability and riding comfort.

To summarise, the Bergamont E-Horizon N5e FH Amsterdam offers a good balance between comfort, safety and performance, ideal for urban use and longer tours.
