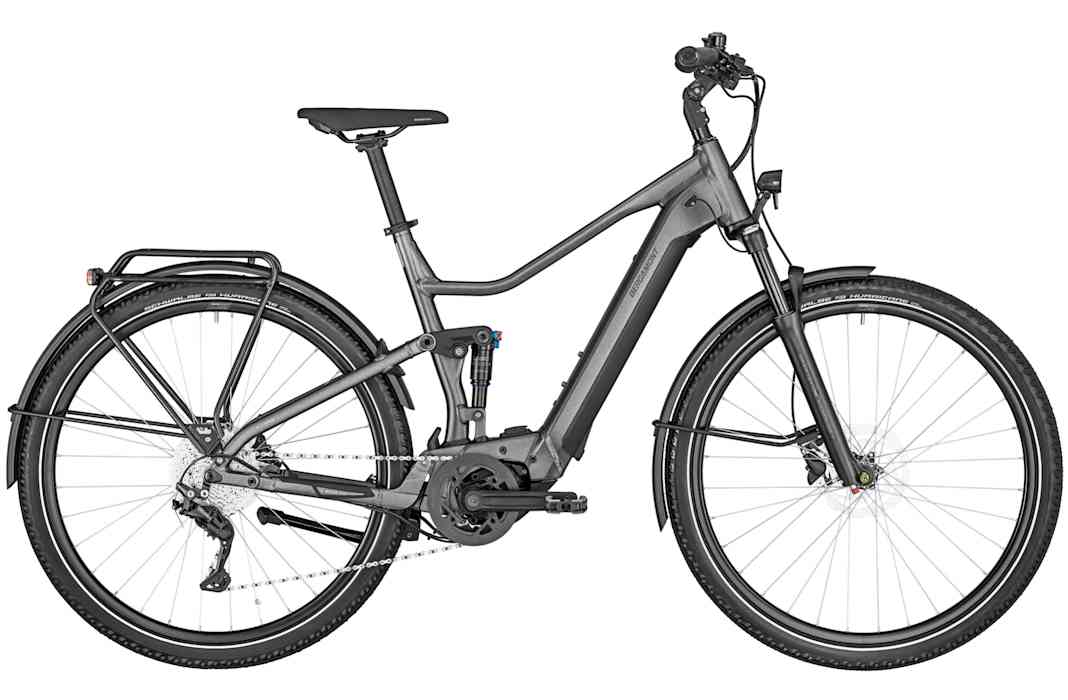

Bergamont E-Horizon FS Edition

The "E-Horizon FS Edition" model from the Bergamont brand from 2024 is a versatile e-bike that is available for the price of EUR 3999. The frame consists of an ultra-light AL-6061 tube set and is designed for a PowerTube battery with a capacity of 625 Wh. The frame offers a rear suspension travel of 80 mm and is designed for a permissible total weight of 130 kg, with a tare weight of 26 kg.

The bike is suitable for people between 160 cm and 170 cm tall. It has hydraulic disc brakes from Shimano (BR-MT200) both front and rear, with corresponding brake levers (BL-MT200) and 180 mm brake discs (SM-RT30). The gearing is a Shimano Deore with 10 gears, controlled by Rapidfire Plus shifters (SL-M4100).

The front fork is a Suntour Mobie 25 Air with 100 mm travel and a 15x100 mm axle. The shock is a Suntour Unair with a length x stroke of 145x35 mm. The bike is also equipped with LED lighting, consisting of a B&M Dopp front light with 35 lux and a B&M Toplight 2 C rear light.

The bottom bracket comes from Bosch and is an Isis model, combined with an FSA CK-320 crankset with 38 teeth. The sprocket is a Shimano CS-M4100-10 with a gradation of 11-42 teeth. The drive is provided by a KMC e10S chain.

The handlebars are BGM Pro Riser handlebars with a 15° offset and a width of 660 mm, mounted on a BGM Pro stem, which is adjustable. The grips are BGM Comfort Ergo Double Density screw grips. The bike has Ryde Rival 23 Disc rims, Sapim Leader spokes and Schwalbe Hurricane tyres with Addix technology and Reflex stripes (57-622).

The hubs are BGM Pro Centerlock discs, with a 15x100 mm axle at the front and a 12x148 mm axle at the rear. The saddle is a Selle Royal Essenza Plus Gent, mounted on a BGM Pro seat post. Mudguards from Racktime Alumee, a Syncros kickstand and a Racktime/BGM pannier rack with Snapit 2.0 system round off the equipment.

The motor is a fourth-generation Bosch Performance Line CX with 250 W of power and maximum assistance of up to 25 km/h. The display is the Bosch Purion. The display is the Bosch Purion, and the charger is a Bosch Compact Charger with 2A charging power.

The geometry of the frame comprises a reach of 420 mm, a stack of 636 mm, a seat tube length of 410 mm and a top tube length of 585 mm. The head tube angle is 67 degrees, the seat tube angle is 76 degrees, the head tube length is 120 mm and the chainstay length is 490 mm. The bottom bracket drop is 39 mm, the fork pre-bend is 44 mm, the standover height is 799 mm and the fork height is 550 mm. The crank length is 170 mm and the wheelbase measures 1217 mm with a bottom bracket height of 332 mm.

The "E-Horizon FS Edition" therefore offers comprehensive equipment and sophisticated geometry for comfortable and powerful rides in everyday life and on tours.
