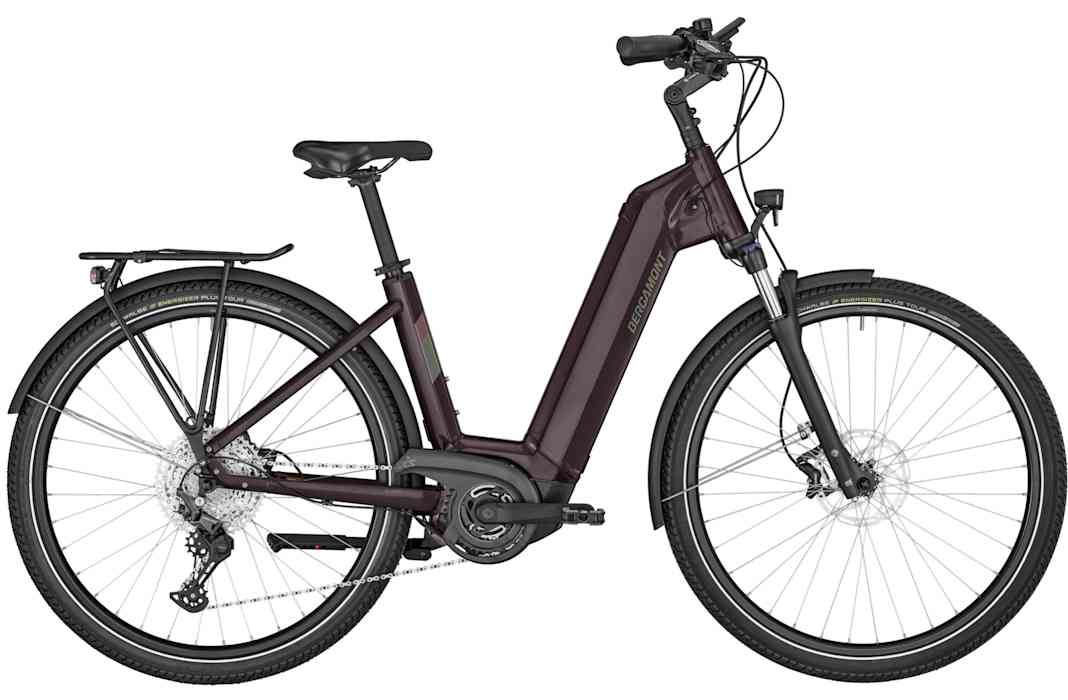

Bergamont E-Horizon Expert 6 Wave plum

The "E-Horizon Expert 6 Wave plum" model from Bergamont, released in 2024, features high-quality components and is available for €4,199. The frame is made from a lightweight AL-6061 tube set and is designed to accommodate a Bosch PowerTube battery. The maximum permissible weight is 130 kg, whilst the bike itself weighs 28 kg.

This e-bike is suitable for riders between 150 cm and 160 cm tall. The braking system comprises Tektro HD-M745 hydraulic disc brakes at the front and rear, featuring 4-piston calipers that deliver reliable braking performance. The brake levers are also from Tektro and ensure precise control of braking force.

The gear system is a Shimano Deore RD-M6100 Shadow Plus with 12 speeds, operated by Shimano Deore SL-M6100 Rapidfire Plus shifters. The fork is a Suntour NVX30 NLO with 75 mm of travel, ensuring comfort on uneven terrain. The lighting comprises a B&M Myc front light with 50 lux and a B&M Toplight 2 C rear light, both LED models.

The pedals are made of aluminium and the crankset is from FSA, featuring a 38-tooth chainring. The cassette is a Shimano Deore CS-M6100 with a range of 10–51 teeth. The drivetrain is completed by a KMC e12S chain. The handlebars are BGM Pro Riser handlebars with a 40-degree rise and a height of 40 mm, which allow for a comfortable riding position.

The rims are BGM Pro X17 Disc, with eyelets, and the tyres are Schwalbe Energizer Plus Tour with Greenguard and reflective strips, size 55-622. The hubs are from Shimano: the front is an HB-M3050 and the rear an FH-MT401, both with Centre Lock disc mounts.

The saddle is a Syncros Capilano Trekking Memory Foam, mounted on a BGM Pro seatpost. Curana Apollo mudguards with stainless steel struts, along with an SKS Chainbooster chain guard, provide additional protection against dirt and water. A Syncros kickstand and a Racktime / BGM Trekking Pro luggage rack with the Snapit 2.0 system round off the specification.

Power is provided by a fourth-generation Bosch Performance Line CX motor with 250 W output and a maximum speed of 25 km/h. The battery is a Bosch PowerTube with a capacity of 625 Wh, charged via a Bosch Standard Charger with 4A. The display is a Bosch LED Remote with an Intuvia 100 display.

The frame geometry comprises a reach of 392 mm, a stack of 643 mm, a seat tube length of 440 mm and a top tube length of 595 mm. The head tube angle is 70 degrees, the seat tube angle is 75 degrees, and the head tube length is 170 mm. The chainstay length is 505 mm, the bottom bracket drop is 70 mm and the fork offset is 42 mm. The top tube height is 427 mm, the fork installation height is 458 mm, the crank length is 170 mm and the wheelbase is 1151 mm. The bottom bracket height is 304 mm.

In summary, the Bergamont E-Horizon Expert 6 Wave plum offers a well-thought-out all-round package combining comfort, safety and performance, making it ideal for both everyday use and longer rides.
