Note: This text is a service for our readers and was automatically generated from the data in our bike database.

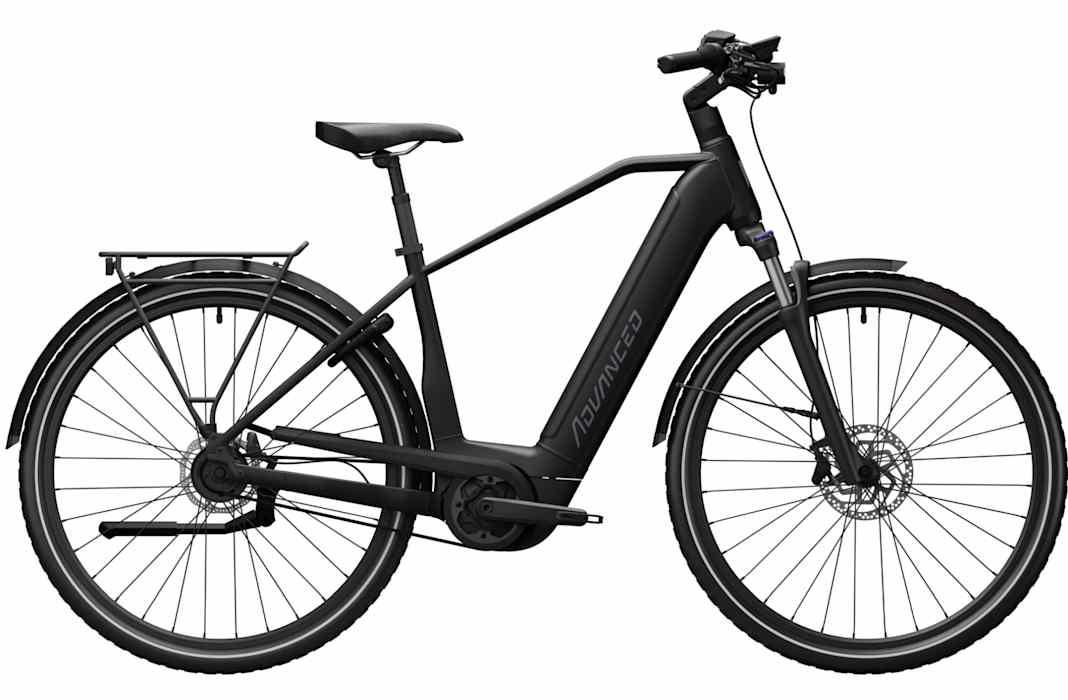

The "TOUR Pro / Grey Black / Diamant / 750Wh" model from the Advanced brand from 2024 is a high-quality e-bike that is positioned in the upper segment with a price of EUR 4599. The frame of the bike is designed in the classic diamond shape, which ensures a stable and comfortable ride. Braking performance is provided by the Shimano BR-MT200 brakes, which are operated both at the front and rear with the Shimano BL-MT200 brake levers. The brake discs have a diameter of 180 mm at the front and 160 mm at the rear, which enables effective deceleration.
The gears are equipped with the Shimano Nexus 5, a 5-speed system controlled by the SL-C7000-5 gear lever. The bike's fork is the NVX30 model with a suspension travel of 80 mm, which ensures comfortable suspension on uneven roads. The bike is illuminated by the Lezyne E500 Black front light and the Lezyne Super Bright Alert rear light.
The drive is provided by the Gates Carbon Belt Drive CDX system, which is equipped with a Gates CDX 46T bottom bracket and sprocket. The crankset measures 170 mm and is finished in black. The bike's handlebars are a Satori Wien model measuring 31.8x680 mm, also in black, and are complemented by Ergotec Ambition grips. The stem is an adjustable Satori Phyton with a length of 110 mm.
The Ryde Rival26 rims in size 26-622 are fitted with Continental Contact Cruiser tyres, which provide good traction and comfort. The hubs are the Shimano HB-QC400 model at the front and the Shimano SG-C7000-5D model at the rear, both in black. The saddle is a Selle SMP 8303 model, mounted on a Satori Elegance LT seat post.
Additional features include Stronglight mudguards, a Hesling Drive chain guard, an Ursus Moi Rear KS40 kickstand, an Abus 5755L lock and a Racktime 2.0 pannier rack. The motor of the e-bike is a Bosch Performance model, combined with a Bosch PowerTube battery with a capacity of 750 Wh. The display is the Kiox 300 model, and a Bosch Charger 4A is used for charging.
With a reach of 688 mm, a stack of 425 mm and a seat tube length of 600 mm, the bike offers a balanced geometry for comfortable riding in both urban and rural environments. The TOUR Pro Diamant 60 / Grey Black combines high-quality technology with sophisticated design and is a reliable choice for demanding cyclists.
| Rear brakes | BR-MT200 |
| Front brakes | BR-MT200 |
| Brakes | Shimano BR-MT200 |
| Front brake disc | 180 |
| Rear brake disc | 160 |
| Brake levers | Shimano BL-MT200 |
| Front brake lever | Shimano BL-MT200 |
| Rear brake lever | Shimano BL-MT200 |
| Frame | Diamond |
| Drivetrain | Shimano Nexus 5 |
| Shift levers | SL-C7000-5 |
| Number of gears | 5 |
| Fork | NVX30 |
| Fork travel (mm) | 80 |
| Bottom bracket | Gates CDX 46T |
| Crankset | 170mm Black |
| Sprocket | Gates CDX 46T |
| Drive | Gates Carbon Belt Drive CDX |
| Handlebar | Satori Vienna 31.8x680 Black |
| Grips | Ergotec Ambition Black |
| Stem | Satori Phyton Adjustable Black 110mm |
| Saddle | Selle SMP 8303 |
| Seatpost | Satori Elegnce LT 30.9x300 Black |
| Rims | Ryde Rival26 26-622 Black |
| Tires | Continental Contact Cruiser 55-622 Reflex Black |
| Front hub | Shimano HB-QC400 Black 36H QR100 |
| Rear hub | Shimano SG-C7000-5D 36H Black OLD135 |
| Front light | Lezyne E500 Black |
| Rear light | Lezyne Super Bright Alert |
| Mudguards | Stronglight |
| Kickstand | Ursus Moi Rear KS40 |
| Rack | Racktime 2.0 |
| Motor manufacturer / model | Bosch Performance |
| Display | Kiox 300 |
| Battery | Bosch PowerTube |
| Battery capacity (Wh) | 750 |
| Charger | Bosch Charger 4A |
