Sram LevelNew lightweight two-piston brake

Peter Nilges

 · 23.02.2016

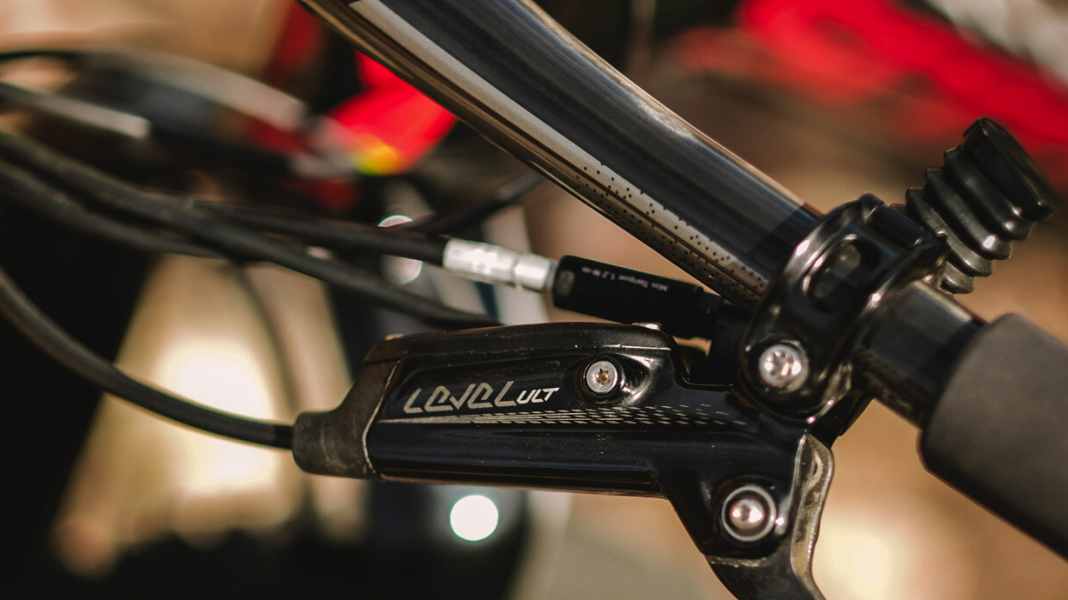

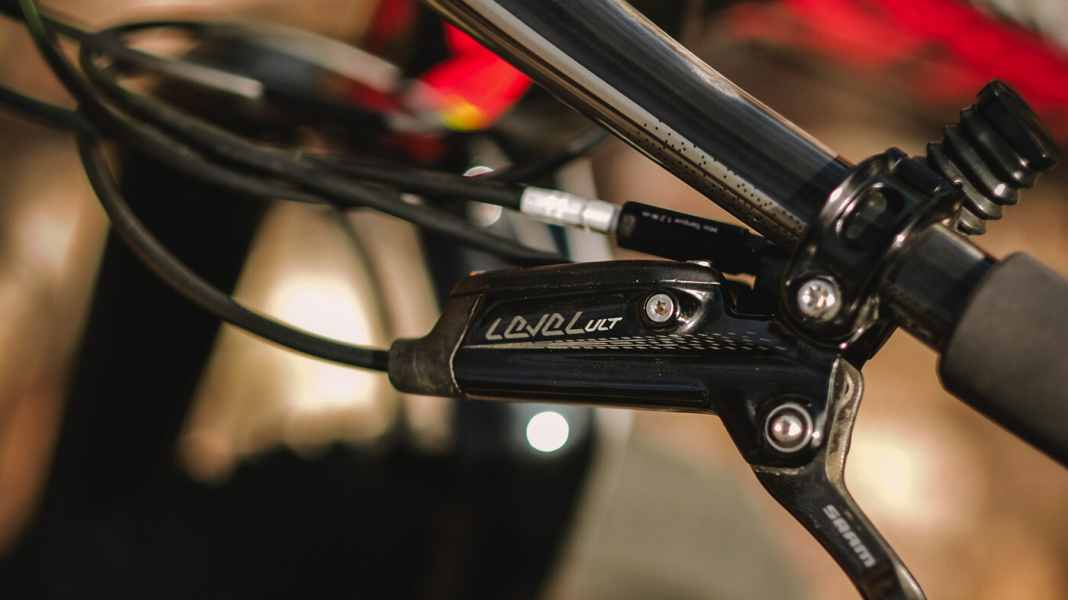

Sram Level: new lightweight two-piston brakePhoto: SRAM
Sram Level: new lightweight two-piston brake
After Sram brought its four-piston brakes up to scratch with the Guide, the new Sram Level series with five disc brake models is aimed at cross-country and marathon riders.

At 318 grams for the top model (direct mount with 160 millimetre CLX rotor), the new Sram Level brakes are aimed at cross-country riders and weight-conscious trail bikers.

The Level series comprises a total of five different brake models. The price per brake (without disc) is between 69 and 324 euros. While the top model Sram Level Ultimate replaces the well-known XX, the Level entry-level model will be the counterpart to the previous DB1.

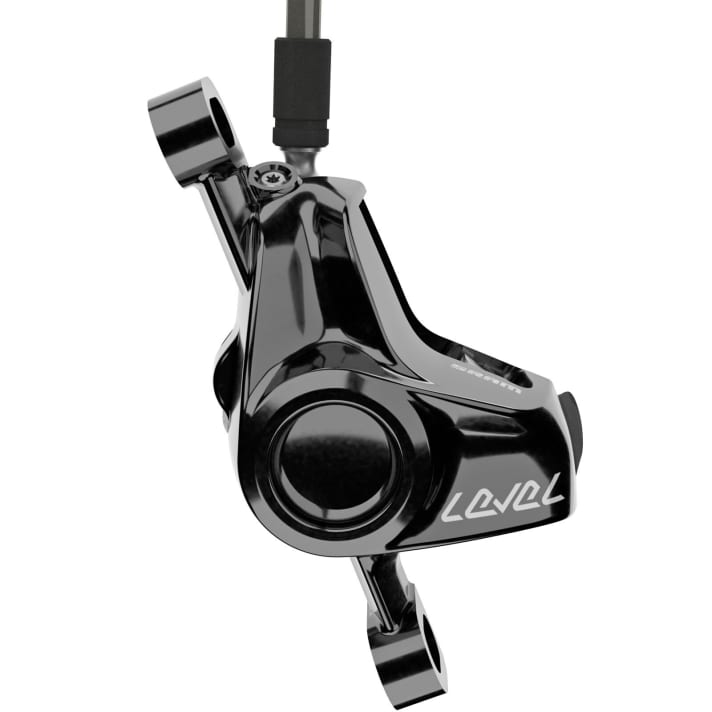

In the two top Sram Level models, the brake calliper with two pistons has a one-piece design.Photo: SRAM In the two top Sram Level models, the brake calliper with two pistons has a one-piece design.

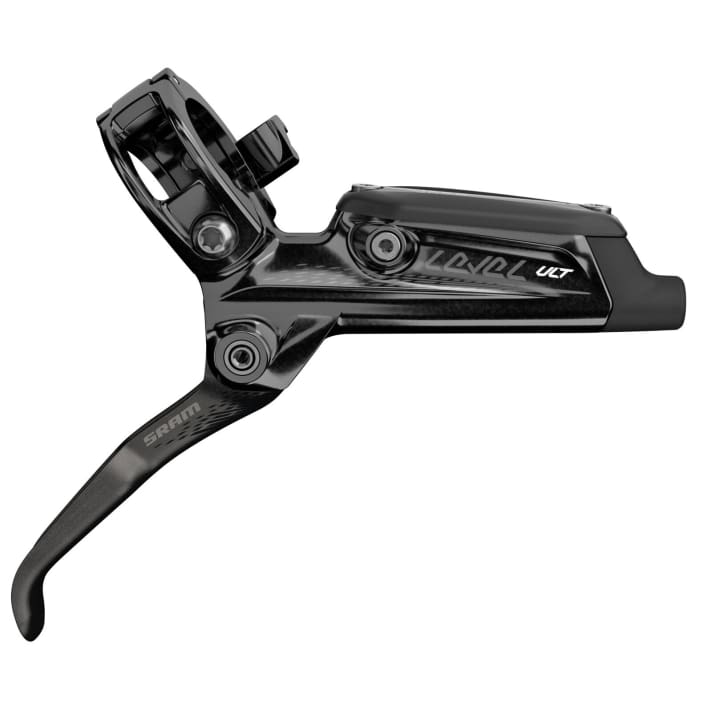

The Sram Level Ultimate is the new flagship for racers and weighs in at 318 grams.Photo: SRAM The Sram Level Ultimate is the new flagship for racers and weighs in at 318 grams.

Sram Level: Slimmer and lighter than the Guide brakes

Technically, the new Sram Level is based on many details that have already proven themselves in the Guide brakes. For example, the sniffer bore, seals, reservoir and bladder have been adopted. A quick bleed system and DOT 5.1 brake fluid are also identical. However, the lever housing is slimmer and the brake calliper is a two-piston system (21 millimetre piston diameter). While the guide brakes (RSC) also have a pressure point adjustment, this option is not available for the entire Level series from Sram. The grip width can of course be adjusted, albeit only with a tool. The brake levers also run on ball bearings for a low-friction and direct feel.

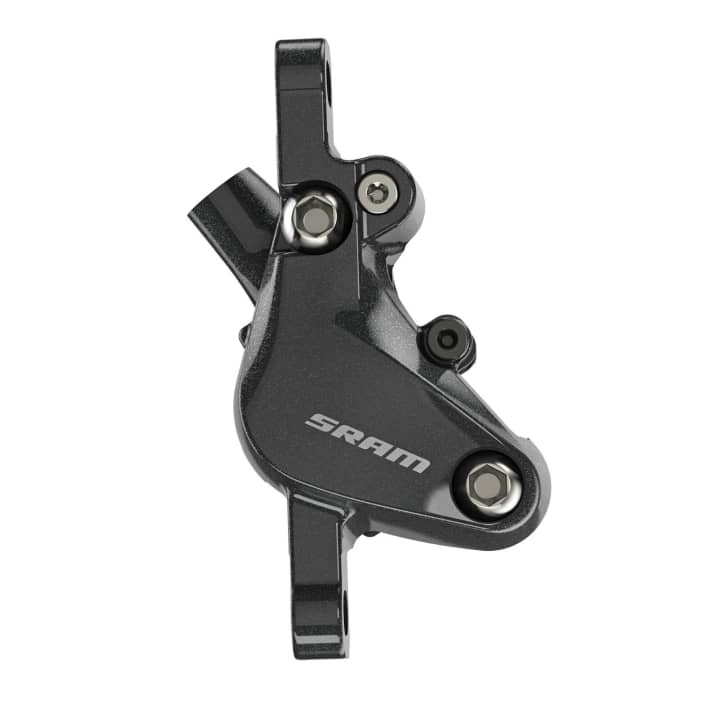

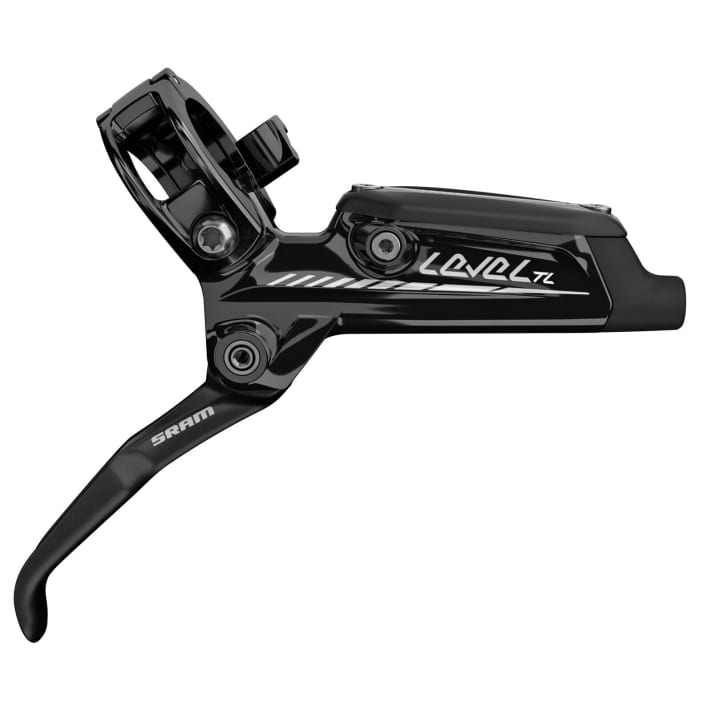

On the Sram Level TL, the caliper housing is in two parts and bolted together.Photo: SRAM On the Sram Level TL, the caliper housing is in two parts and bolted together. The grip width must be adjusted with an Allen key on all brakes in the Level series. The pressure point cannot be adjusted.Photo: SRAM The grip width must be adjusted with an Allen key on all brakes in the Level series. The pressure point cannot be adjusted.
How do you like this article?

The Sram Level series at a glance:

Level Ultimate: 318 grams, 324 euros

Level TLM: 356 grams, 207 euros

Level TL: 370 grams, 111 euros

Level T: 410 grams, 89 euros

Level: 430 grams, 69 euros


Model name explanation
TTooled Reach Adjustment
LLightweight Construction
MMonoblock Caliper


Sram Level Ultimate and Level TLM are available now!

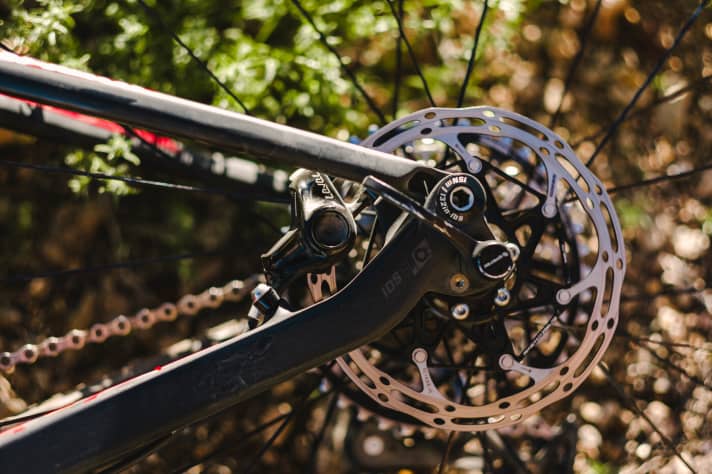

Level offers proven Sram technology, which was also used at the 2015 Downhill World Championships, in a smaller, lighter package.Photo: SRAM Level offers proven Sram technology, which was also used at the 2015 Downhill World Championships, in a smaller, lighter package.
