Univega Summit E 4.0 29" on test

Stephan Ottmar

 · 28.09.2016

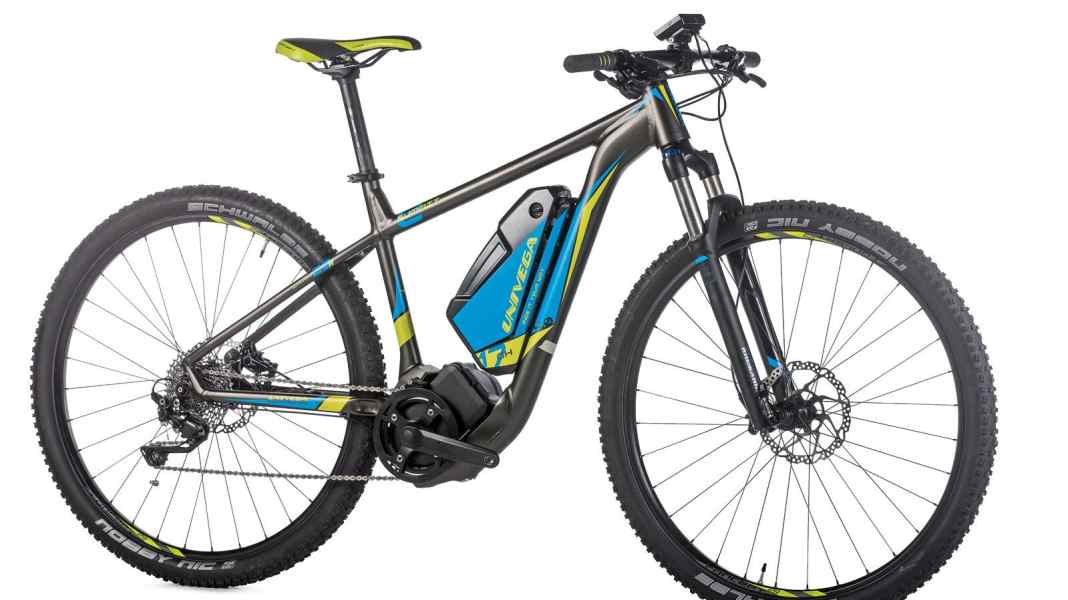

Univega Summit E 4.0 29" on testPhoto: Markus Greber
Univega Summit E 4.0 29" on test
Everything about the Univega wants to go uphill. The Impulse drive pushes slowly but steadily, enabling it to climb over 2000 metres at the highest support level - no one else can get that far.

Problem with the engine control: the long overrun (which cannot be adjusted via the Climb-Assist menu setting). The gearshift interruption should also remain completely deactivated. The drive delivers maximum power in a narrow speed range. The design of the frame puts a lot of weight on the front, which means that the bike remains easy to control even on steep ramps, but the low front has a negative effect on the descent. The 29-inch tyres provide good traction.


Conclusion: the bike for long tours. There is no longer range on the market. However, you have to get used to the somewhat crouched riding position on the Univega.


Reach 2015 hm
Efficiency class A+++


Price 3199 Euro
Info www.univega.com


Drive
Motor/position Impulse 2.0 Performance 250 W/mid-motor
Max. Torque 80 Nm
Battery Lithium-ion, 612 Wh
Switching/translation Front: 1x38; rear: 10-speed Shimano XT (12-36)
Display/size Impulse Centre LCD
Software/stand Impulse/C64.1.083 M19.1299


Equipment
Sizes/frame material 48/52/56 Aluminium
Fork Rock Shox Recon Silver, RL
Seat post Concept EX with quick release
Brake/disc Ø (front/rear) Shimano BR-M 650/ 180/180mm
Impellers Shimano Deore Concept EX rims
Tyres Schwalbe Nobby Nic Performance 2.25


Measured values
Spring travel 1100 mm
Weight/distribution 22 kg/50:50 % (f./h.)
Centre of gravity height 484 mm
Handlebar width 720 mm
Reach/Stack 430/624 mm
BB offset/Q factor -64 mm/204 mm

How do you like this article?


EMTB judgement GOOD² 169 points

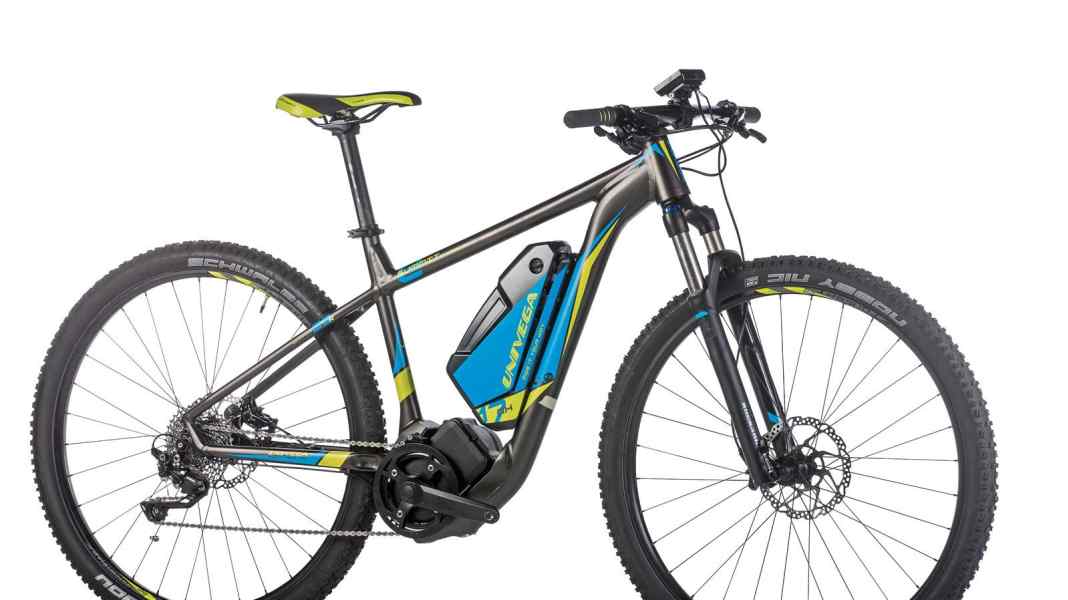

  Univega Summit E 4.0 - 3199 EuroPhoto: Markus Greber Univega Summit E 4.0 - 3199 Euro  Univega Summit E 4.0 - 3199 EuroPhoto: Markus Greber Univega Summit E 4.0 - 3199 Euro


1) Manufacturer's specification
2) EMTB judgement: super (from 190 points), very good (from 175 points), good (from 160 points), satisfactory (from 145 points), with weaknesses (from 130 points), below inadequate. The judgement reflects the subjective impression of the testers and the results of the range measurement and laboratory tests. It is independent of price.
